Home >> Dodge and Ram >> 2003 >> Durango Base, 5.9 Z, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostics >> Diagnostic Information & Procedures >> Airbag >> Symptom: No Cluster Message >> Diagnostic Procedures

Diagnostic Procedures

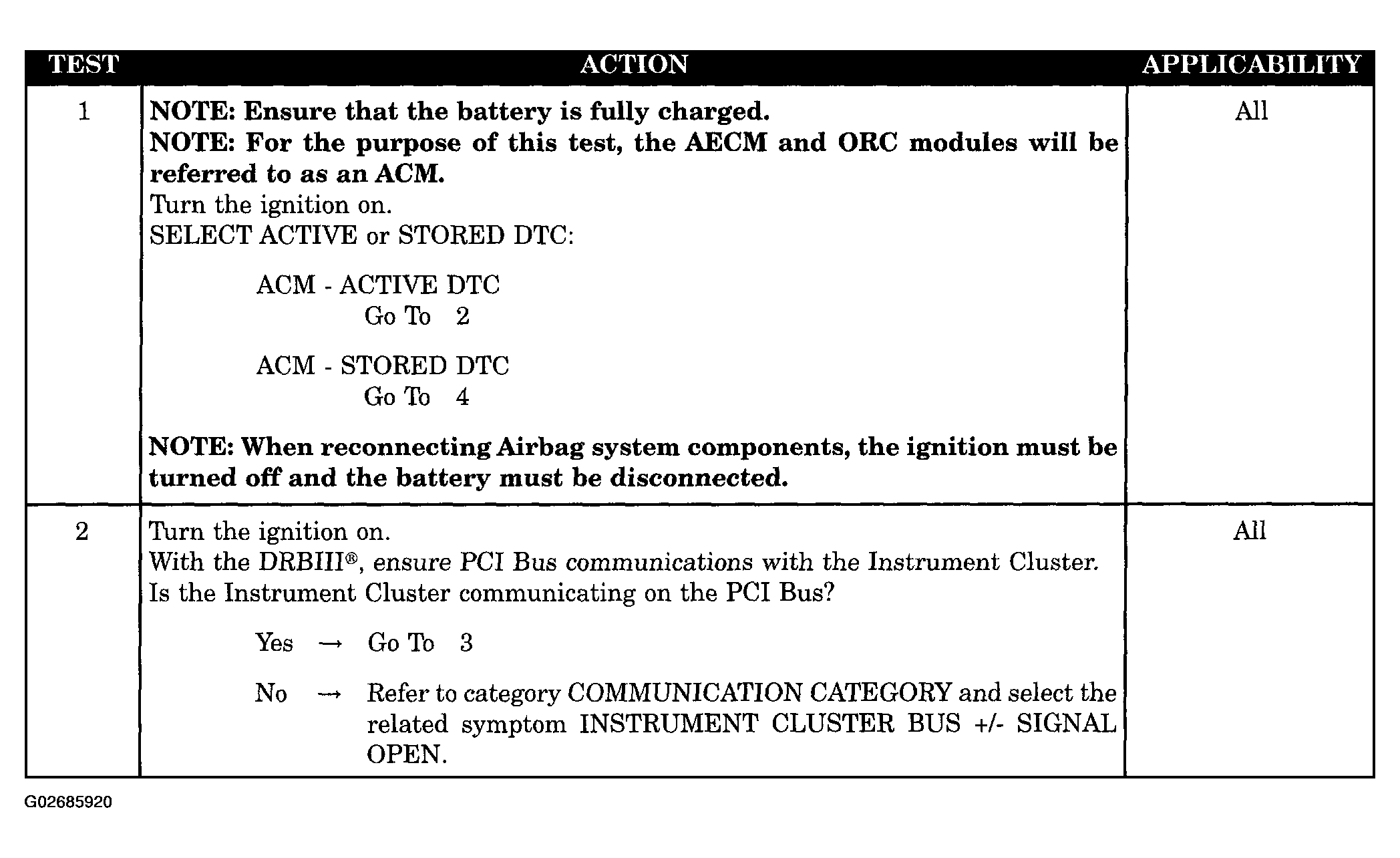

Fig 1: No Cluster Message Diagnostic Procedure (1 Of 2)

G02685920

Courtesy of DAIMLERCHRYSLER CORP.

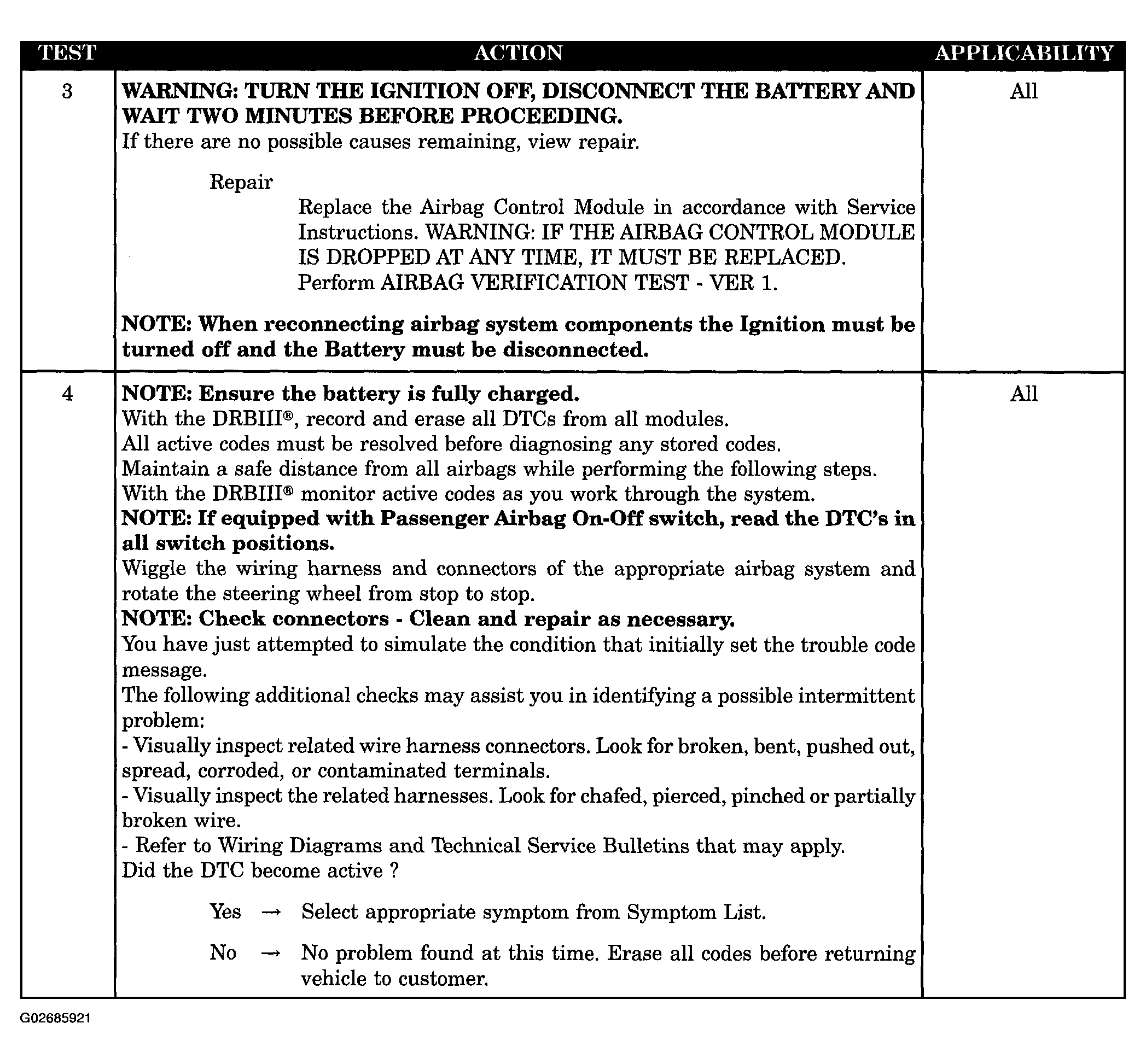

Fig 2: No Cluster Message Diagnostic Procedure (2 Of 2)

G02685921

Courtesy of DAIMLERCHRYSLER CORP.
