Diagnostic Procedures

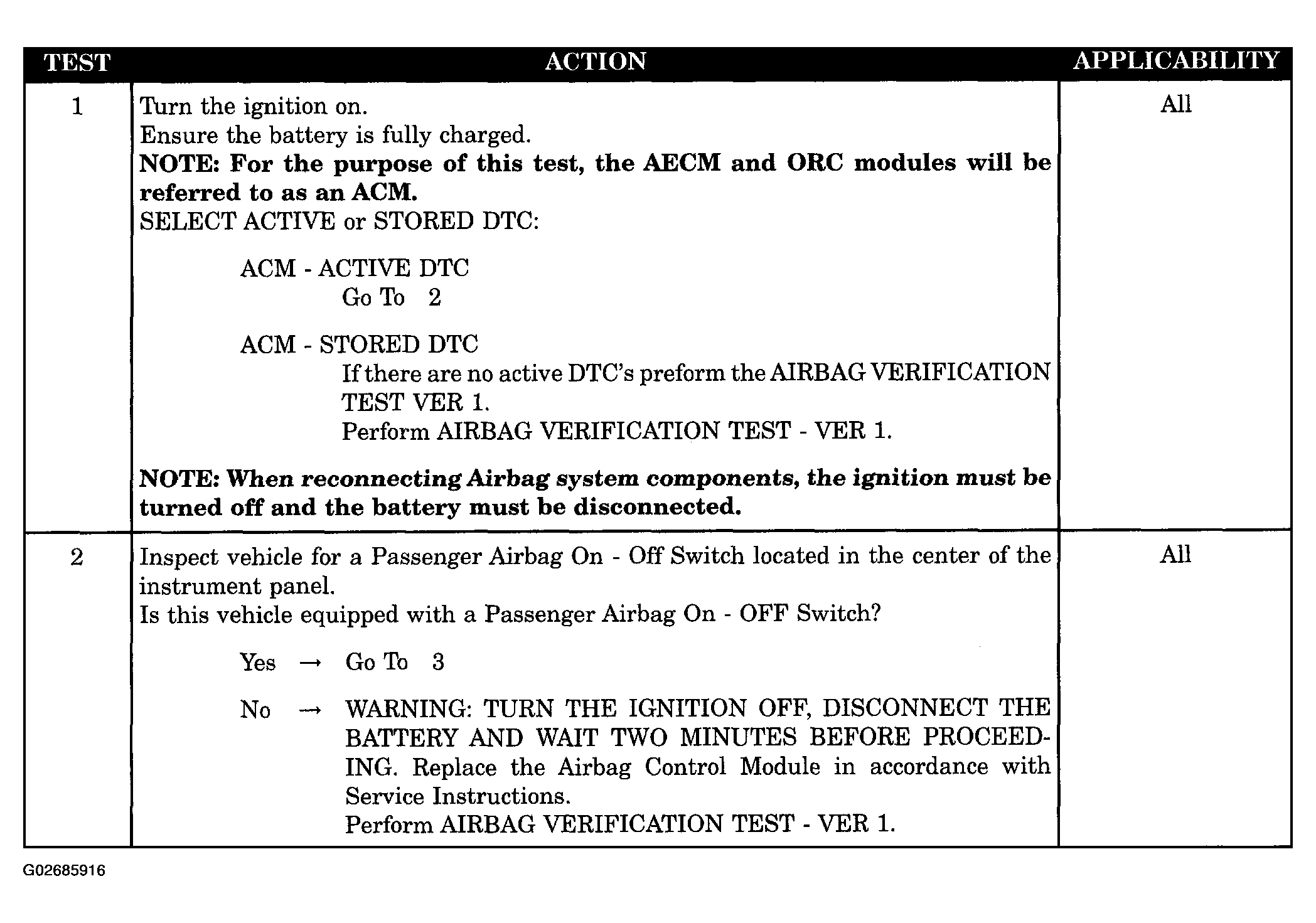

Fig 1: Module Not Configured For PAB Off Switch Diagnostic Procedure (1 Of 2)
G02685916Courtesy of DAIMLERCHRYSLER CORP.

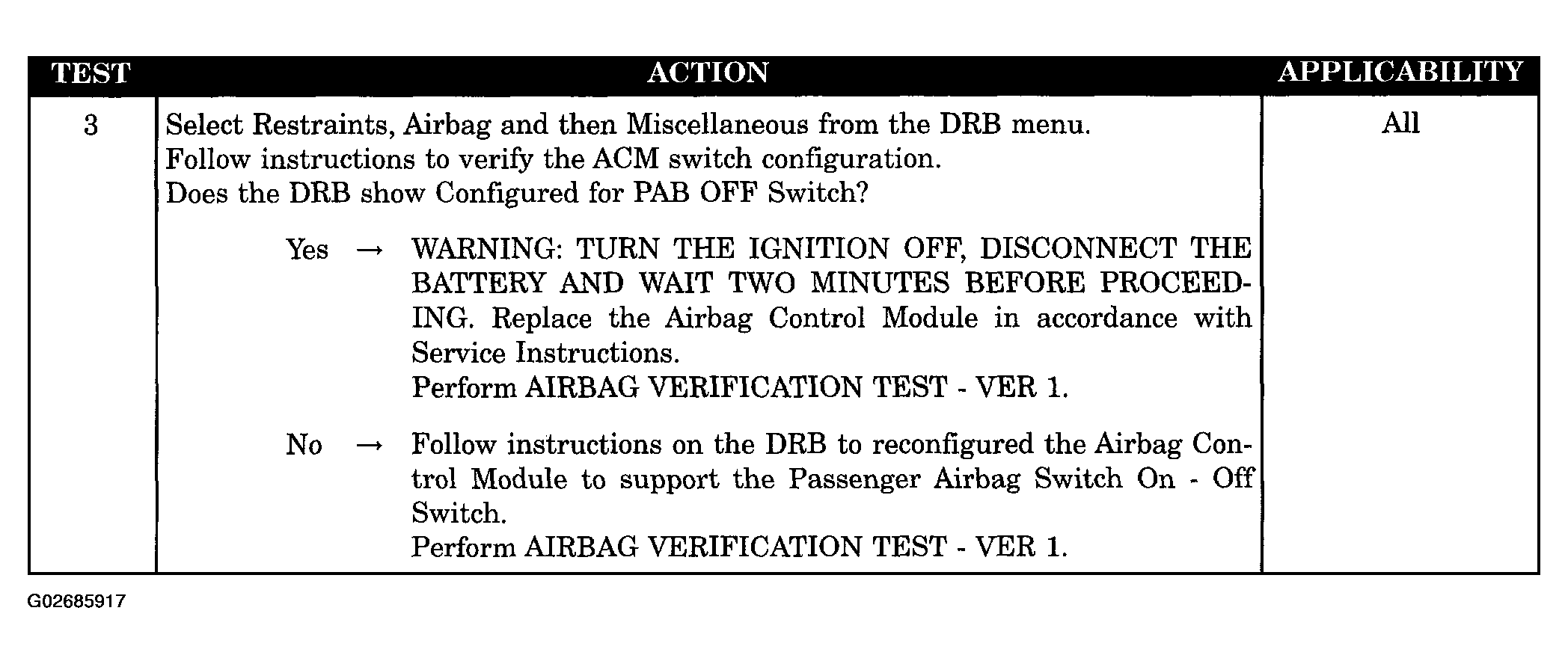

Fig 2: Module Not Configured For PAB Off Switch Diagnostic Procedure (2 Of 2)
G02685917Courtesy of DAIMLERCHRYSLER CORP.
