Diagnostic Procedures

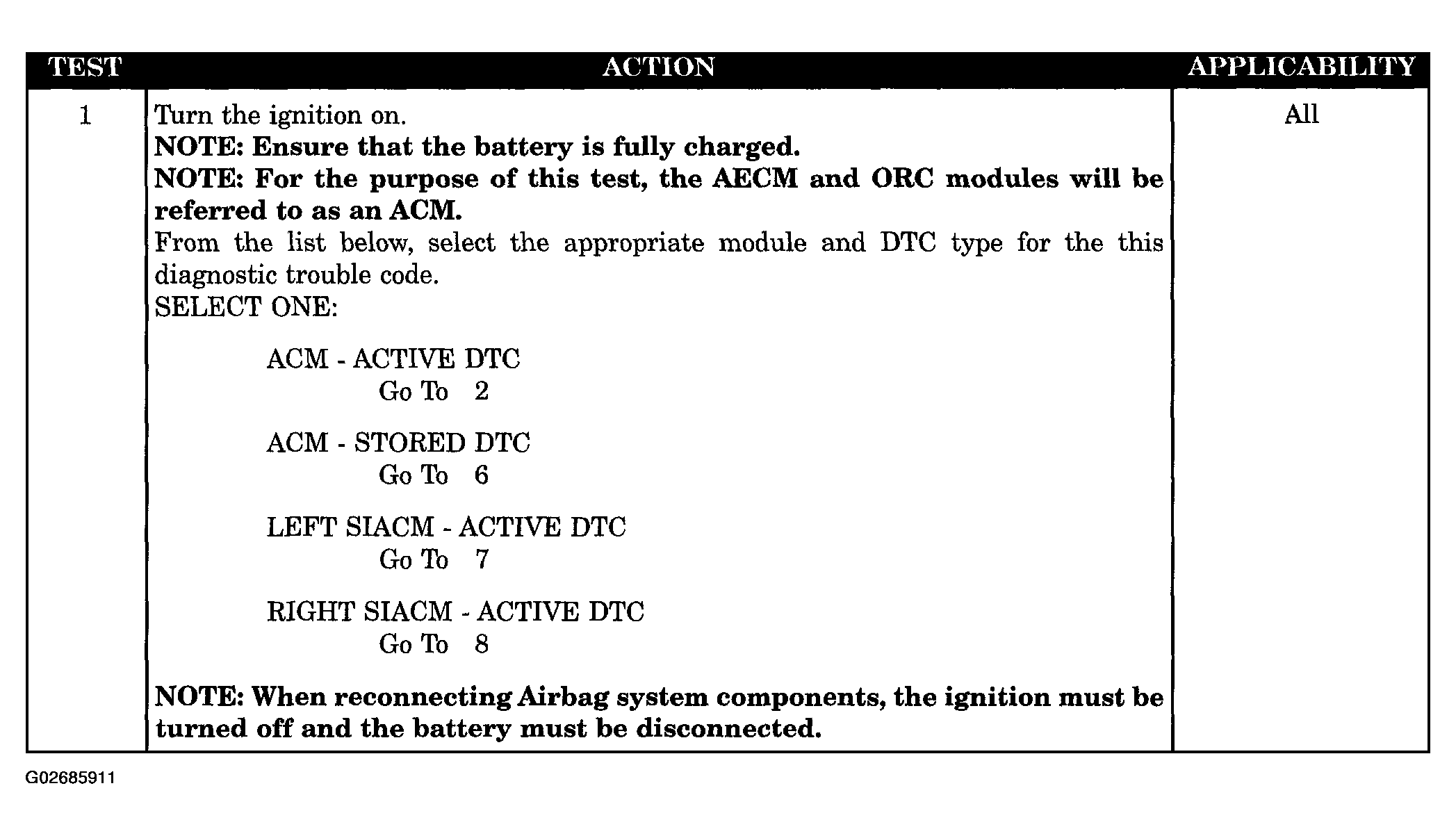

Fig 1: Loss Of Ignition Run-Start Diagnostic Procedure (1 Of 3)
G02685911Courtesy of DAIMLERCHRYSLER CORP.

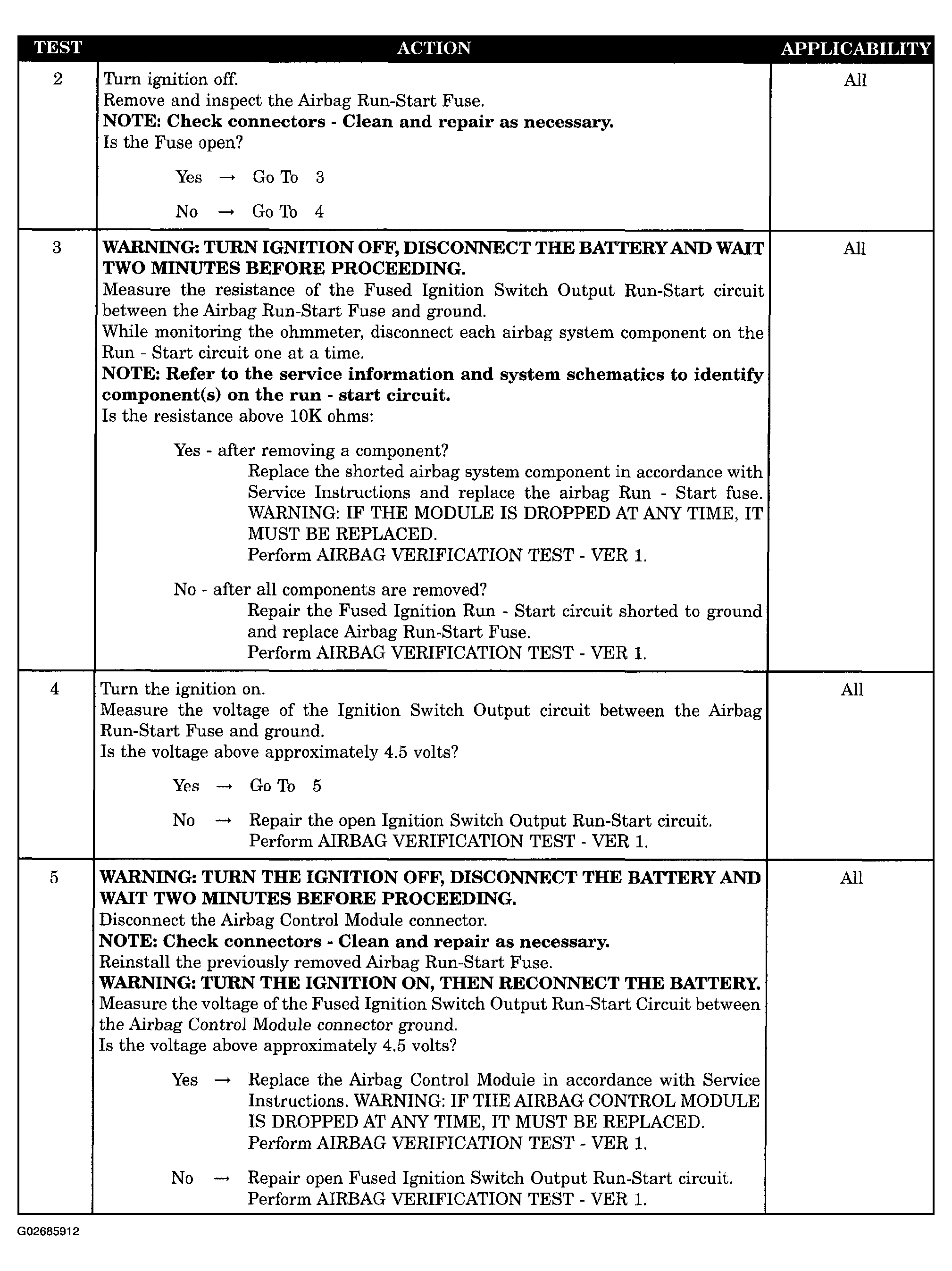

Fig 2: Loss Of Ignition Run-Start Diagnostic Procedure (2 Of 3)
G02685912Courtesy of DAIMLERCHRYSLER CORP.

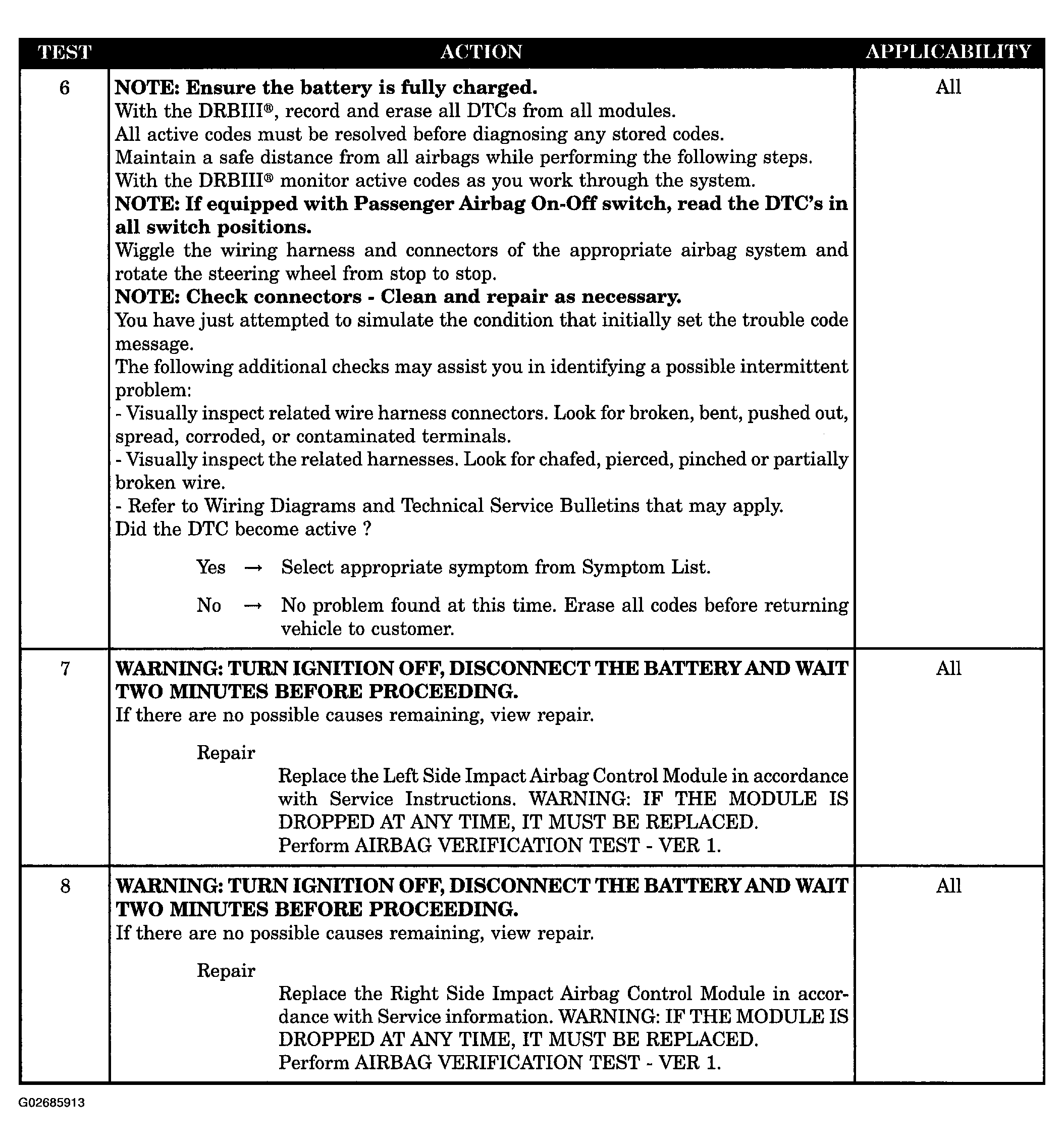

Fig 3: Loss Of Ignition Run-Start Diagnostic Procedure (3 Of 3)
G02685913Courtesy of DAIMLERCHRYSLER CORP.
