Diagnostic Procedures

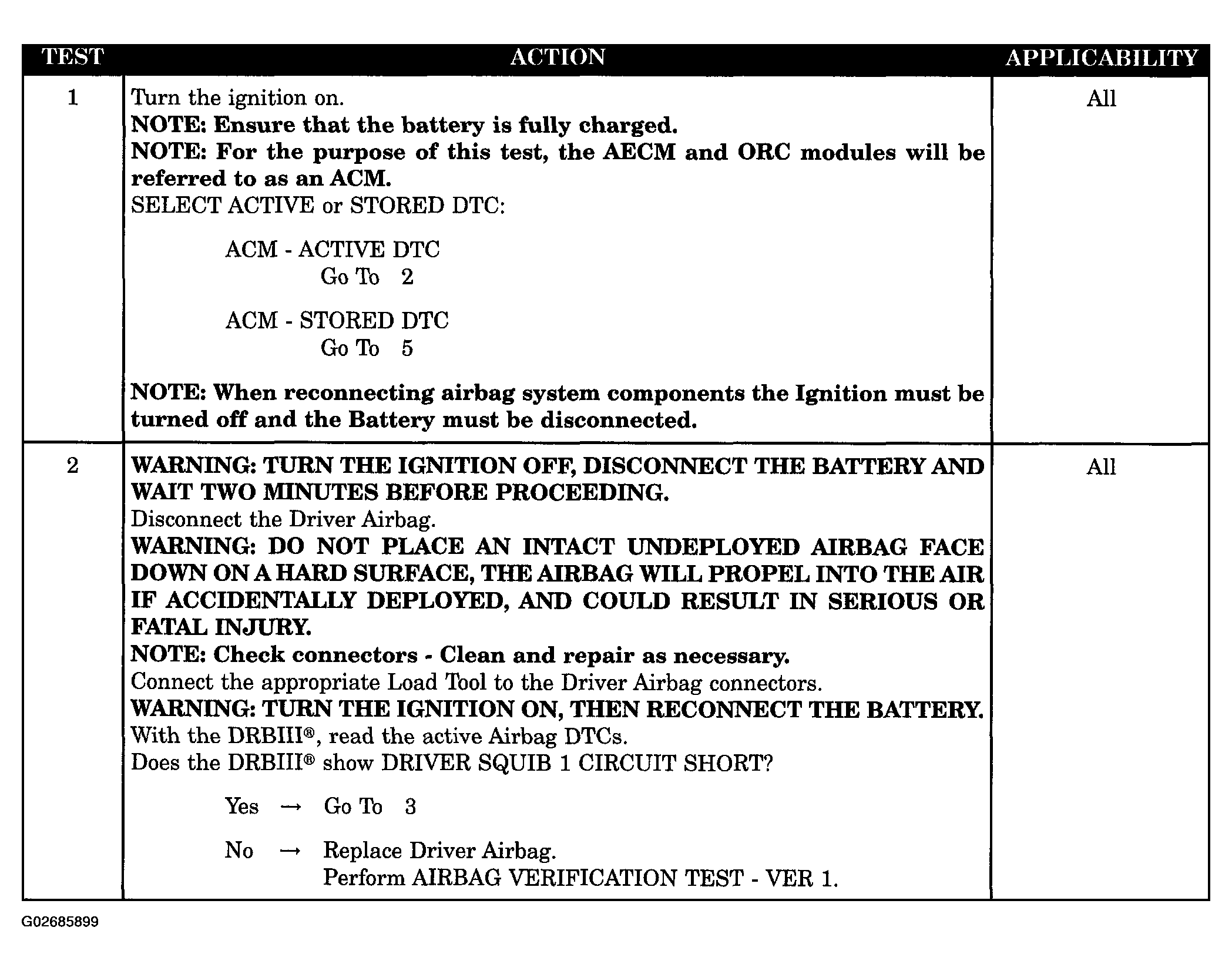

Fig 1: Driver Squib 1 Circuit Short Diagnostic Procedure (1 Of 2)
G02685899Courtesy of DAIMLERCHRYSLER CORP.

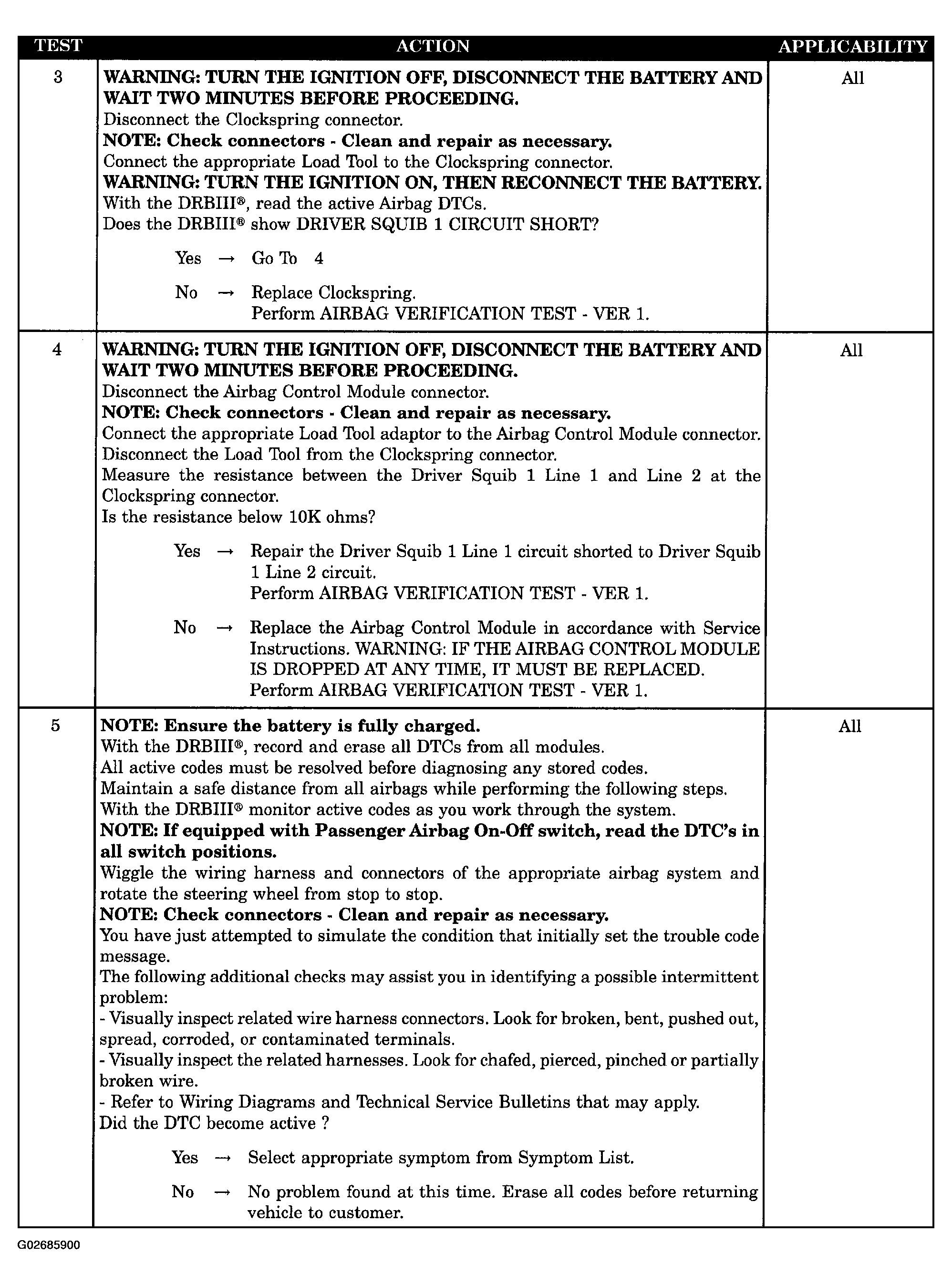

Fig 2: Driver Squib 1 Circuit Short Diagnostic Procedure (2 Of 2)
G02685900Courtesy of DAIMLERCHRYSLER CORP.
