Diagnostic Procedures

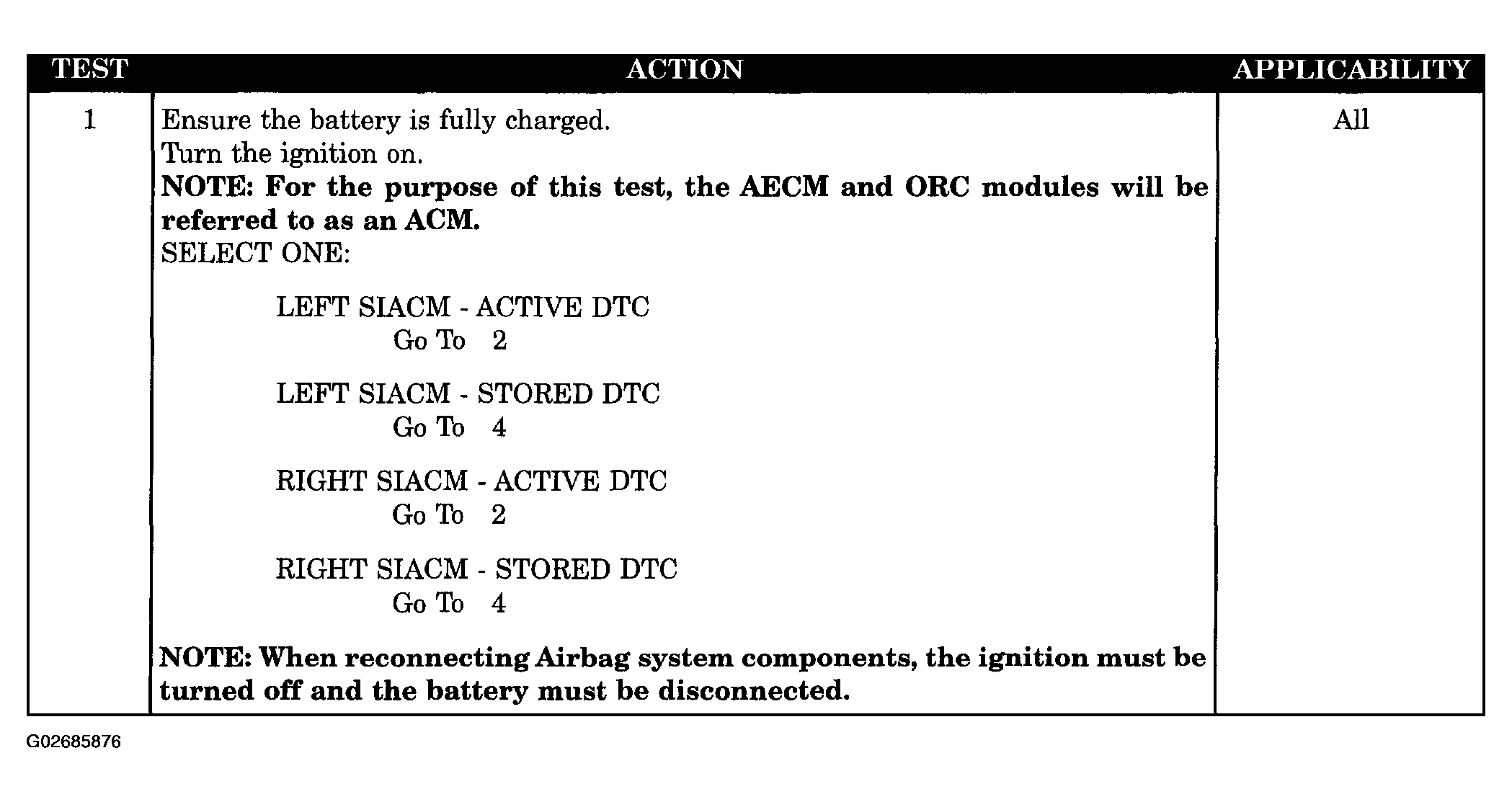

Fig 1: Curtain Squib Circuit Open Diagnostic Procedure (1 Of 3)
G02685876Courtesy of DAIMLERCHRYSLER CORP.

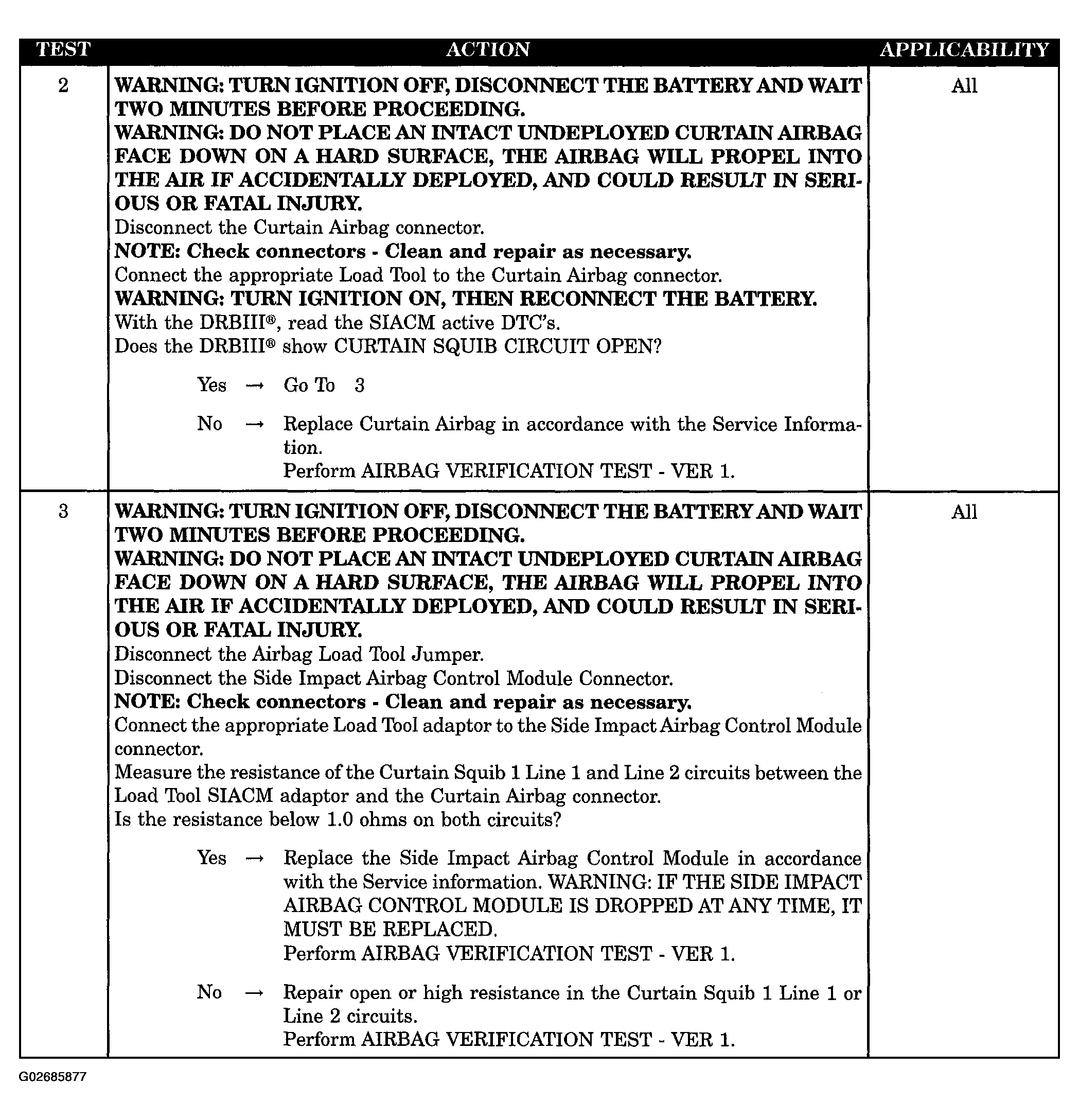

Fig 2: Curtain Squib Circuit Open Diagnostic Procedure (2 Of 3)
G02685877Courtesy of DAIMLERCHRYSLER CORP.

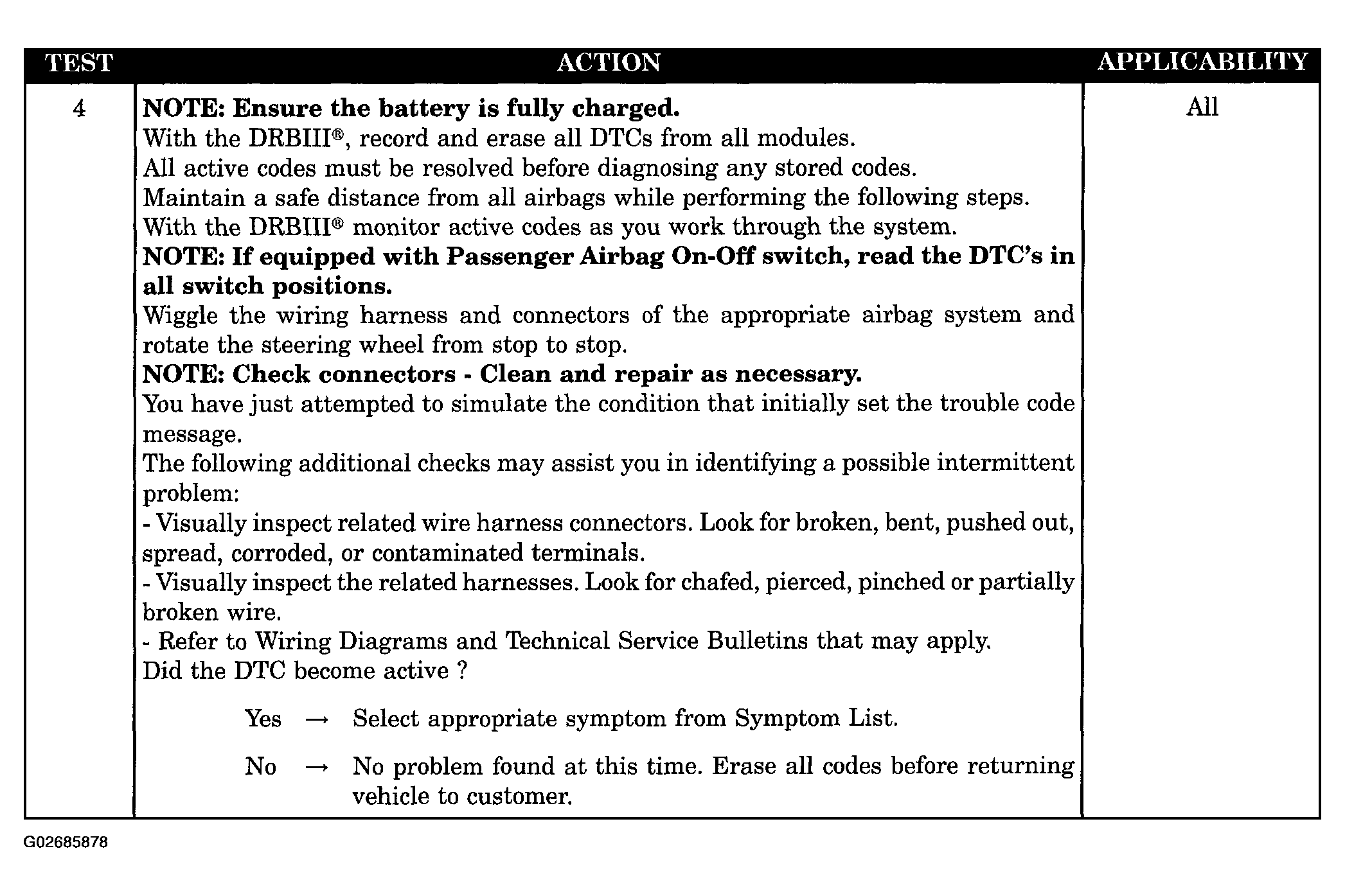

Fig 3: Curtain Squib Circuit Open Diagnostic Procedure (3 Of 3)
G02685878Courtesy of DAIMLERCHRYSLER CORP.
