Diagnostic Procedures

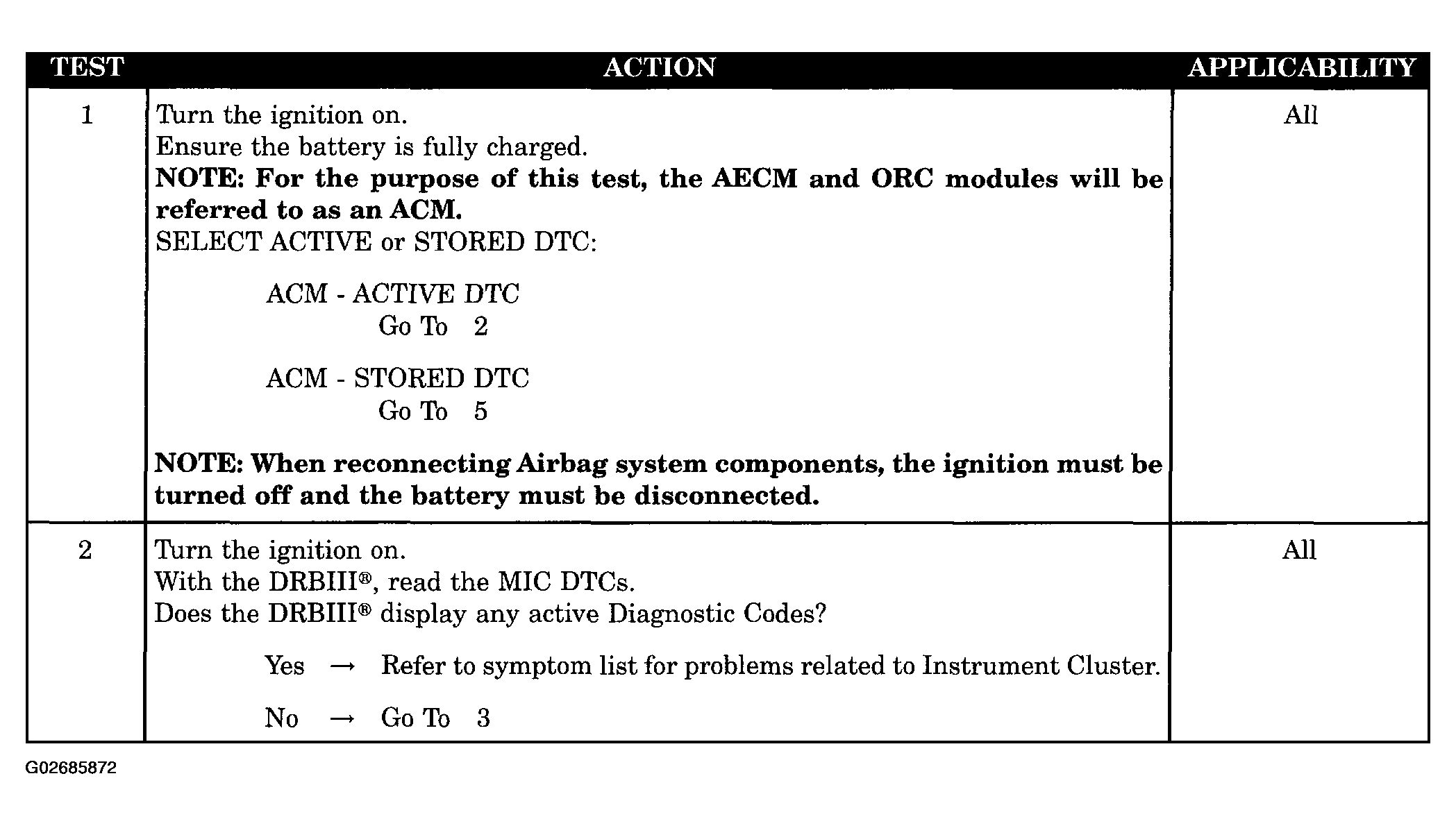

Fig 1: Cluster Message Mismatch Diagnostic Procedure (1 Of 2)
G02685872Courtesy of DAIMLERCHRYSLER CORP.

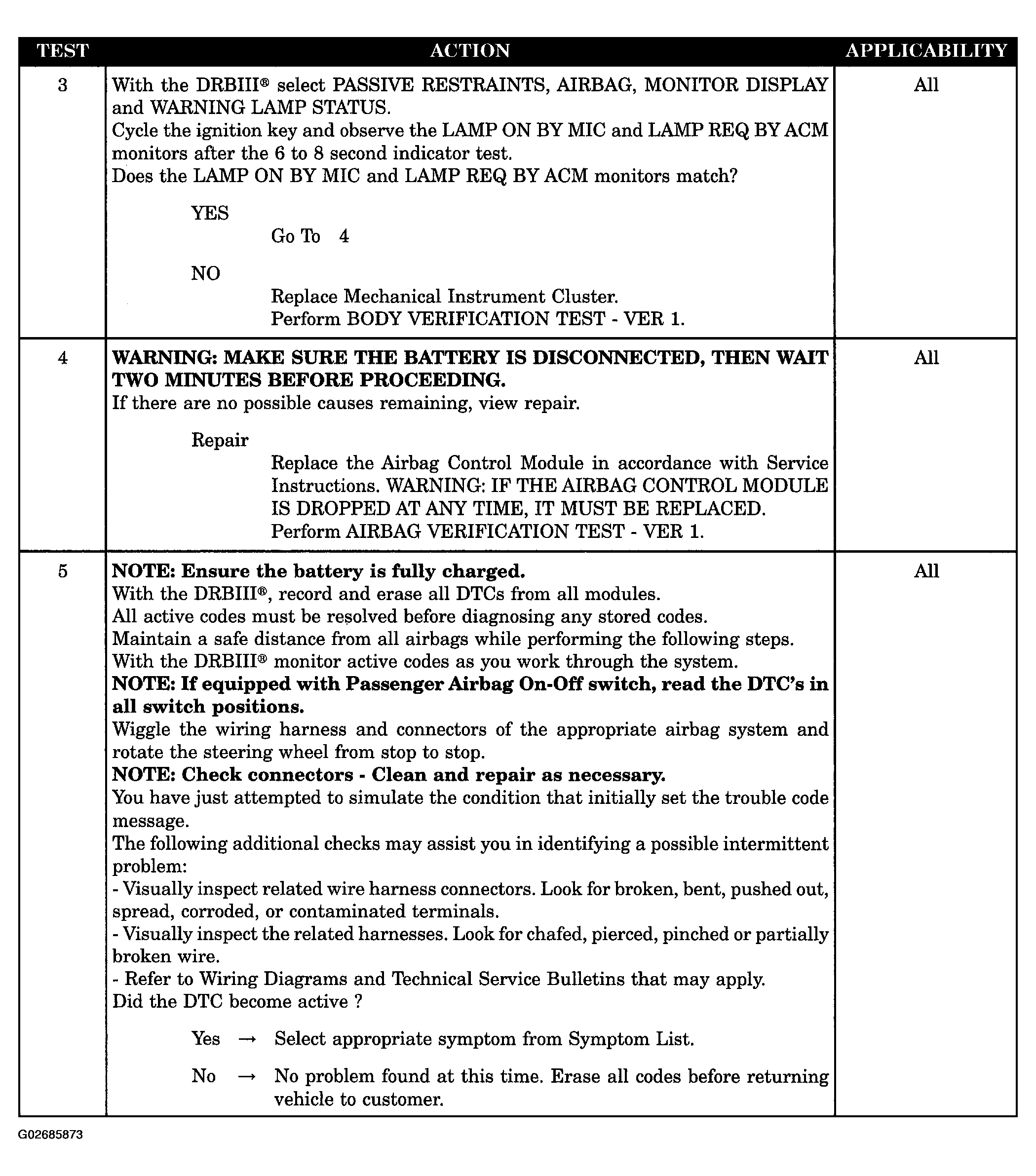

Fig 2: Cluster Message Mismatch Diagnostic Procedure (2 Of 2)
G02685873Courtesy of DAIMLERCHRYSLER CORP.
