Tail Lamp: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Release the liftgate latch and open the liftgate.
  3. Remove the screws attaching the tail lamp to the liftgate opening.
  4. Separate the inner end of the lamp from the quarter panel.
  5. Disengage the hook holding the outer end of the lamp to the quarter panel opening.
  6. Separate the lamp from the quarter panel.
  7. Rotate the lamp socket counterclockwise one quarter turn and remove the socket from the lamp.

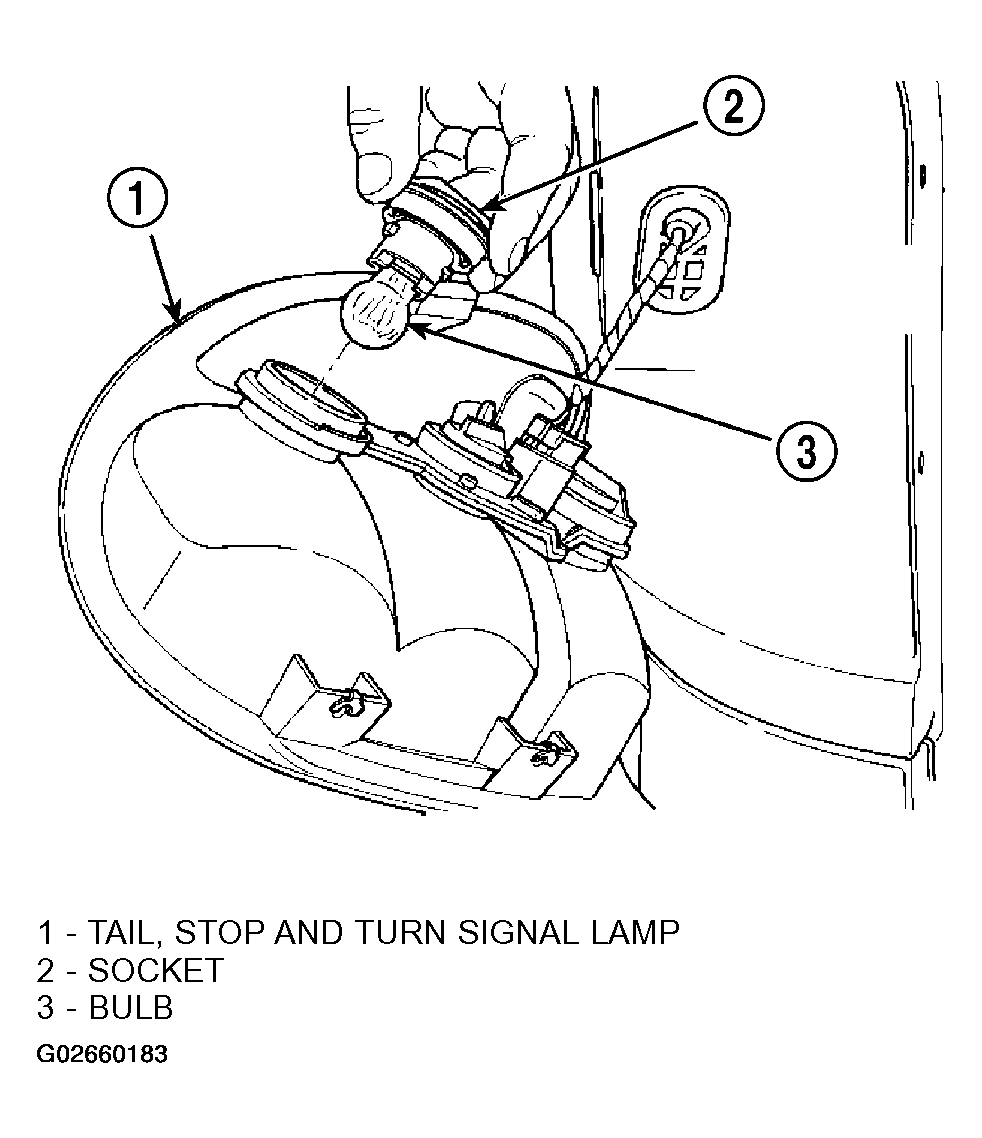

    Fig 1: Removing Tail, Brake, Turn Signal And Back-Up Lamp Bulb
    G02660183Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove the bulb from the socket.
    Fig 2: Removing Bulb From Socket
    G02660184Courtesy of DAIMLERCHRYSLER CORP.
