Tail Lamp: Installation

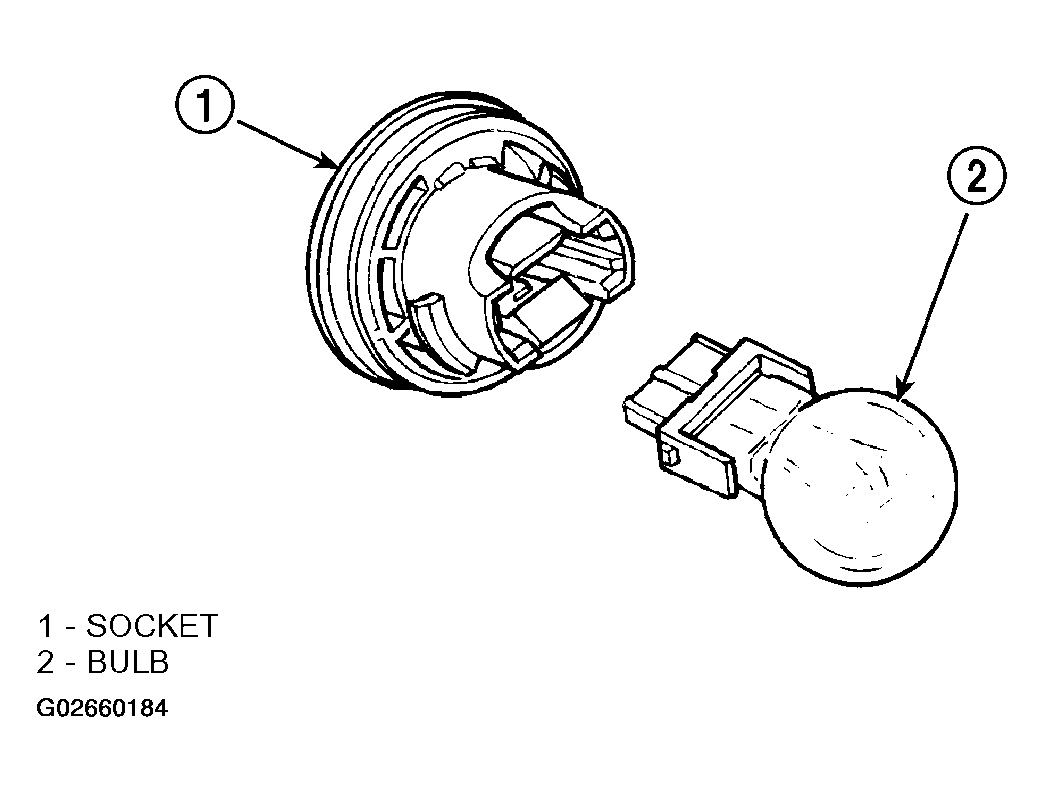

  1. Insert the bulb into the socket (Figure ).
  2. Insert the socket into the back of the lamp.
  3. Rotate the lamp socket clockwise one quarter turn.
  4. Engage the hook to hold the outer end of the lamp to the quarter panel opening.
  5. Place the lamp in position on the quarter panel.
  6. Install the screws attaching the lamp to the liftgate opening.
  7. Connect battery negative cable.
