Tail Lamp Unit: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Open the liftgate.
  3. Remove the screws attaching the lamp housing to the liftgate opening.

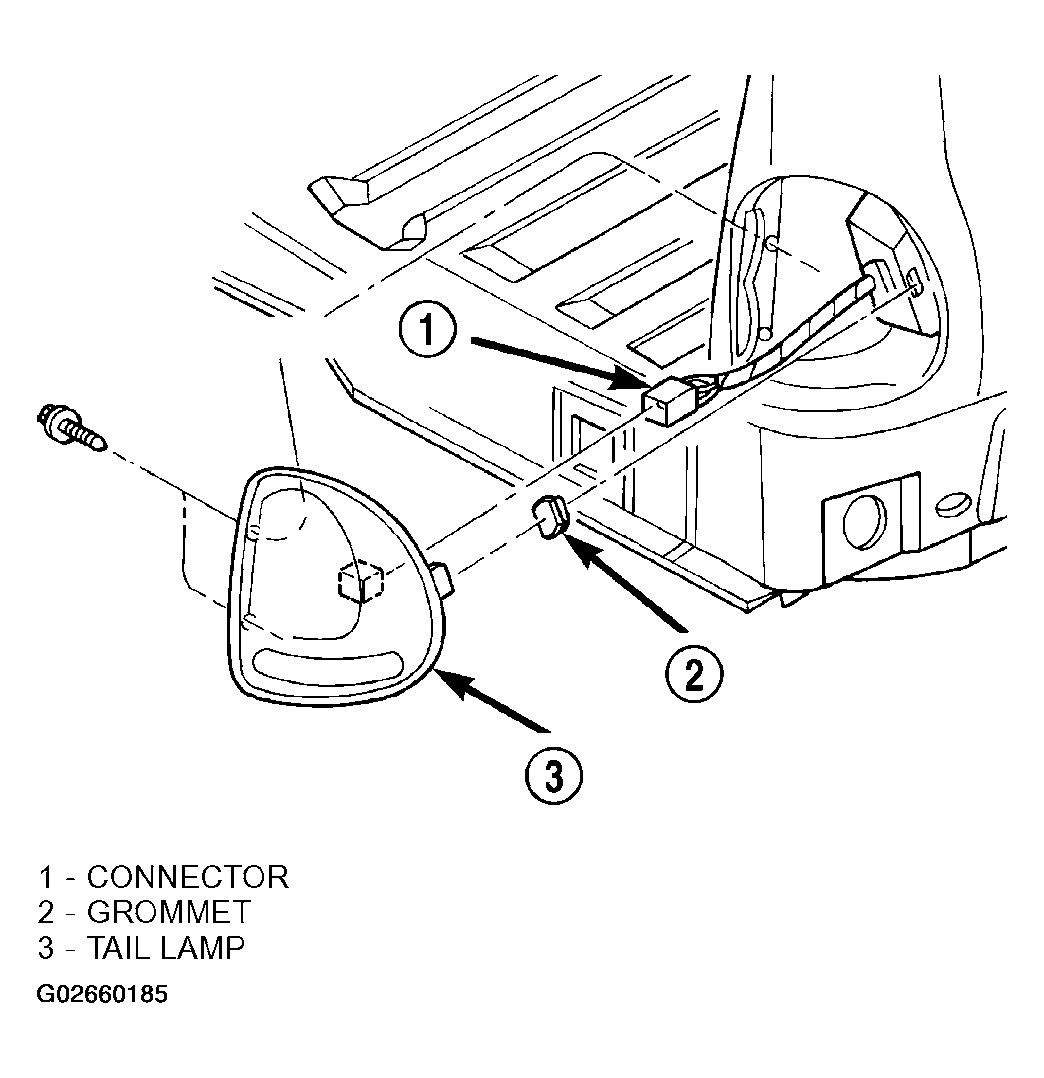

    Fig 1: Removing Tail, Brake, Turn Signal And Back-Up Lamp
    G02660185Courtesy of DAIMLERCHRYSLER CORP.
  4. Separate lamp from quarter panel.
  5. Disengage the positive lock on the wire connector.

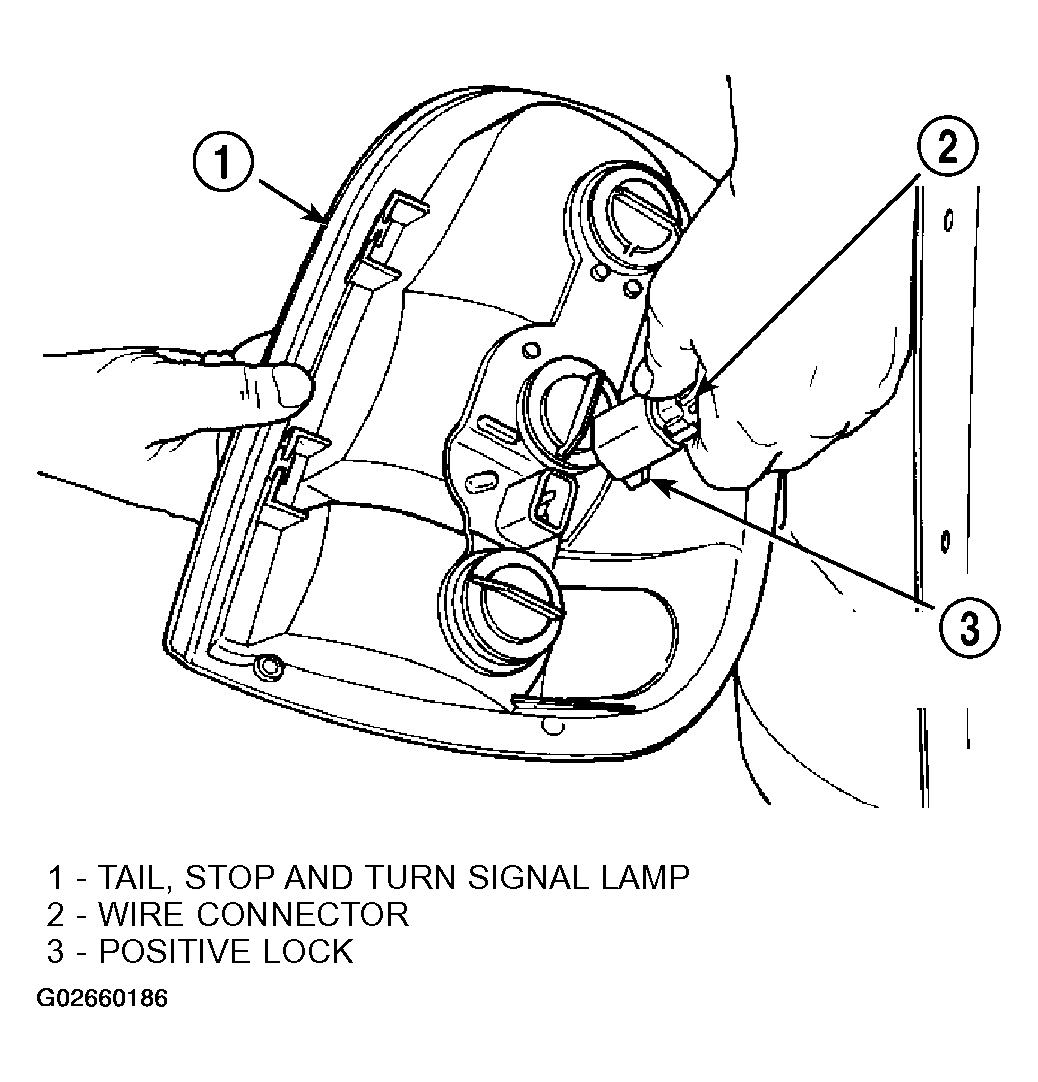

    Fig 2: Disconnecting Tail Lamp Connector
    G02660186Courtesy of DAIMLERCHRYSLER CORP.
  6. Depress the lock tab on the side of the body harness connector.
  7. Disengage the wire connector from tail lamp circuit board.
  8. Separate the tail lamp from the vehicle.
