Park, Turn Signal And Side Marker Lamp Unit: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove torx screw attaching park lamp to headlamp module.

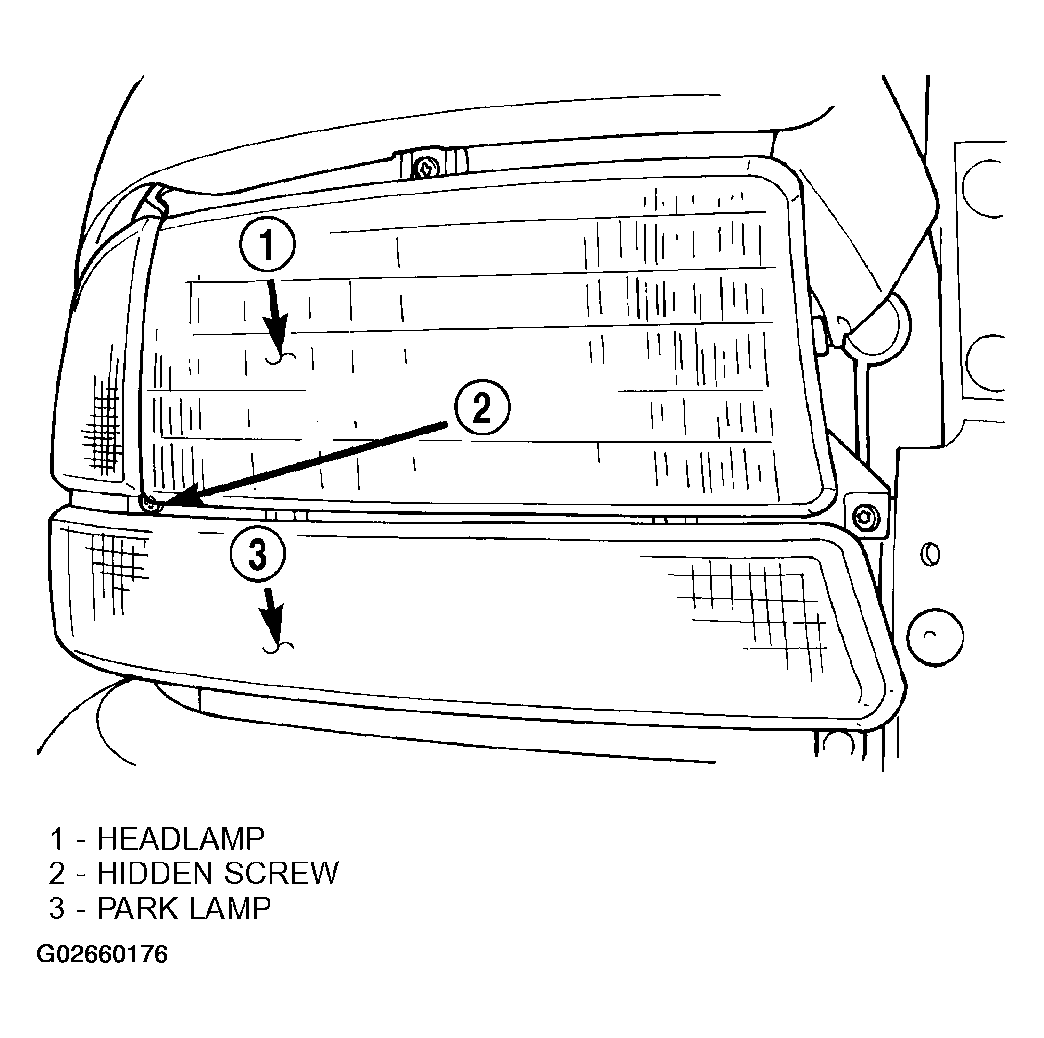

    Fig 1: Removing Park Lamp Screw
    G02660176Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull the park and turn signal lamp outward and separate from headlamp module.
  4. Remove park and turn signal sockets from back of lamp.

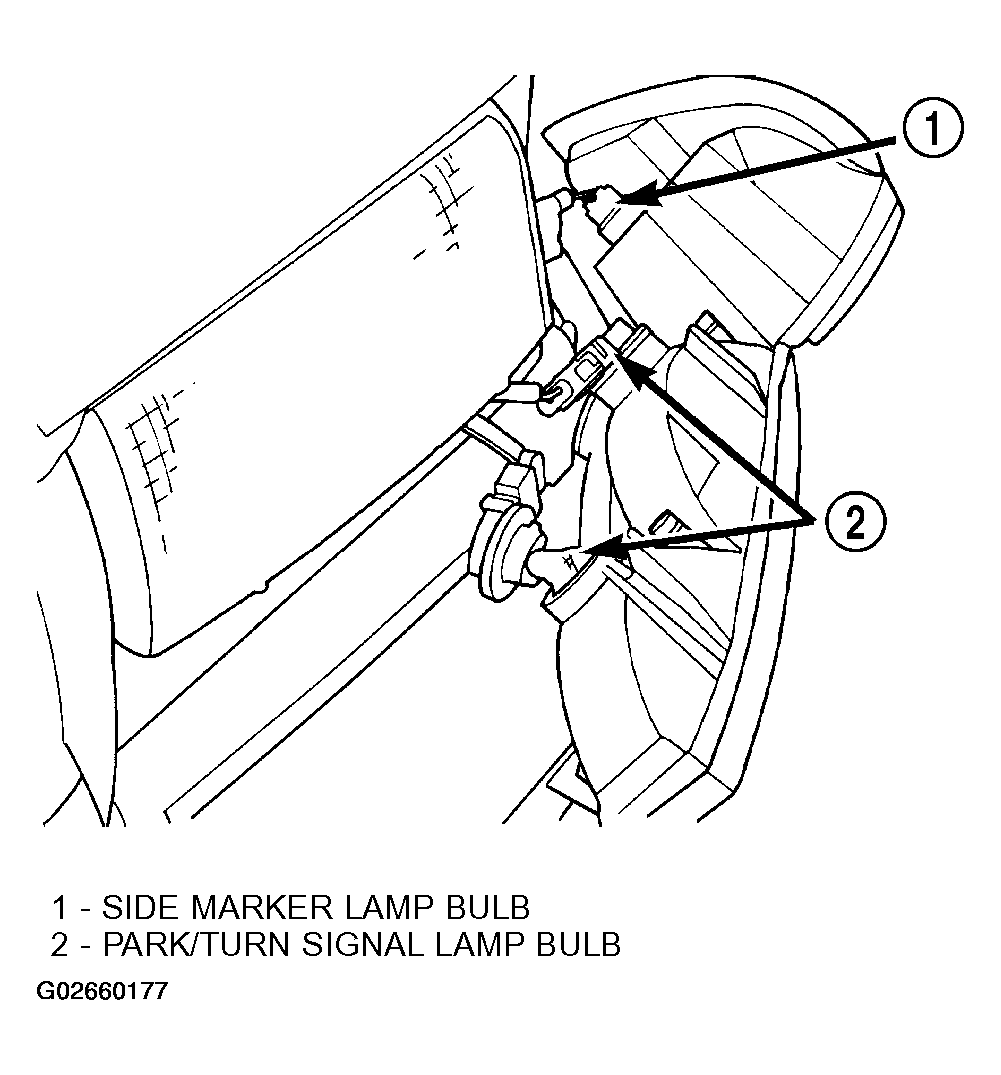

    Fig 2: Removing Park, Turn Signal And Side Marker Lamp
    G02660177Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove side marker socket from back of lamp.
  6. Separate park and turn signal lamp from vehicle.
