Park And Turn Signal Lamp Bulbs: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove park and turn signal lamp.
  3. Rotate bulb socket 1/4 turn counterclockwise and pull turn signal lamp socket from back of lamp.

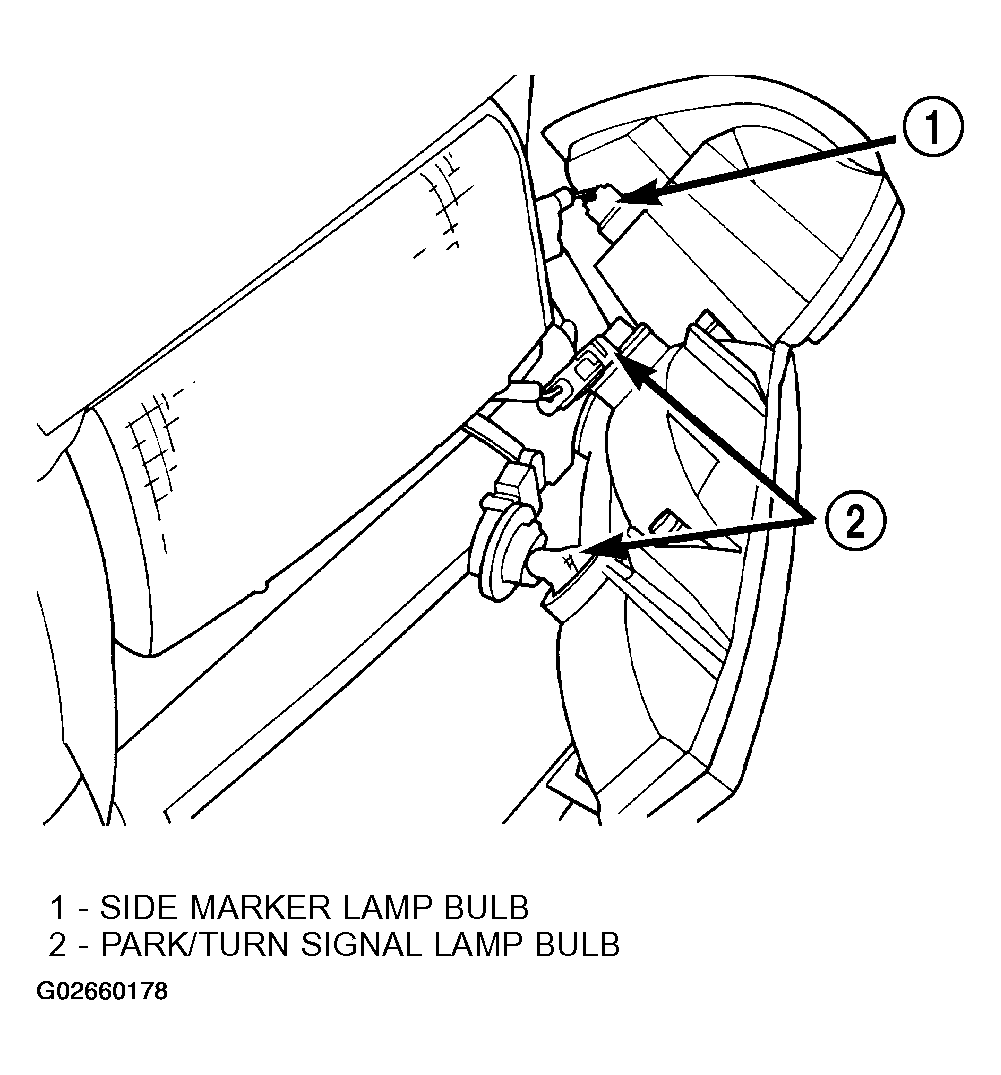

    Fig 1: Removing Park And Turn Signal Lamp Bulb
    G02660178Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull park and turn signal lamp bulb from socket.
