Multi-Function Switch: Description

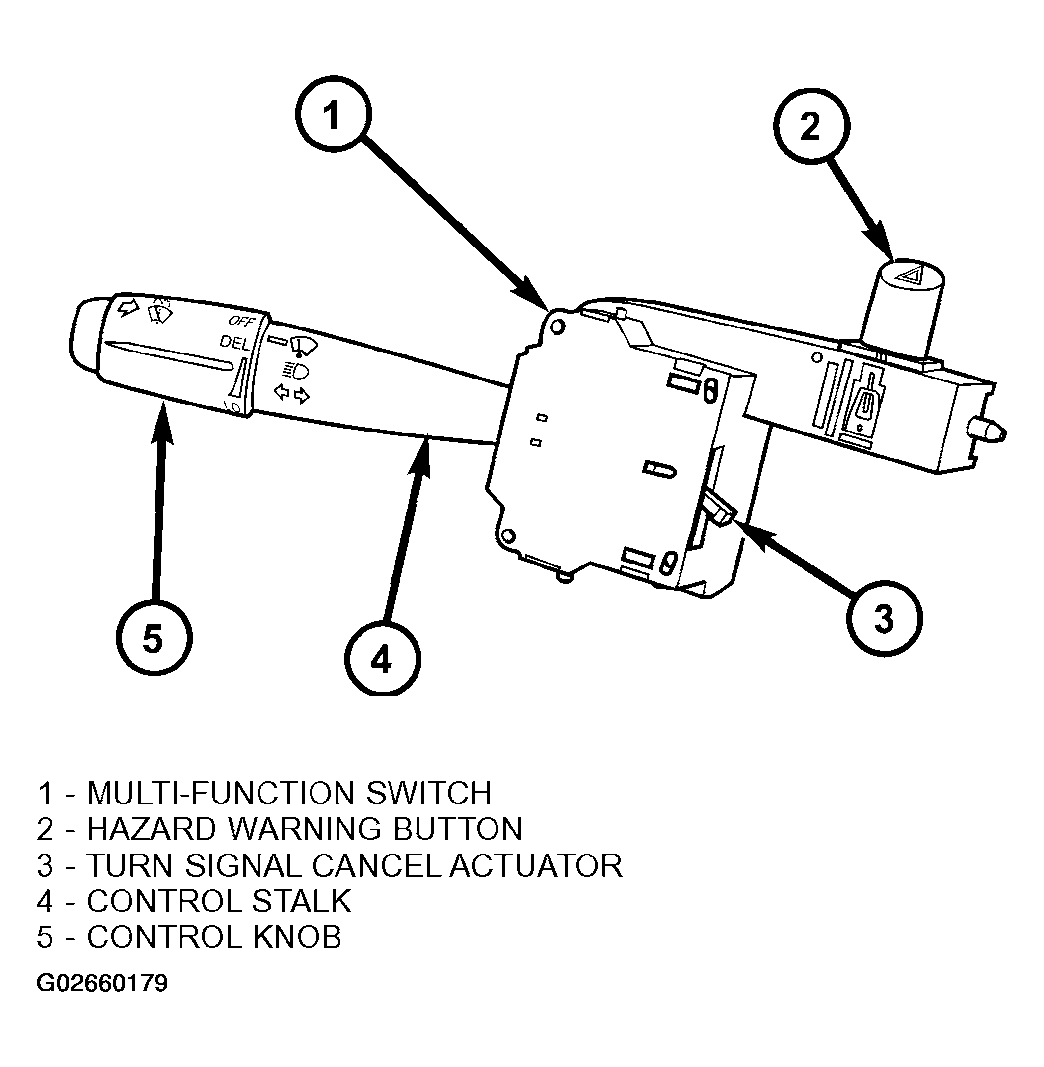

The multi-function switch is secured with screws to the multi-function switch mounting housing on the left side of the steering column. The switch, its mounting provisions, and its electrical connections are all concealed beneath the steering column shrouds.
A single connector connects the switch to the vehicle electrical system.
The multi-function switch supports the following functions and features:
- Continuous Wipe Modes
- Hazard Warning Control
- Headlamp Beam Selection
- Headlamp Optical Horn
- Intermittent Wipe Mode
- Turn Signal Control
- Washer Mode
The multi-function switch cannot be adjusted or repaired. If any function of the switch is faulty, or if the switch is damaged, the entire switch unit must be replaced.
