Fog Lamps

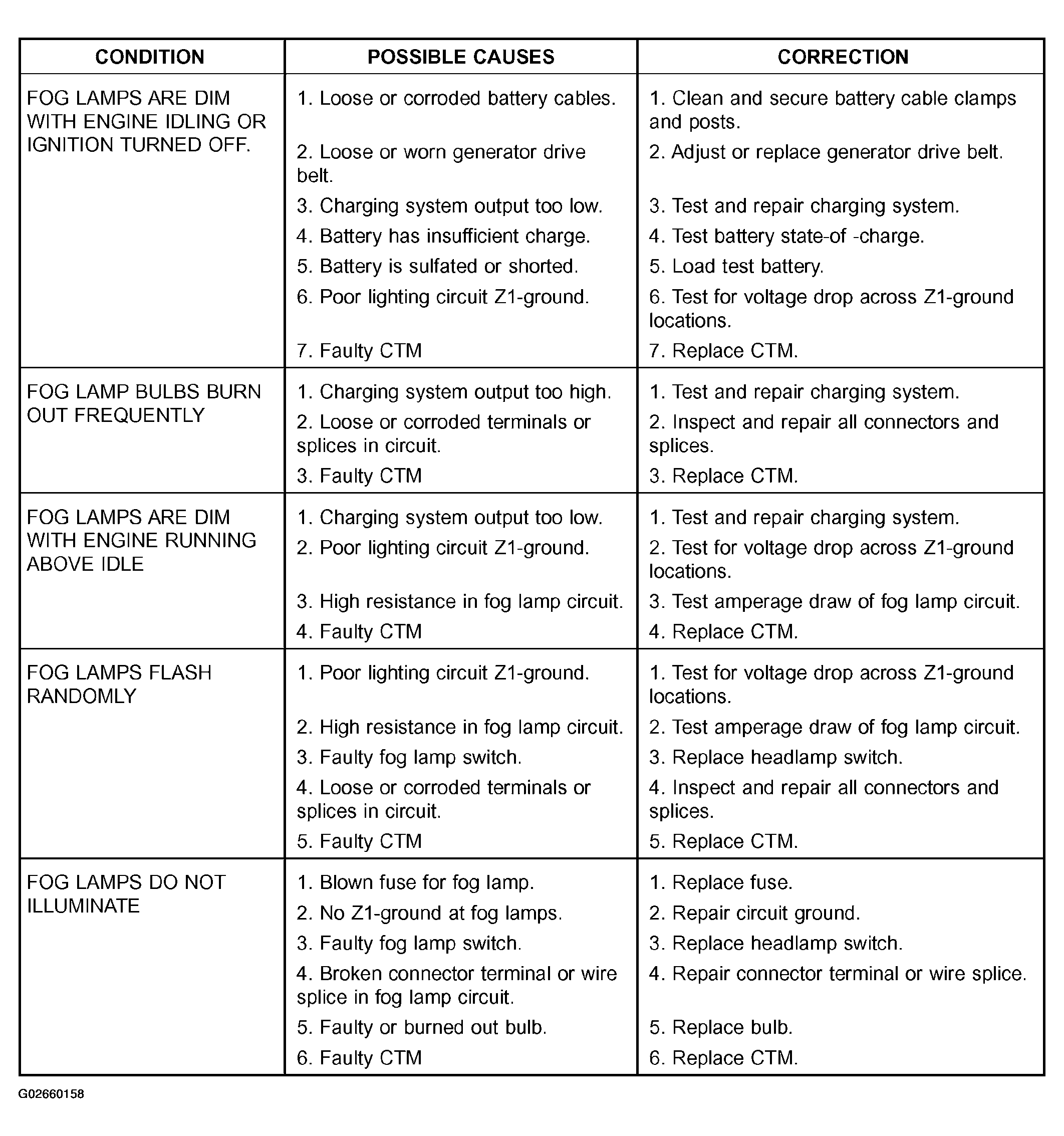

Fig 1: Fog Lamps Diagnosis Chart (1 Of 2)

G02660158

Courtesy of DAIMLERCHRYSLER CORP.

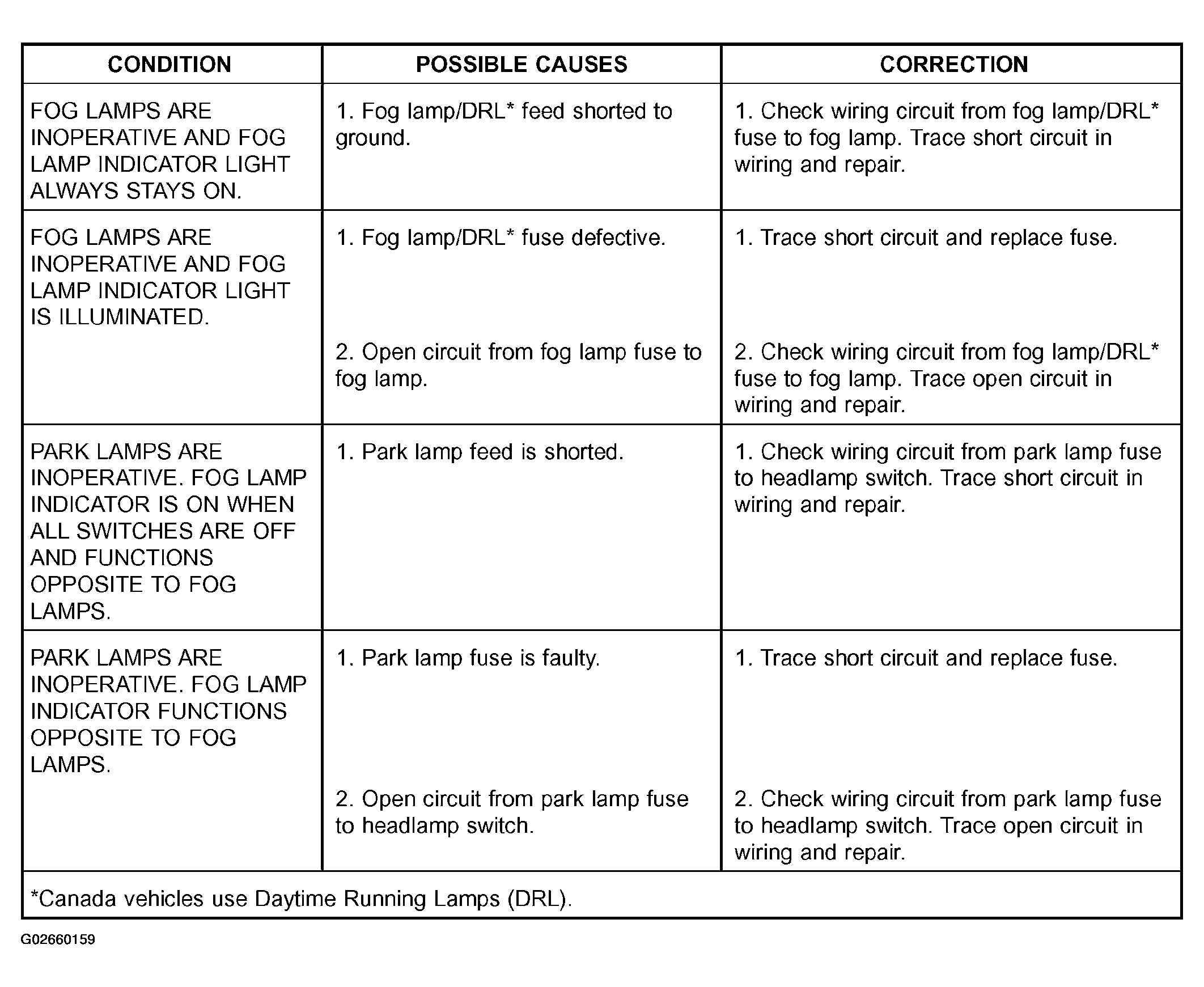

Fig 2: Fog Lamps Diagnosis Chart (2 Of 2)

G02660159

Courtesy of DAIMLERCHRYSLER CORP.
