Headlamp Unit: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the bolts attaching headlamp to the inner fender panel.

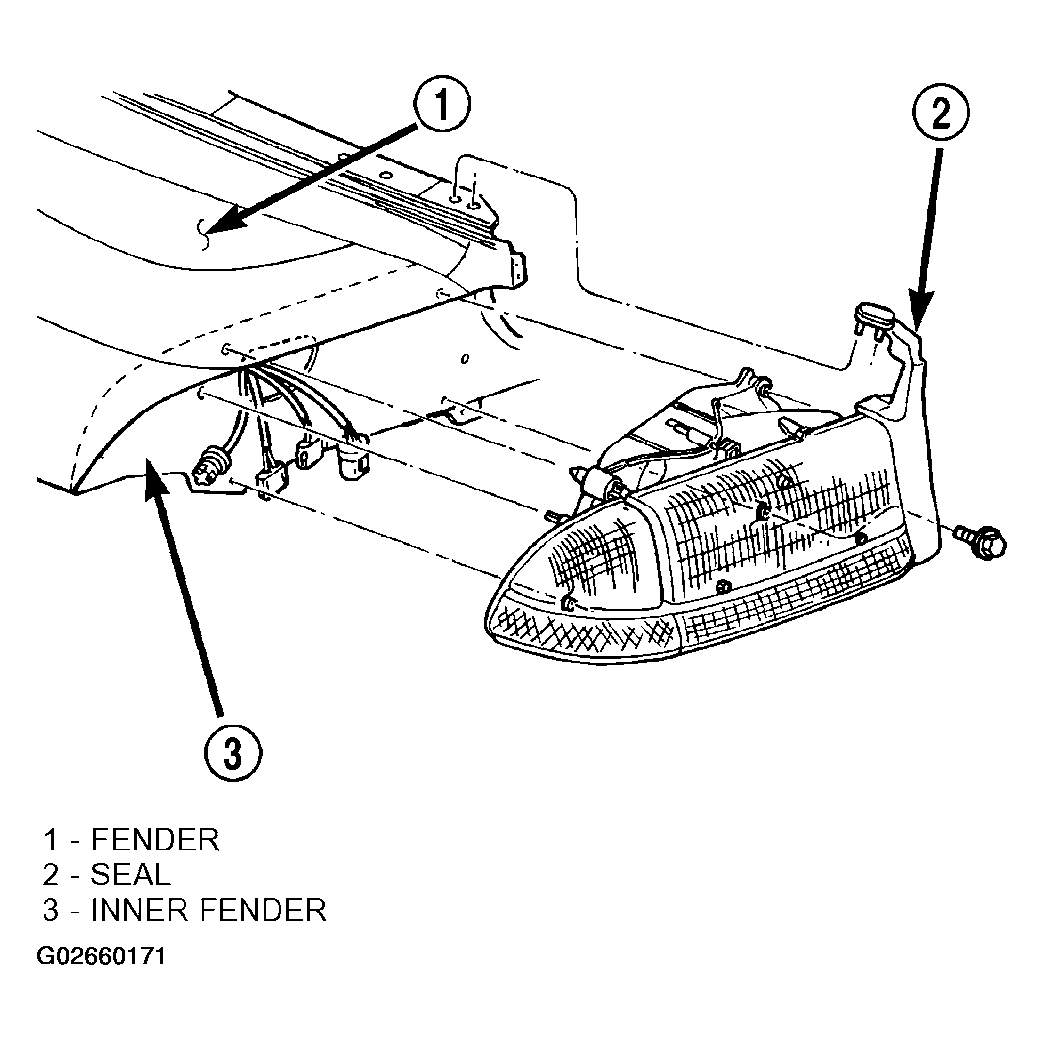

    Fig 1: Removing Headlamp Unit
    G02660171Courtesy of DAIMLERCHRYSLER CORP.
  3. Disengage the headlamp module from the panel.
  4. Disengage the harness connector from the headlamp bulb.
  5. Separate the bulb from the headlamp.
  6. Remove the bulb sockets from the front park/turn signal/side marker lamps
  7. Separate the headlamp module from vehicle.
