Combination Flasher: Installation

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. SEE AIR BAG RESTRAINT SYSTEMS BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

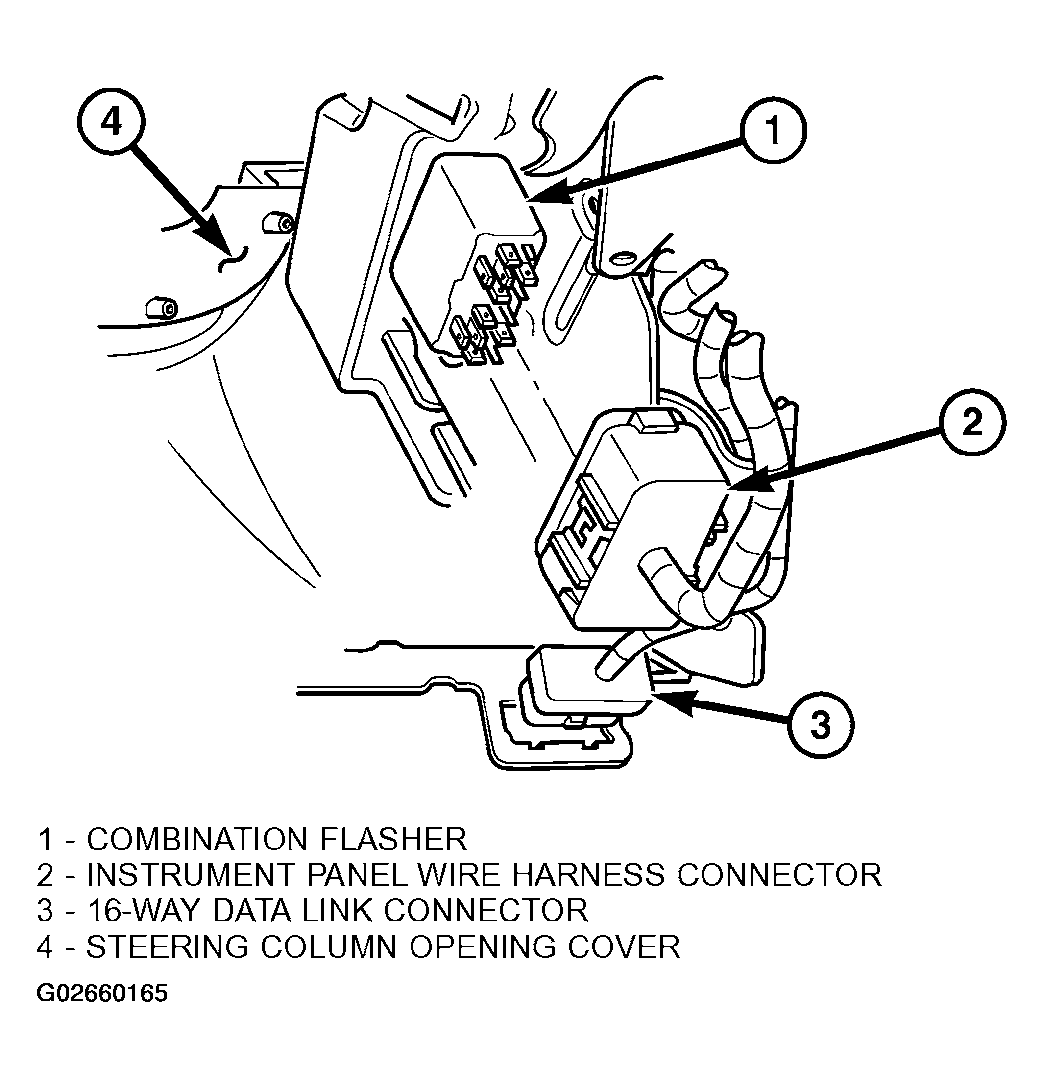

  1. Position the combination flasher to the instrument panel wire harness connector (Figure ).
  2. Using hand pressure, push in firmly on the combination flasher until the terminals are fully seated in the instrument panel wire harness connector.
  3. Align the slot in the combination flasher connector with the mounting tab on the instrument panel armature and install the flasher.
  4. Reconnect the battery negative cable.
