Center High Mounted Stop Lamp Unit (CHMSL): Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the liftgate trim panel.
  3. Remove the CHMSL lamp mounting screws.

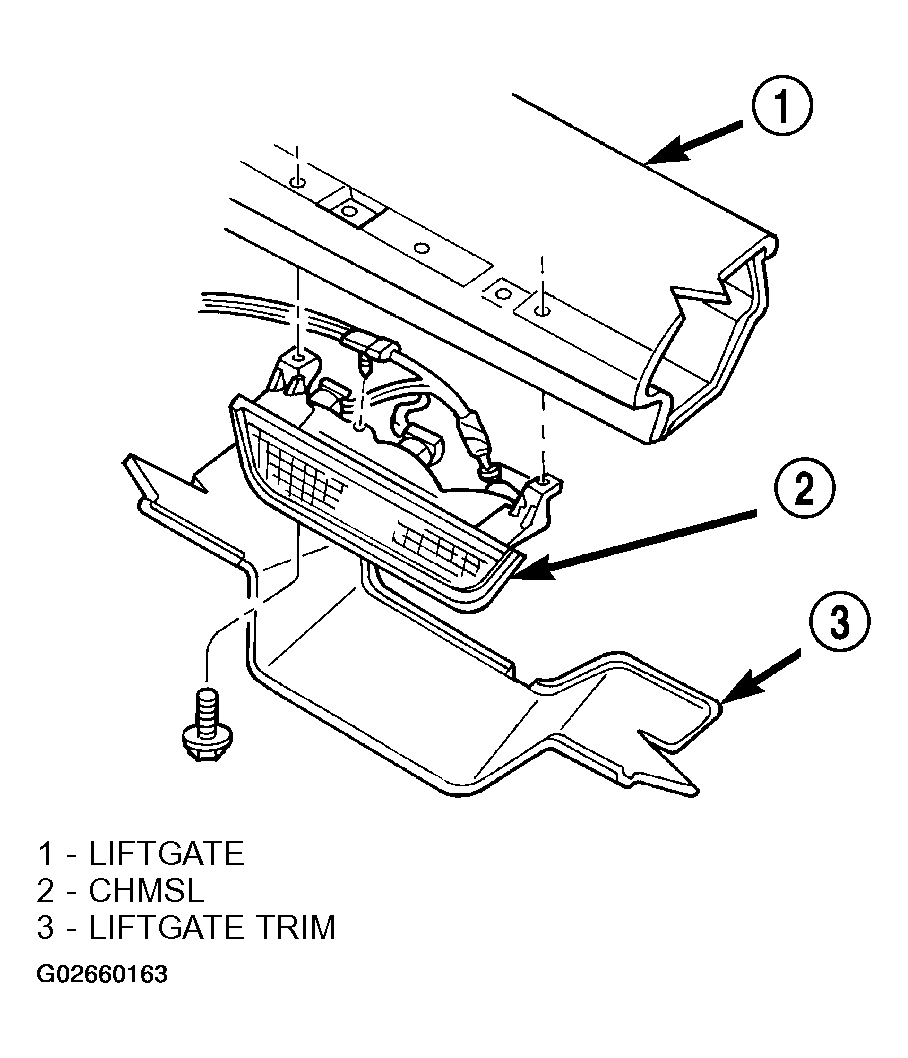

    Fig 1: Removing Center High Mounted Stop Lamp
    G02660163Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the CHMSL lamp.
  5. Turn the bulb sockets 1/4 turn counterclockwise.
  6. Separate the socket from lamp.
