Brake Lamp Switch: Installation

  1. Press and hold the brake pedal down.
  2. Align the tab on the new  switch with the notch in the switch bracket. Then insert the switch in the bracket and turn it clockwise about 30° to lock it in place.
  3. Connect the harness wires to the switch.
  4. Release the brake pedal.

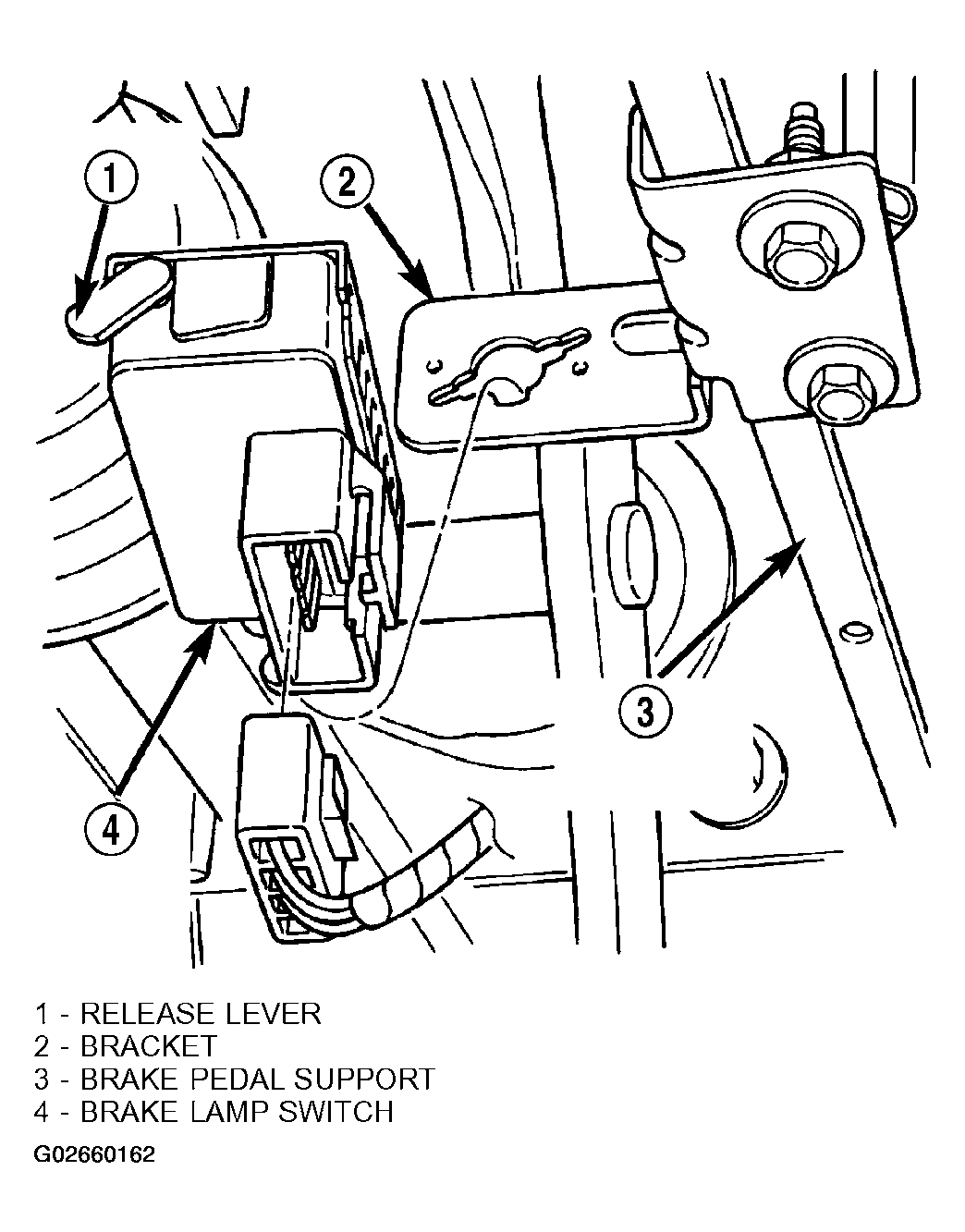

  5. Move the release lever (Figure ) on the switch to engage the switch plunger. The switch is now adjusted and can not be adjusted again.
