Parking Brake Shoes: Installation

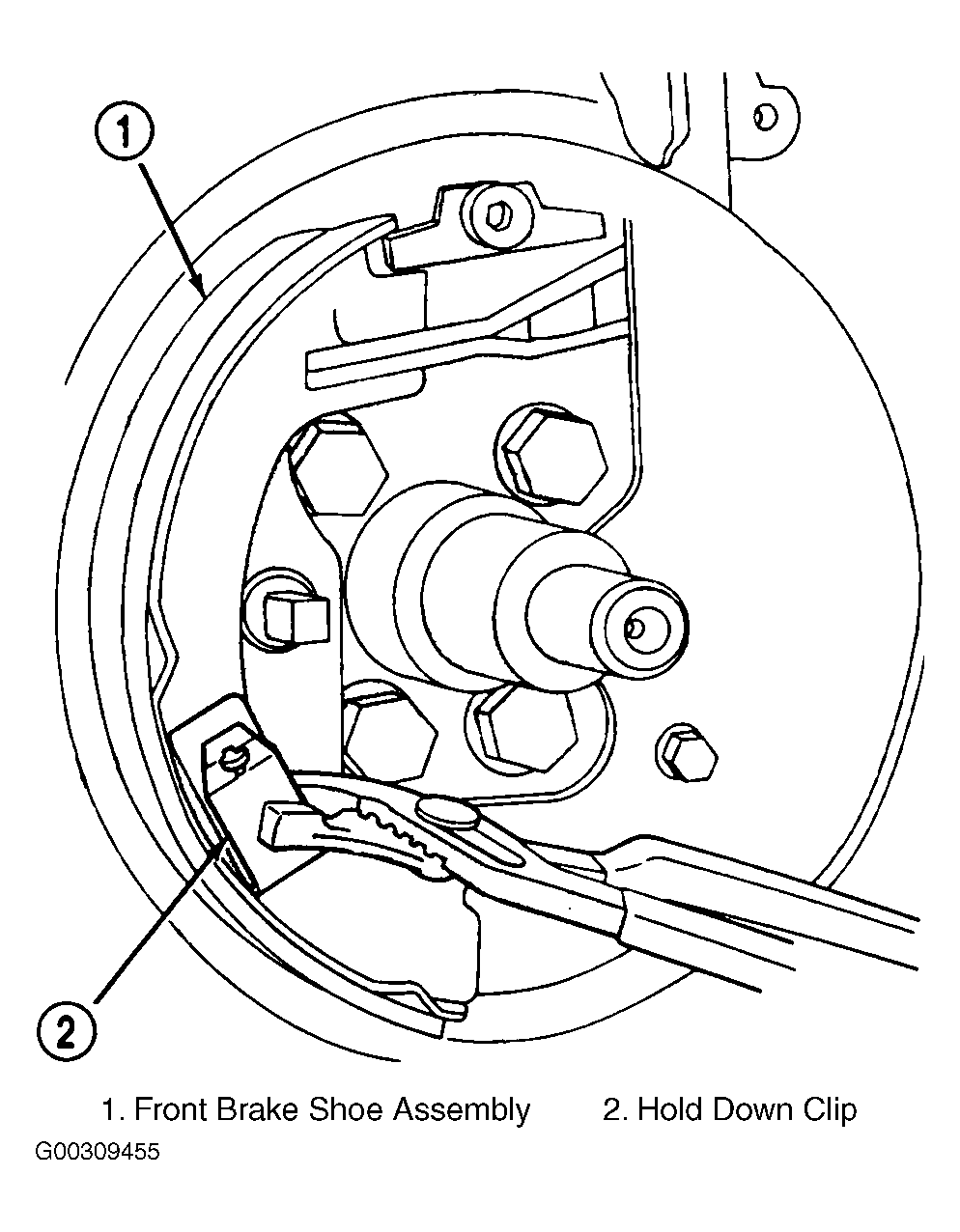

  1. Install the front brake shoe and secure it in place with a hold-down clip. See Figure .

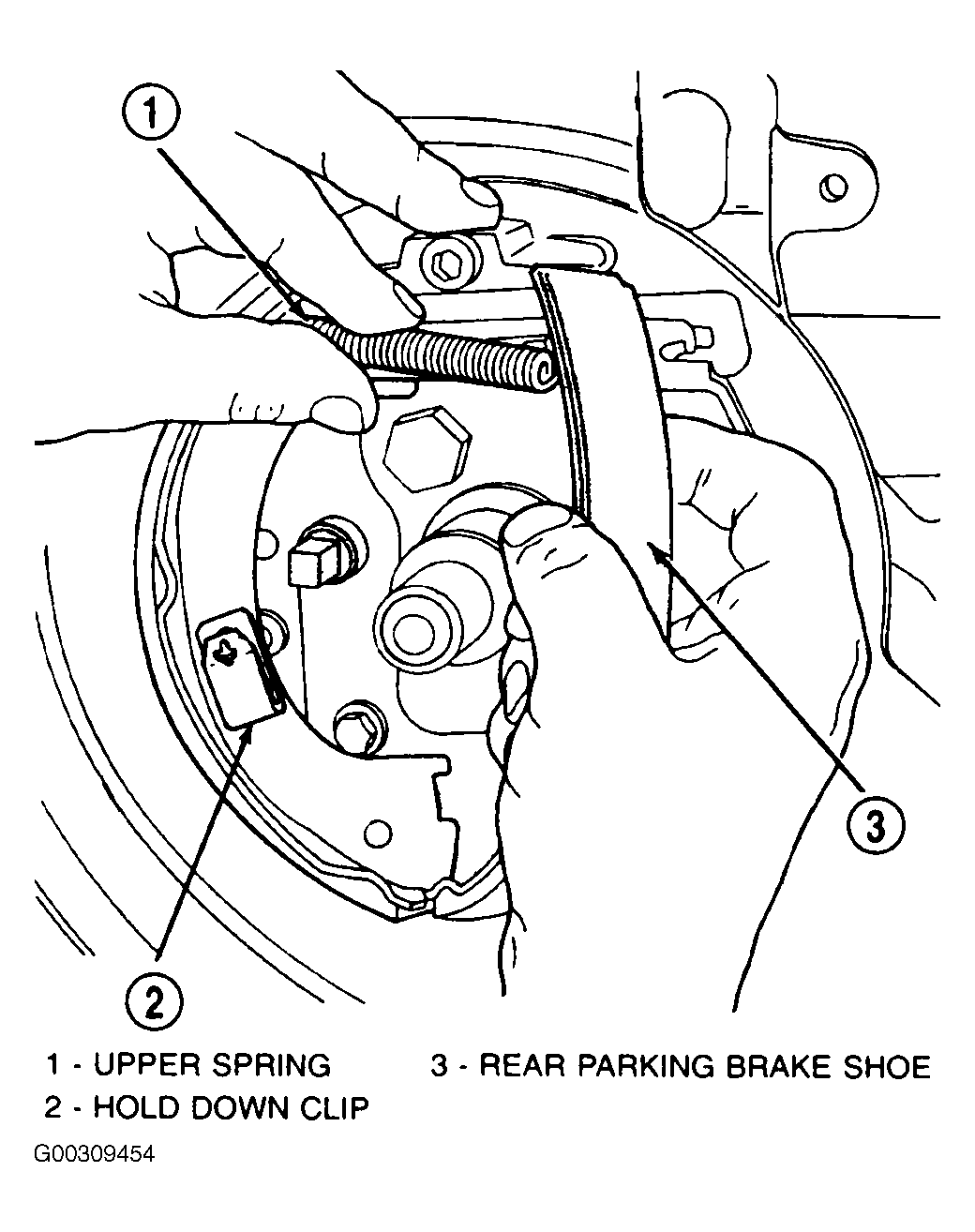

  2. Install the rear brake shoe and the shoe upper return spring. See Figure . Pull the rear brake shoe over the anchor block until it is properly located on the adapter.

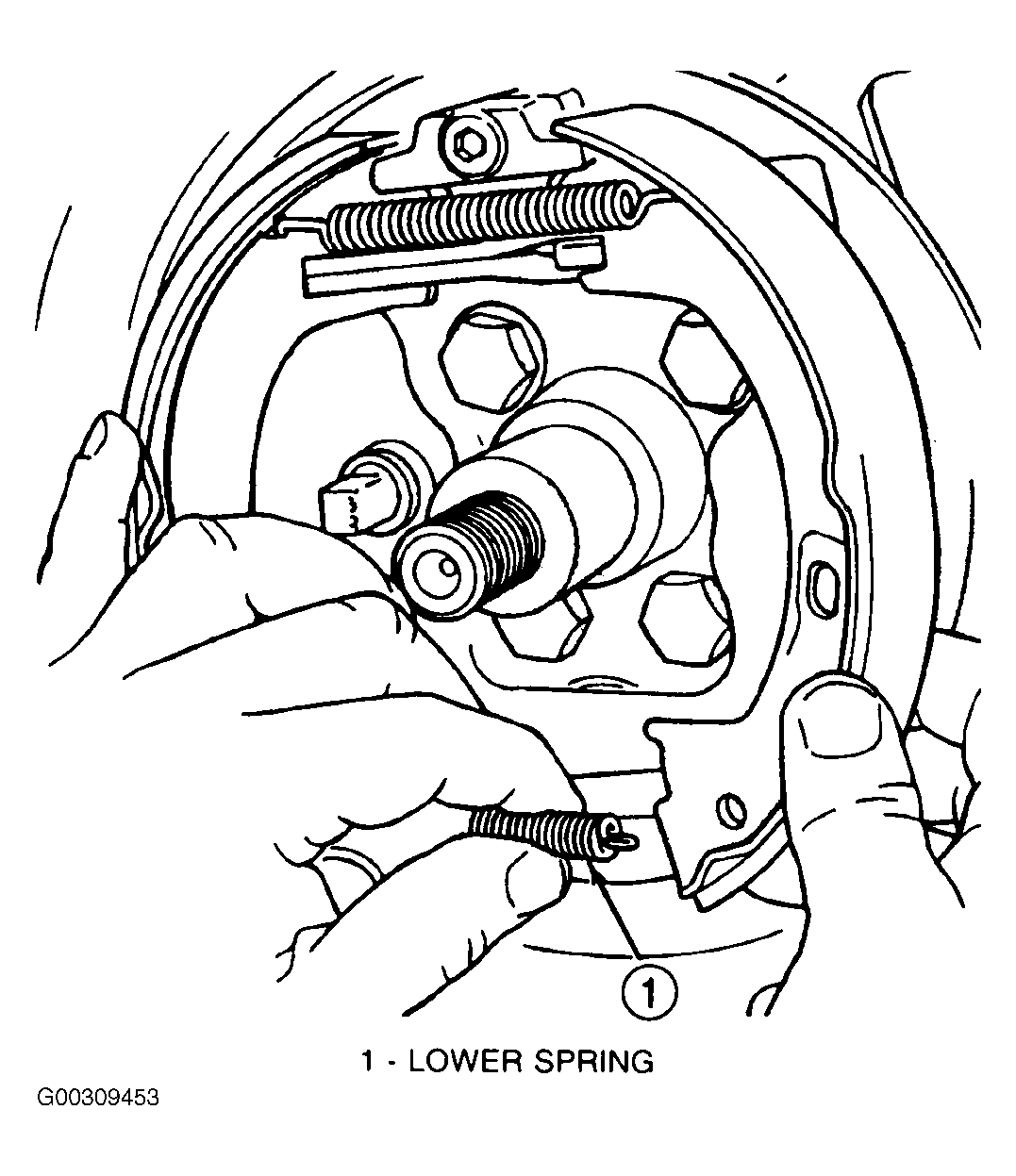

  3. Install the brake shoe lower return spring. See Figure .

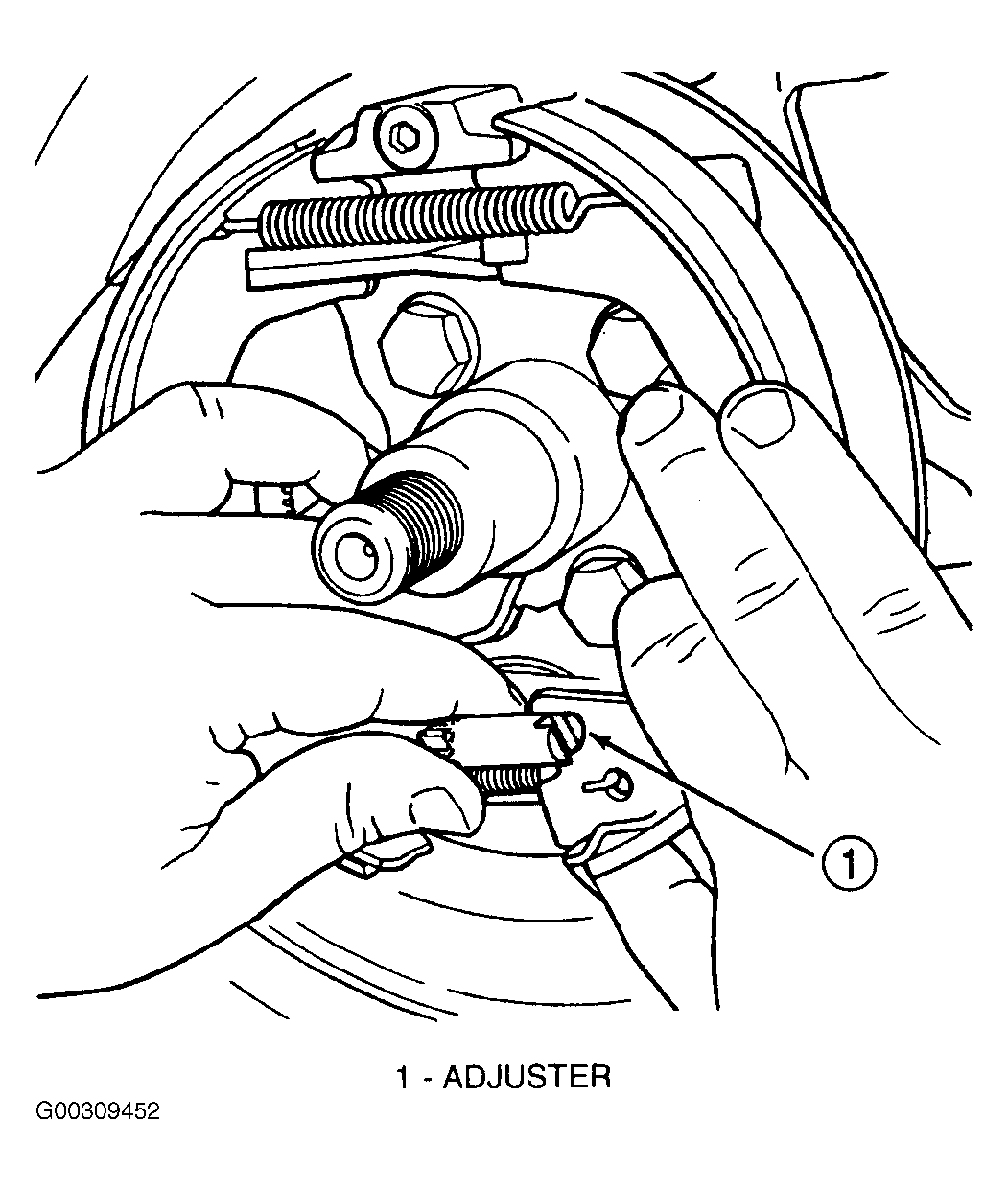

  4. Install the brake shoe adjuster assembly with the star wheel towards the rear. See Figure .

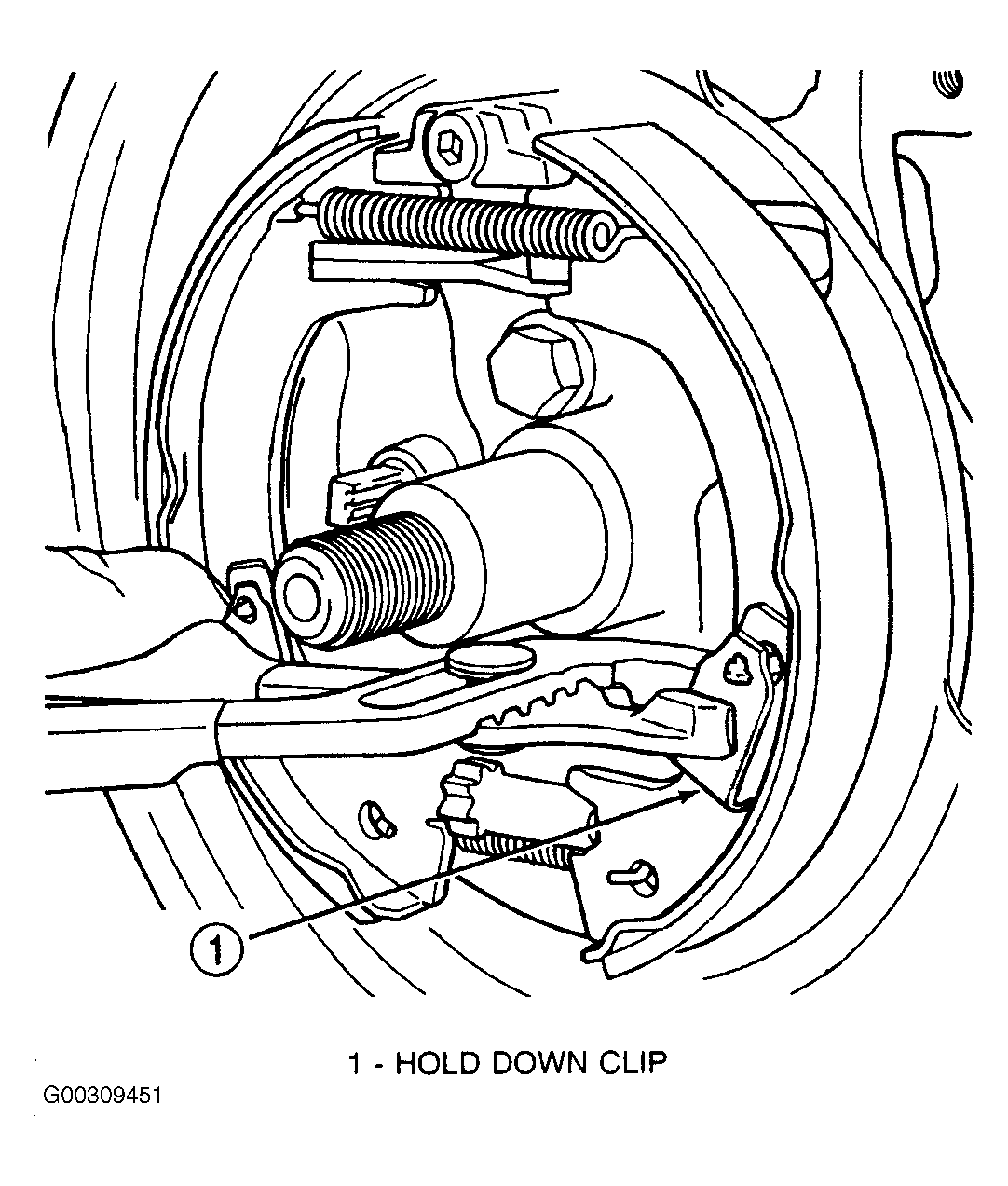

  5. Install the rear brake shoe hold-down clip. See Figure .
  6. Adjust the parking brake shoes. See PARKING BRAKE SHOES  under ADJUSTMENTS.
  7. Install the rear hub and bearing assembly on spindle.
  8. Install a new hub and bearing assembly retaining nut. See TORQUE SPECIFICATIONS  .
  9. Install the hub and bearing dust cap.
  10. Install the rear brake rotor. See ROTOR  .
  11. Install rear disc brake caliper. See CALIPER  .
  12. Install the tire and wheel assembly. See TORQUE SPECIFICATIONS  .
