Installation (Neon)

  1. Place the parking brake lever on the mounting studs on the vehicle floor. Install and tighten the 2 mounting nuts. See TORQUE SPECIFICATIONS  .

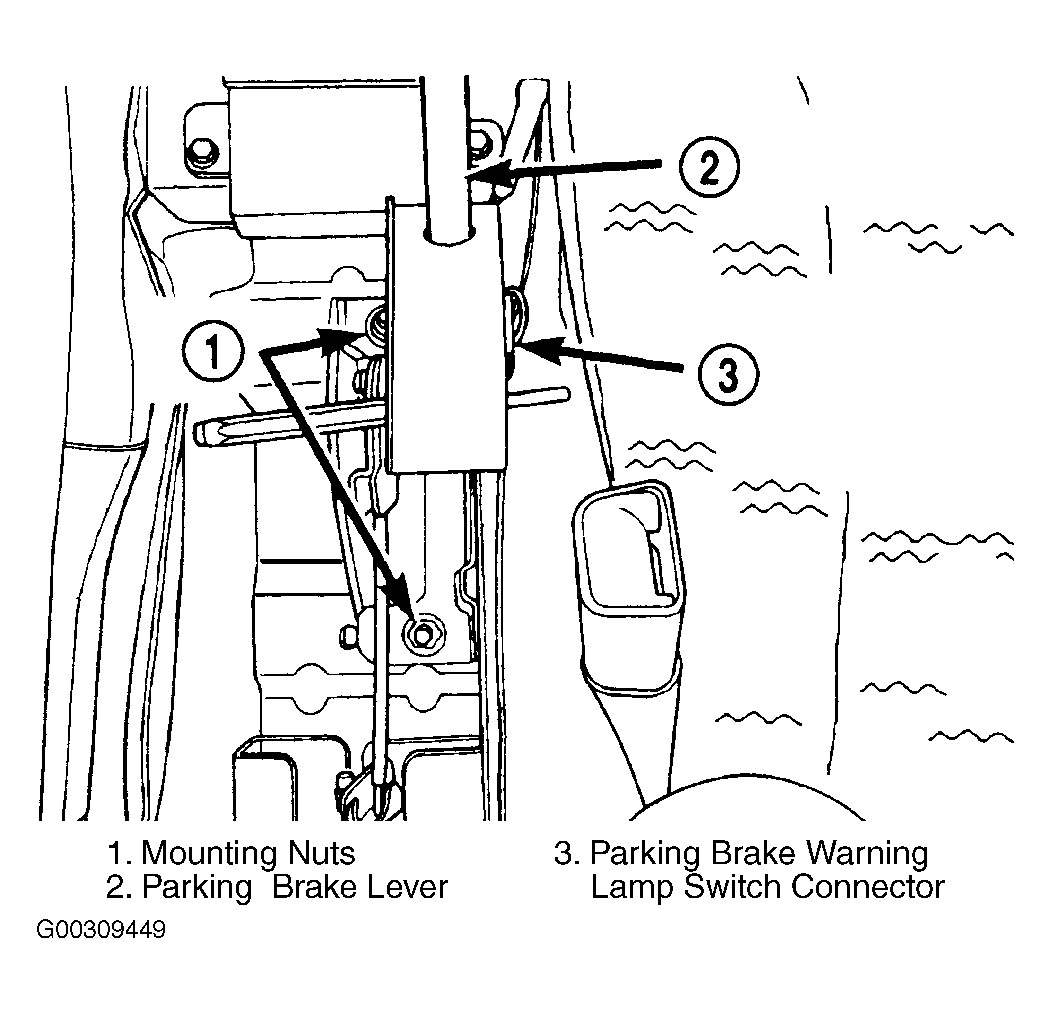

  2. Connect the wiring harness electrical connector on the parking brake warning lamp switch. See Figure .
  3. Install both rear parking brake cables into the equalizer on the parking brake lever output cable. See Figure .
  4. Ensure that the parking brake cables are correctly install on the equalizer and aligned with the cable track on the parking brake lever.
  5. Unlock the parking brake cable. See CABLE TENSIONER  under ADJUSTMENTS.
  6. Cycle the parking brake lever once to position the parking brake cables, then return the parking brake lever to its released position.
  7. Check the rear wheels of the vehicle. Wheels should rotate freely without dragging with the lever in its released position.
  8. Fully apply the parking brake lever.
  9. Install the center console and its mounting screws.
  10. Remove the blocks from the tires and wheels.
