Brake Fluid Reservoir: Removal
NOTE:
The master cylinder doe not need to be removed from the power brake booster for removal and installation of the brake fluid reservoir.
- Clean the master cylinder housing and brake fluid reservoir exterior surfaces.
- Remove the brake fluid reservoir cap. Using a clean syringe or siphoning tool, empty as much brake fluid as possible from the reservoir
- Disconnect the brake fluid level switch wiring harness connector. See Figure .
- Remove the 2 plastic retaining pins holding the reservoir to the master cylinder. See Figure .
- Lift the reservoir from the master cylinder casting.

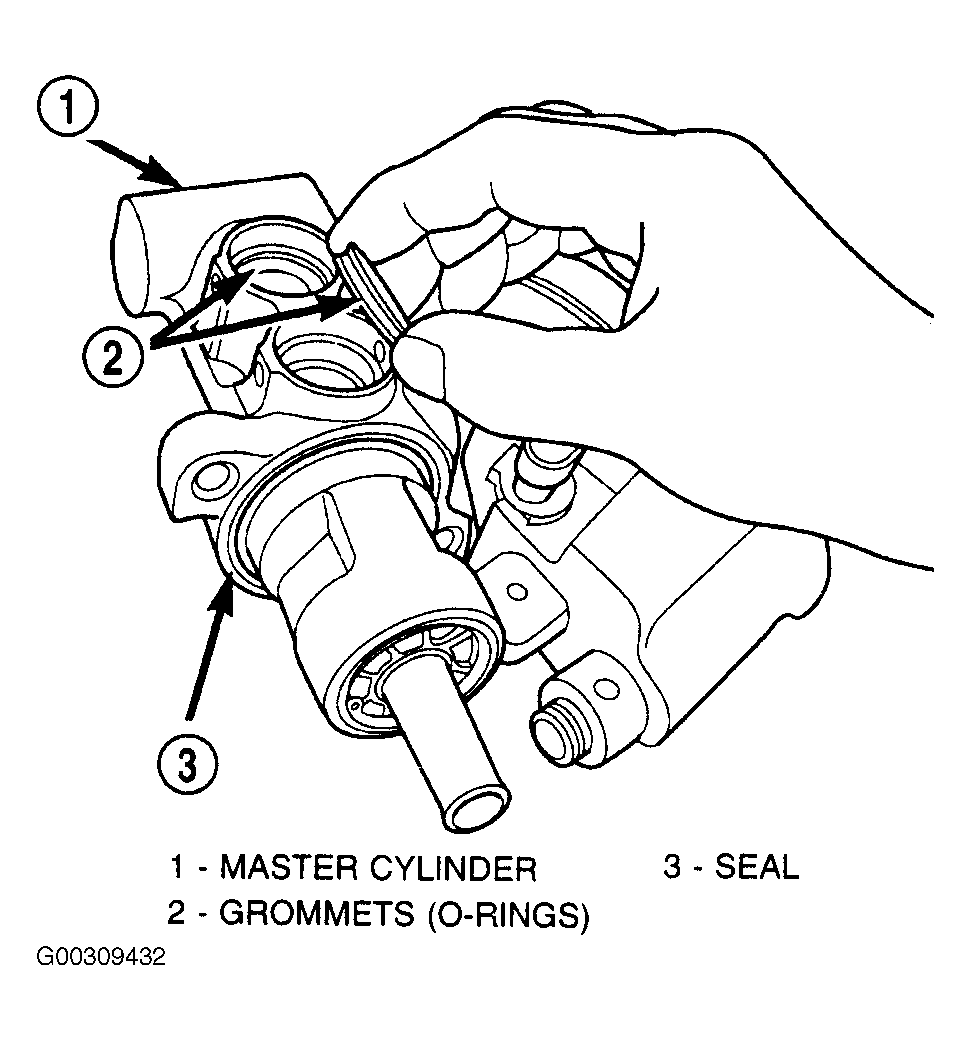

- Remove the grommets ("O" rings) sealing the reservoir to the master cylinder housing. See Fig 1 .
