Drum Brakes

Rear drum brakes are standard equipment on this vehicle. The rear wheel drum brakes are a 2-shoe, internal expanding type, with an automatic adjuster screw. See Fig 1 . The automatic adjuster screw is actuated each time the brakes are applied. The automatic adjuster screw is located directly below the wheel cylinder.

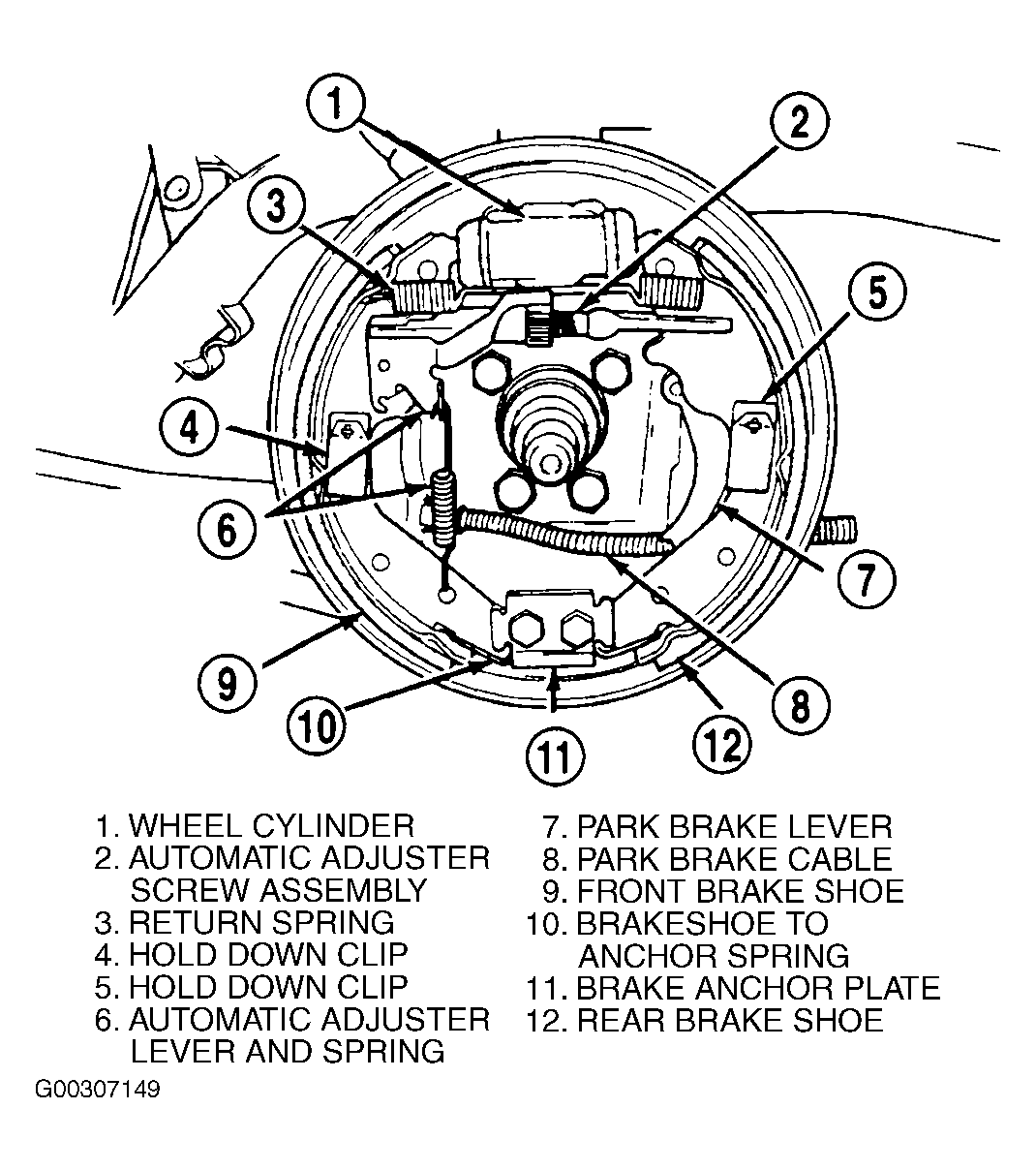

Fig 1: Identifying Rear Drum Brake Components

Courtesy of CHRYSLER CORP.
