Repair Instructions:

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

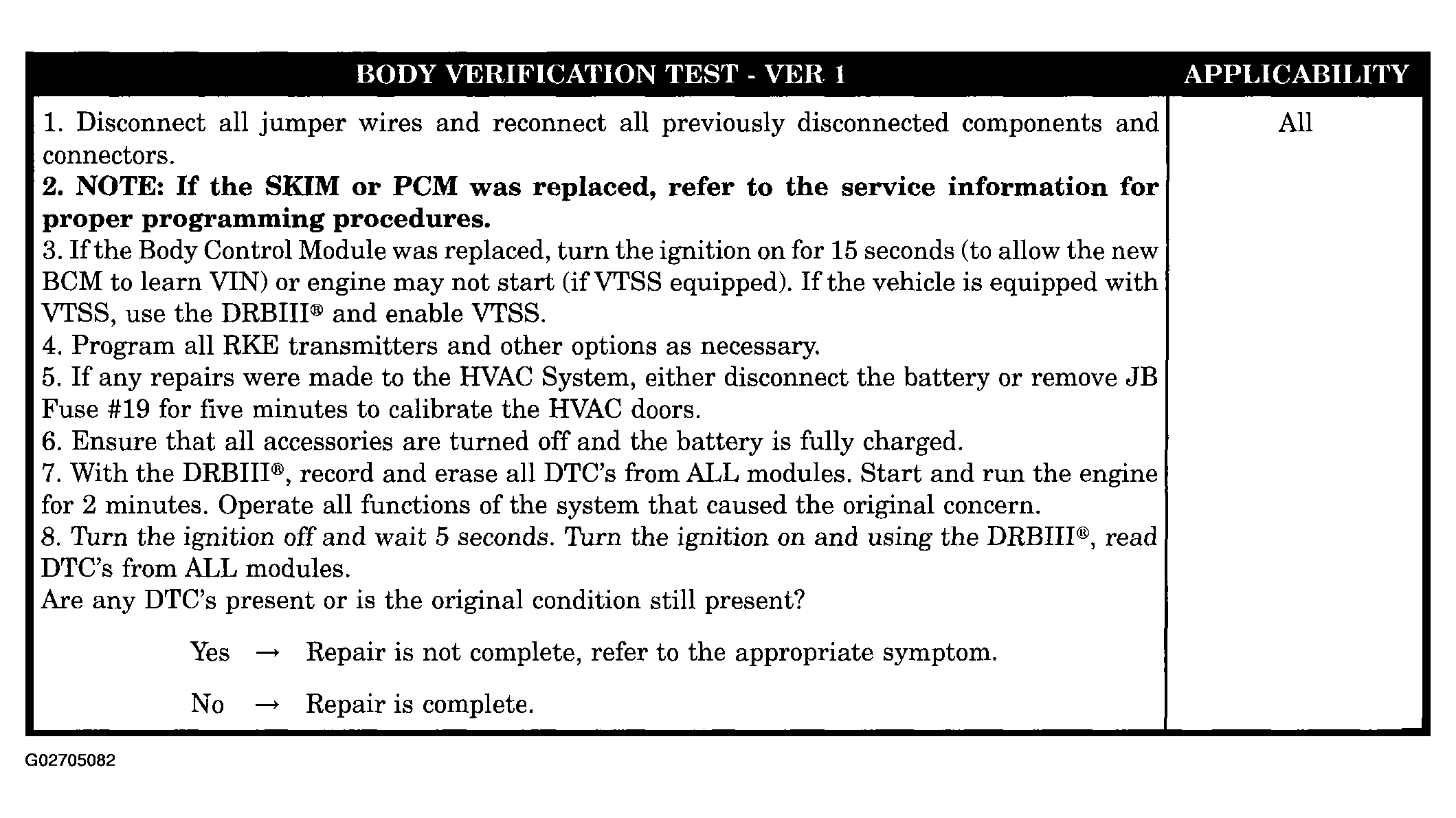

When the trouble code FAILED SELF TEST is displayed, replace the CMTC or EVIC as required. If the vehicle is equipped with TPM, the EVIC must be retrained. Perform BODY VERIFICATION TEST - VER 1. Refer to Figure.
