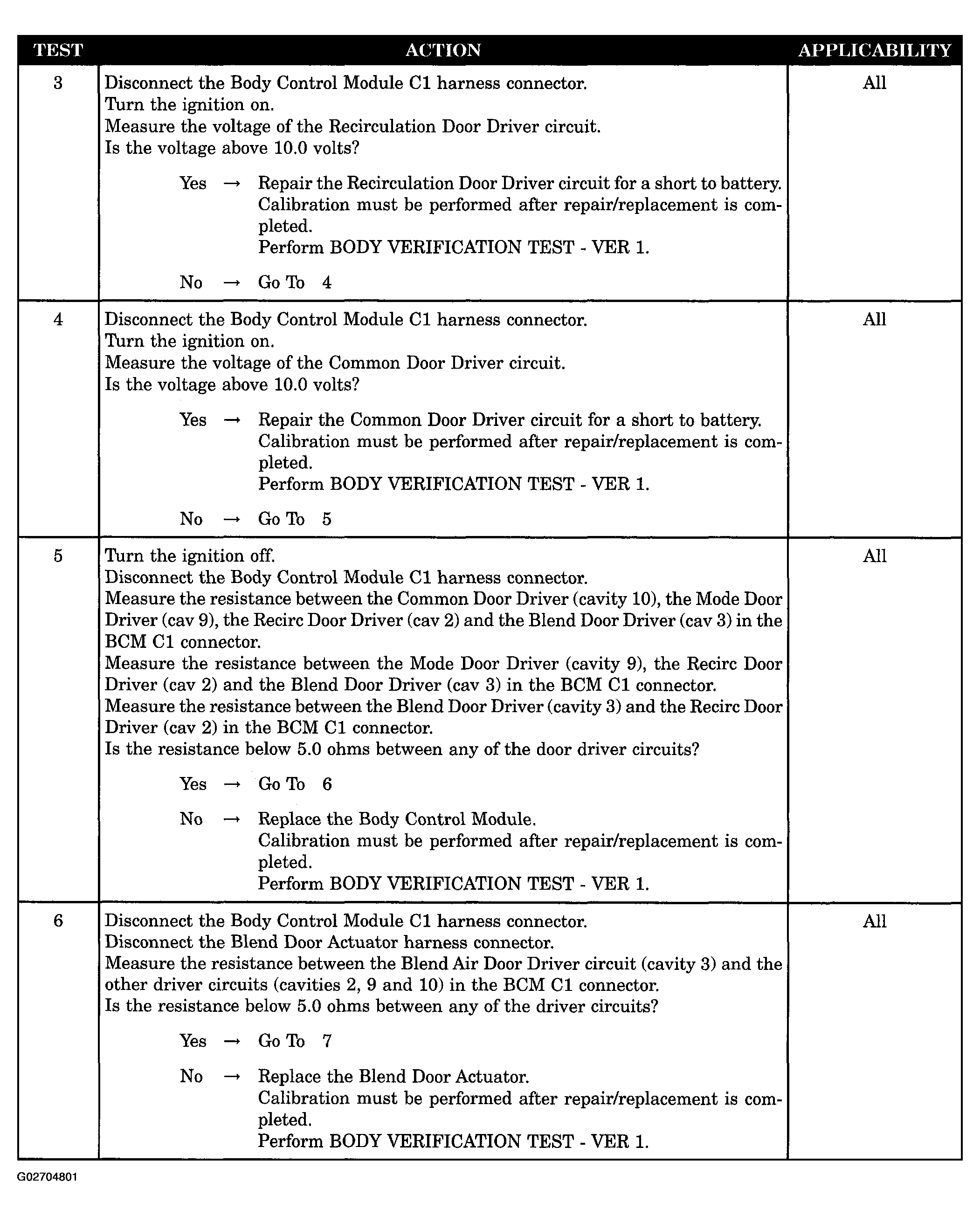

Fig 1: Blend Door Output Shorted To Battery - Diagnostic Procedure (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

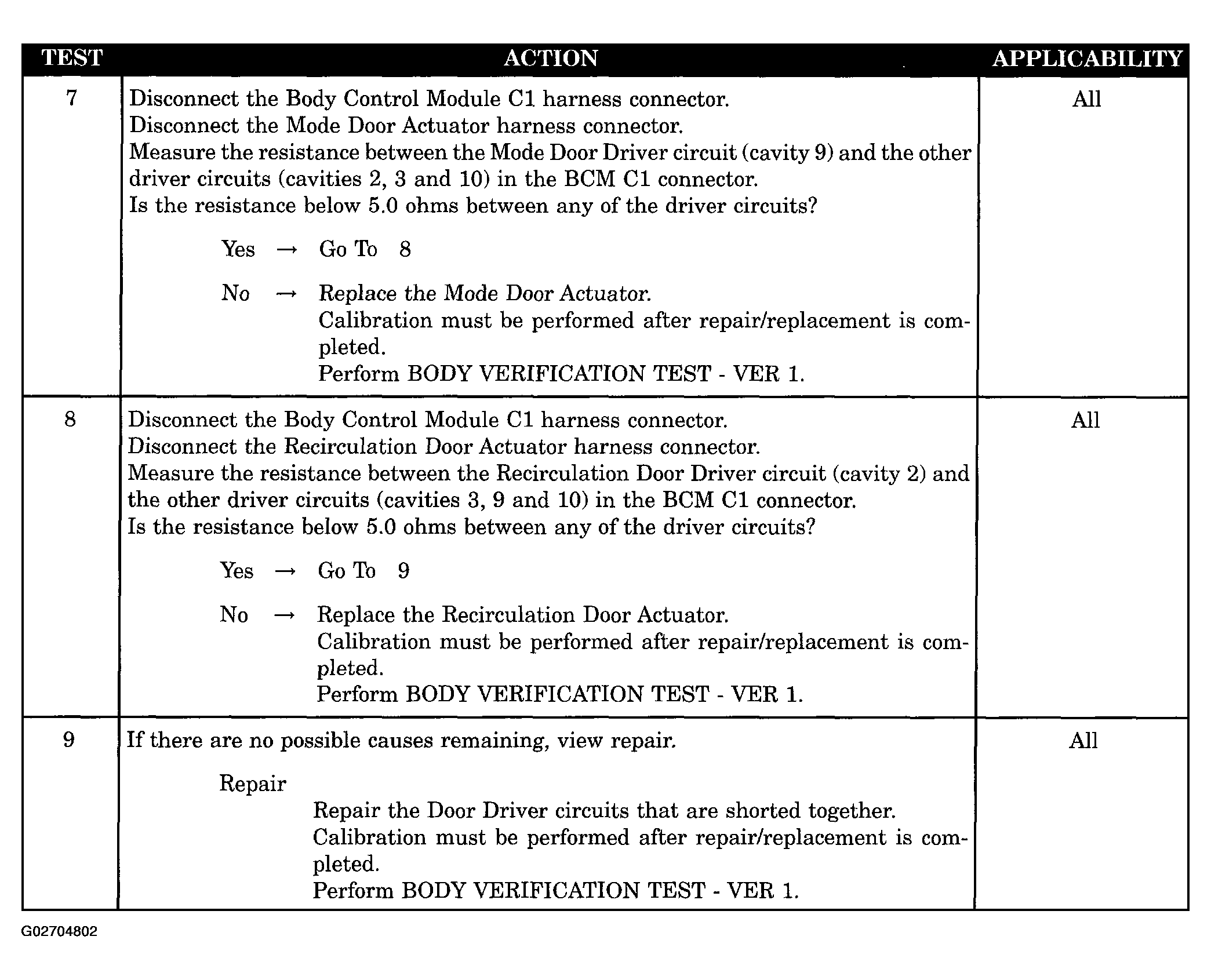

Fig 2: Blend Door Output Shorted To Battery - Diagnostic Procedure (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

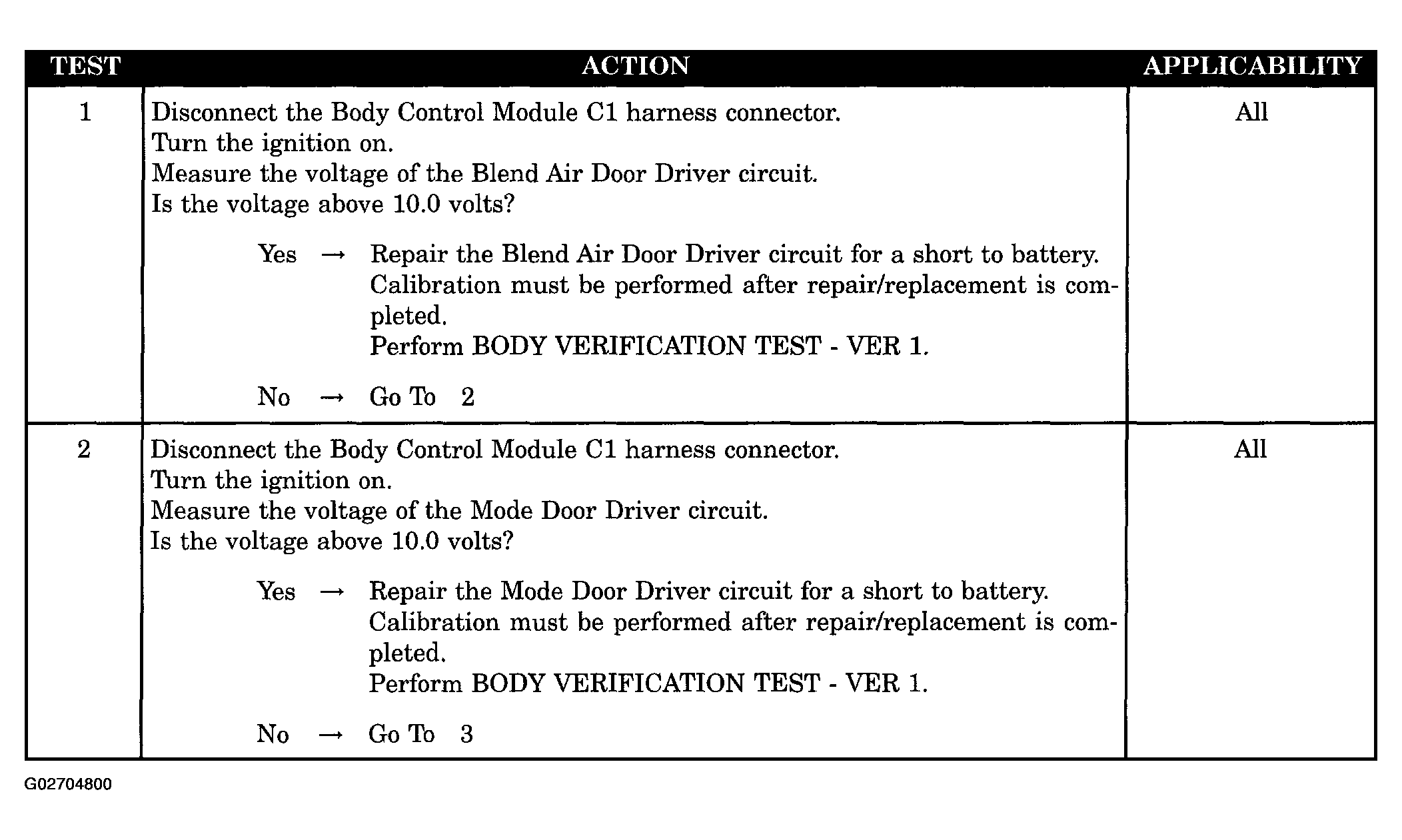

Fig 3: Blend Door Output Shorted To Battery - Diagnostic Procedure (3 Of 3)
