Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

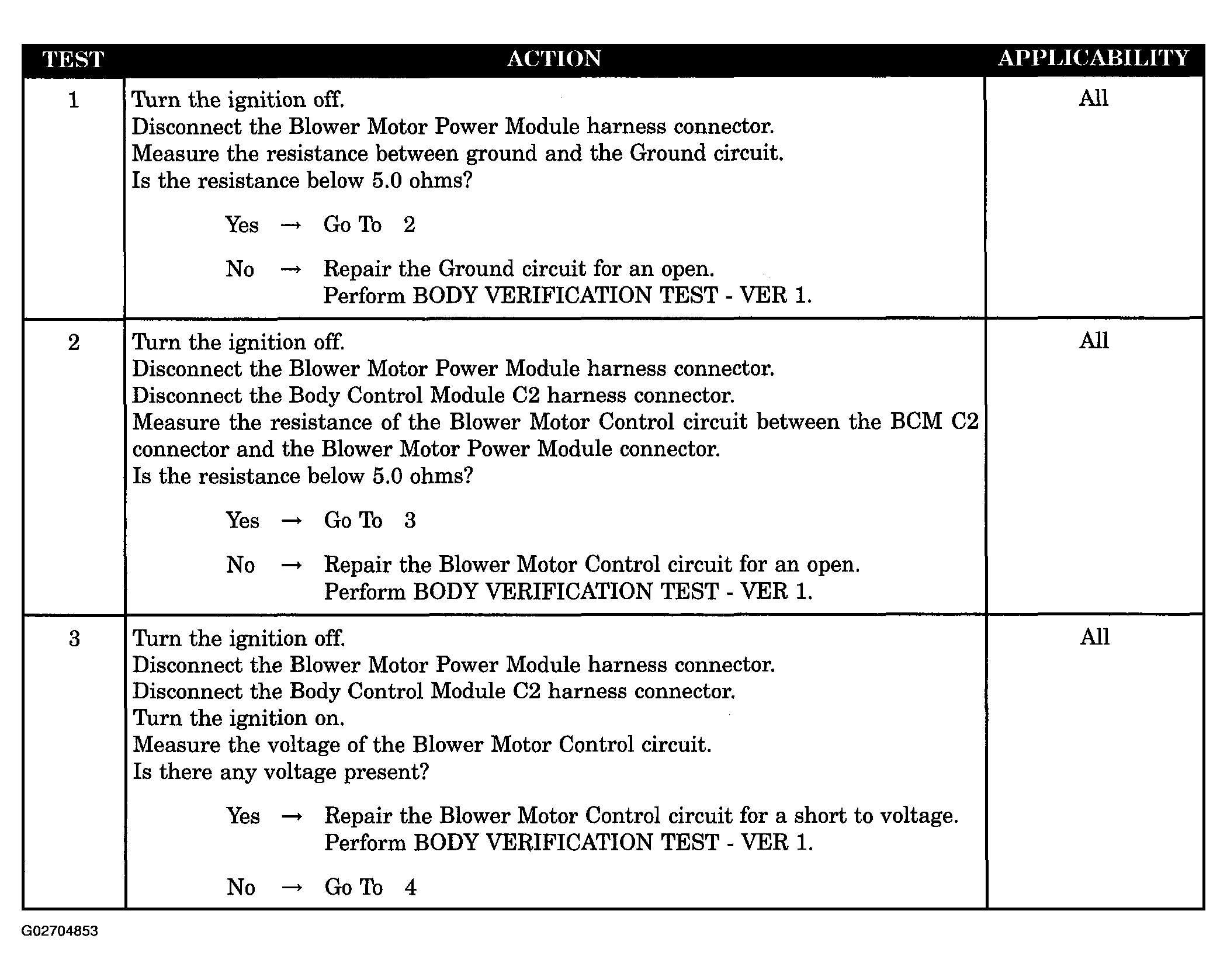

Fig 1: ATC Blower Motor Speeds Incorrect - Diagnostic Procedure (1 Of 2)
G02704853Courtesy of DAIMLERCHRYSLER CORP.

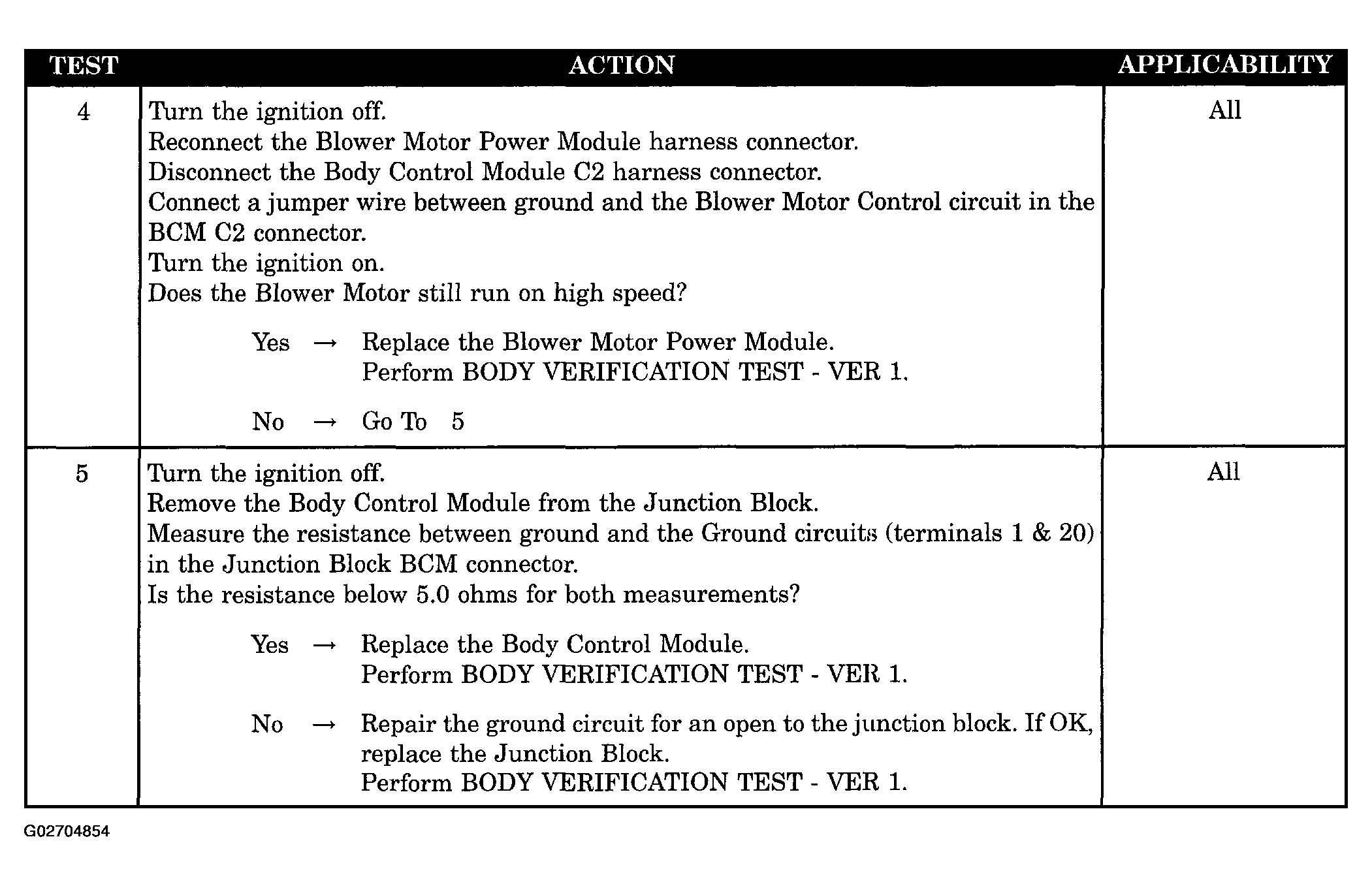

Fig 2: ATC Blower Motor Speeds Incorrect - Diagnostic Procedure (2 Of 2)
G02704854Courtesy of DAIMLERCHRYSLER CORP.
