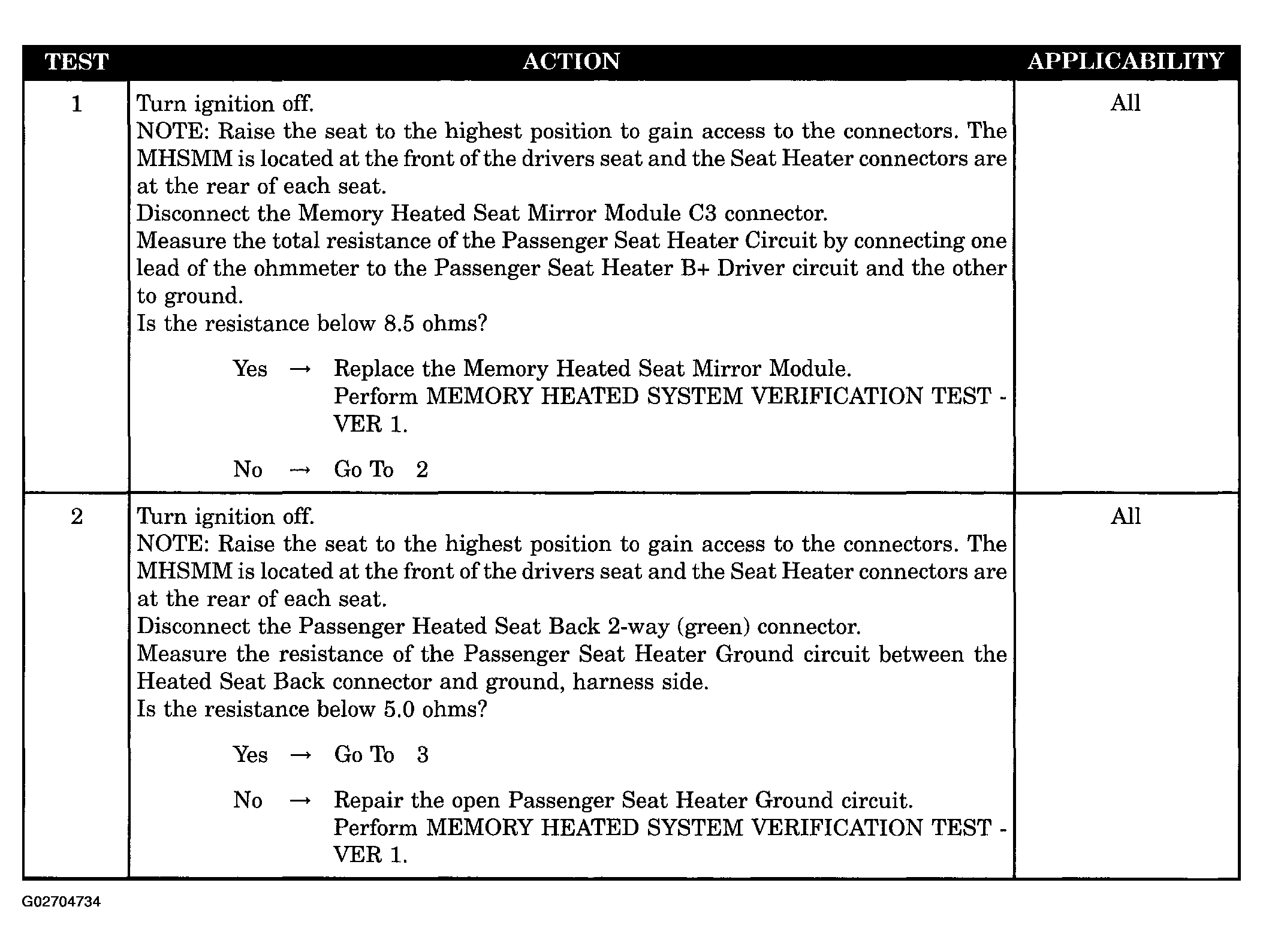

Fig 1: Passenger Seat Heat Output Open - Diagnostic Procedure (1 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

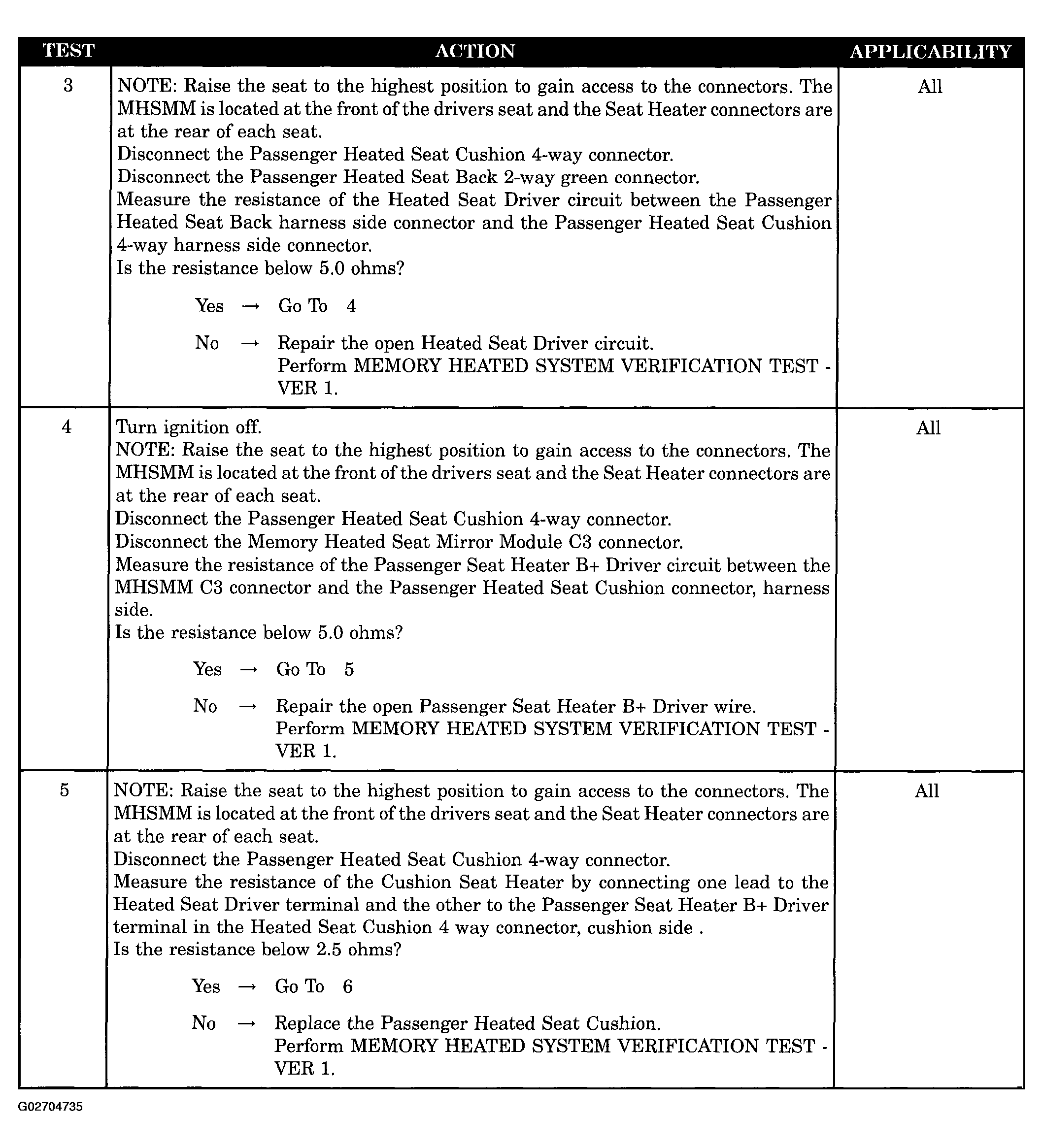

Fig 2: Passenger Seat Heat Output Open - Diagnostic Procedure (2 Of 3)
Courtesy of DAIMLERCHRYSLER CORP.

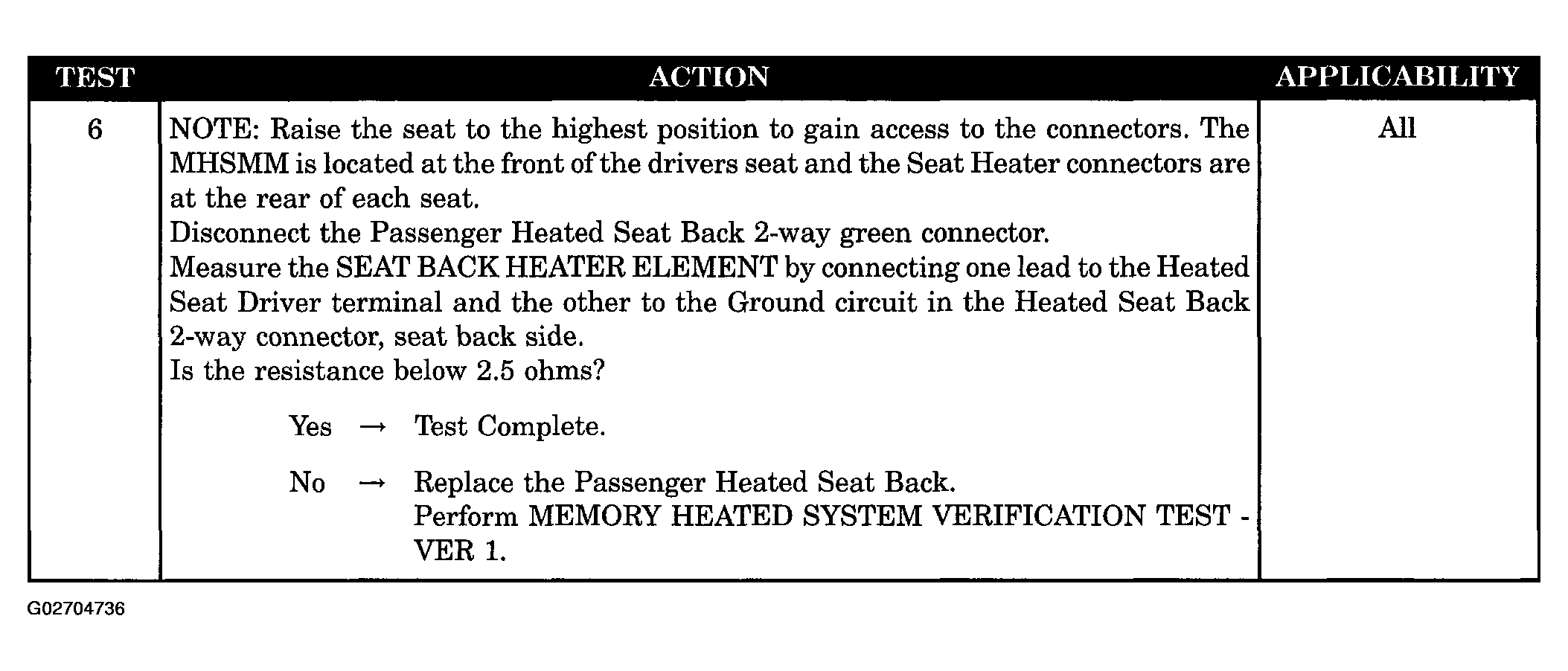

Fig 3: Passenger Seat Heat Output Open - Diagnostic Procedure (3 Of 3)
