Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

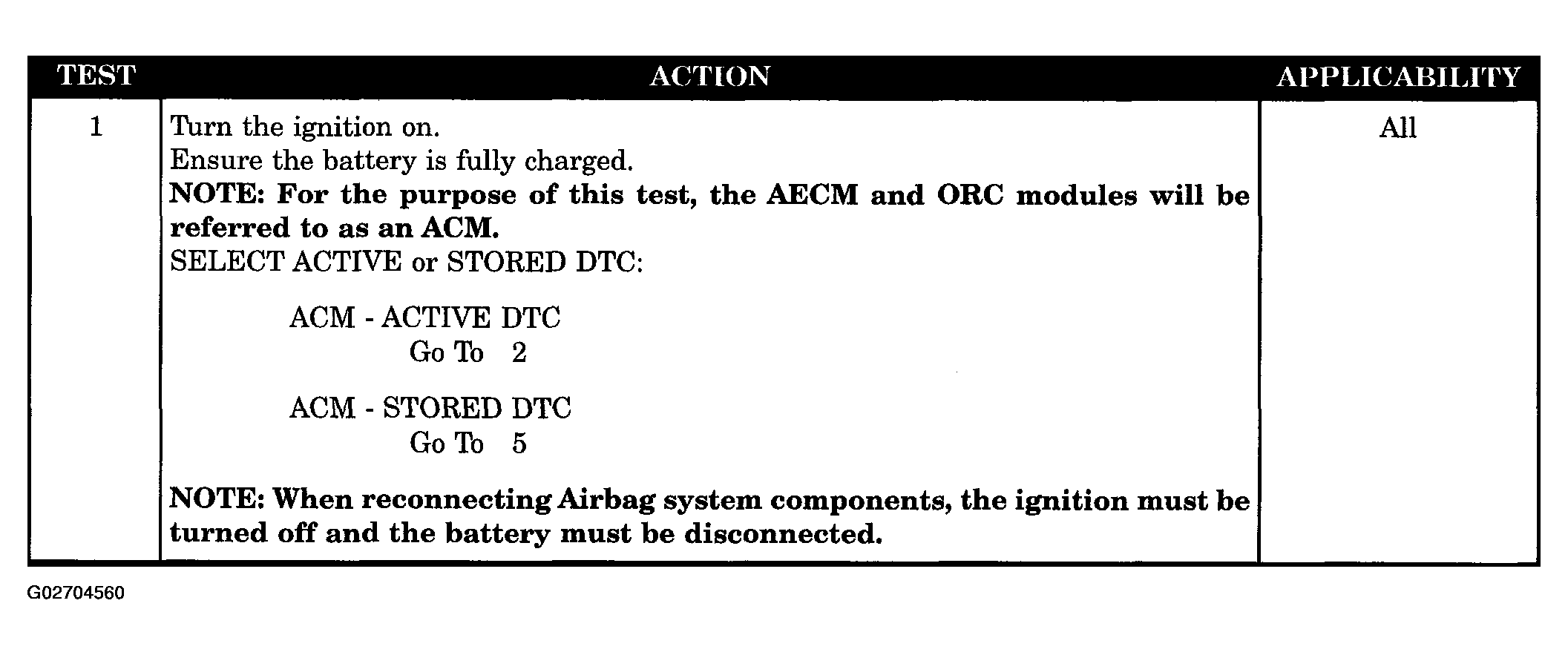

Fig 1: Airbag Warning Indicator - Diagnostic Procedure (1 Of 2)
G02704560Courtesy of DAIMLERCHRYSLER CORP.

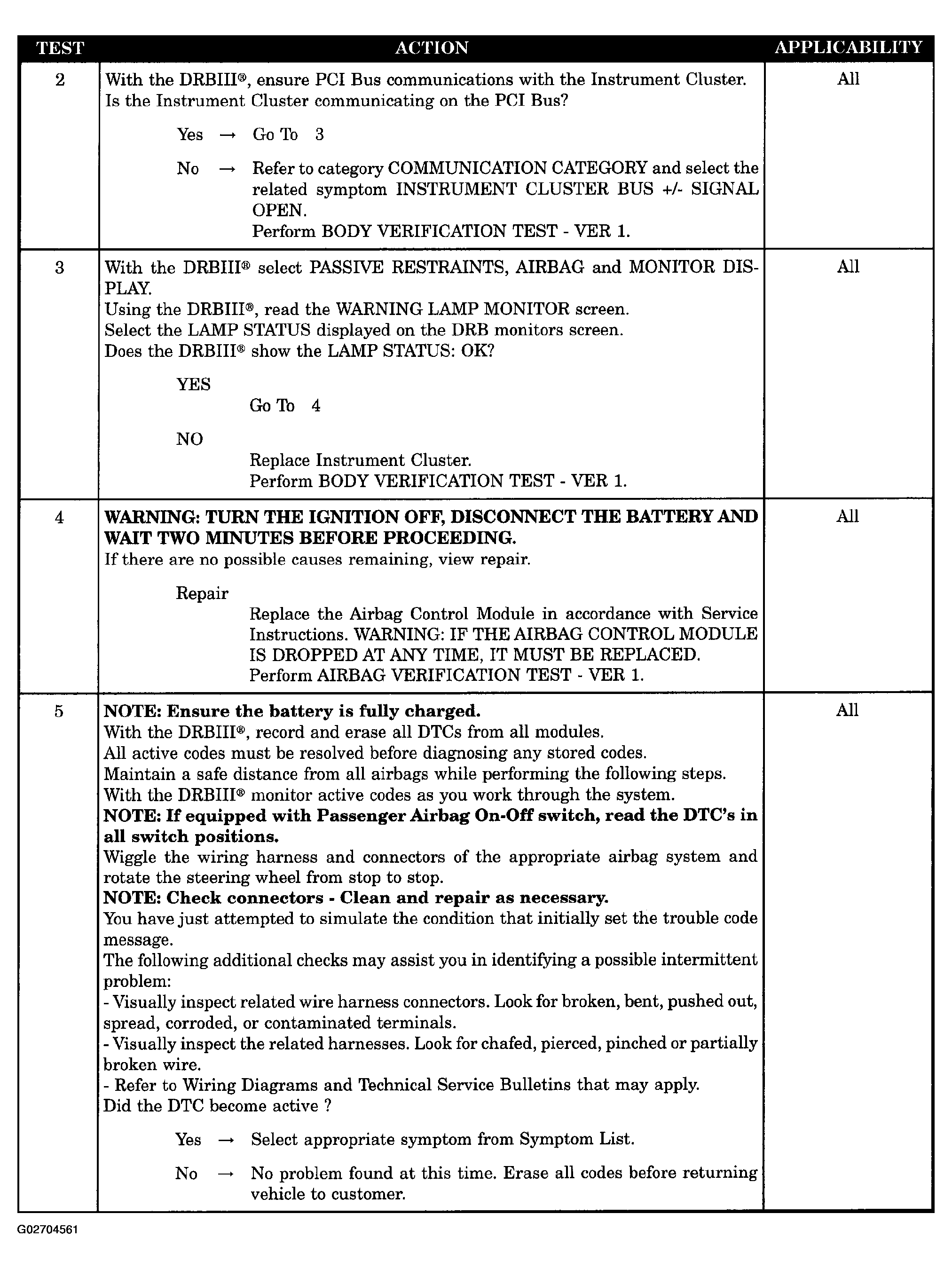

Fig 2: Airbag Warning Indicator - Diagnostic Procedure (2 Of 2)
G02704561Courtesy of DAIMLERCHRYSLER CORP.
