CONCORDE, Intrepid & 300M

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Stratus, 2003 Dodge SX, 2003 Dodge SRT-4, 2003 Dodge Neon, and 2003 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

VACUUM DIAGRAM REFERENCE CHART

Application	See Fig.
2.7L	Fig 1
3.5L (Magnum)	Fig 2
3.5L (De Tuned)	Fig 3

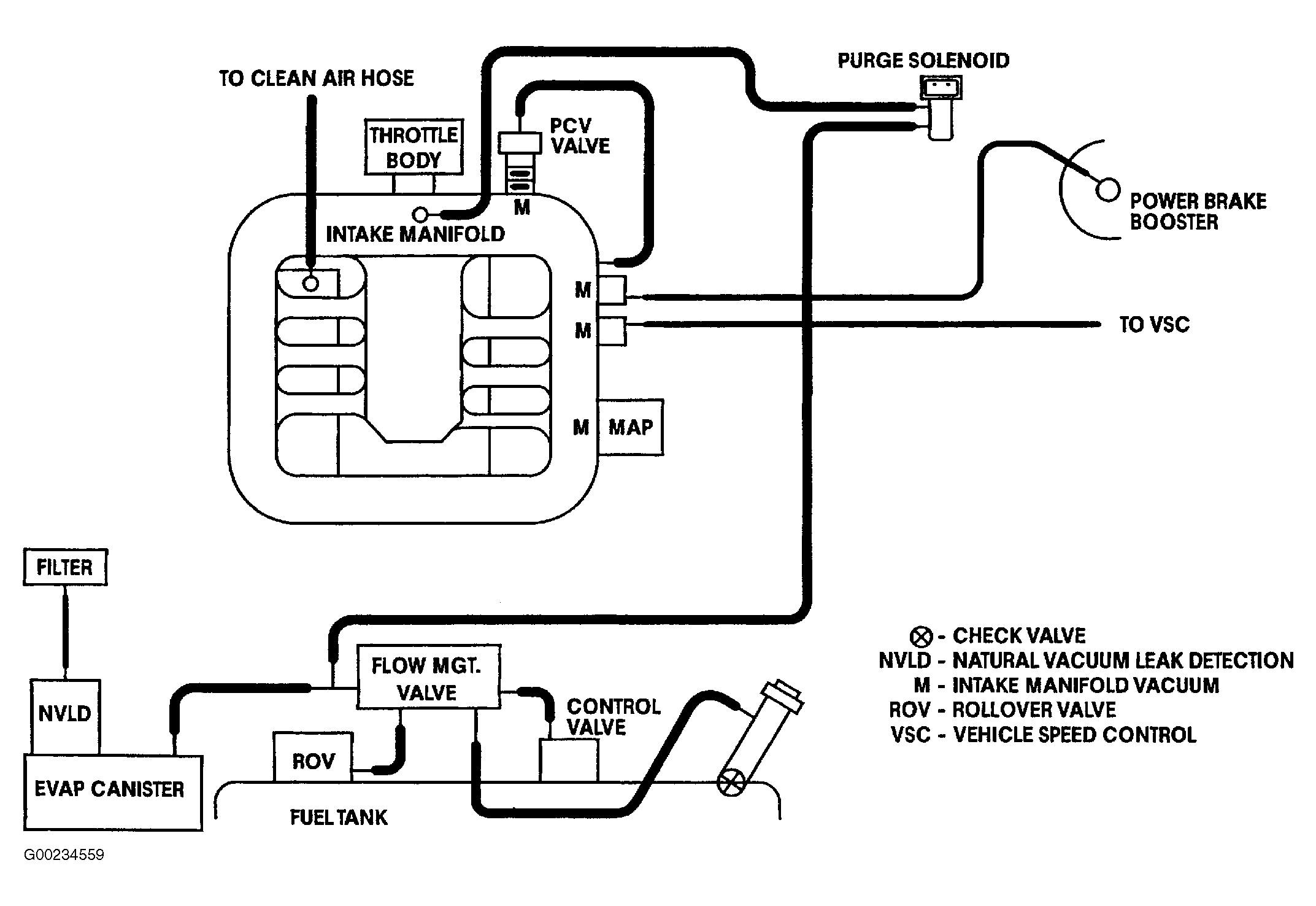

Fig 1: Vacuum Diagram - Concorde & Intrepid (2.7L)

Courtesy of CHRYSLER CORP.

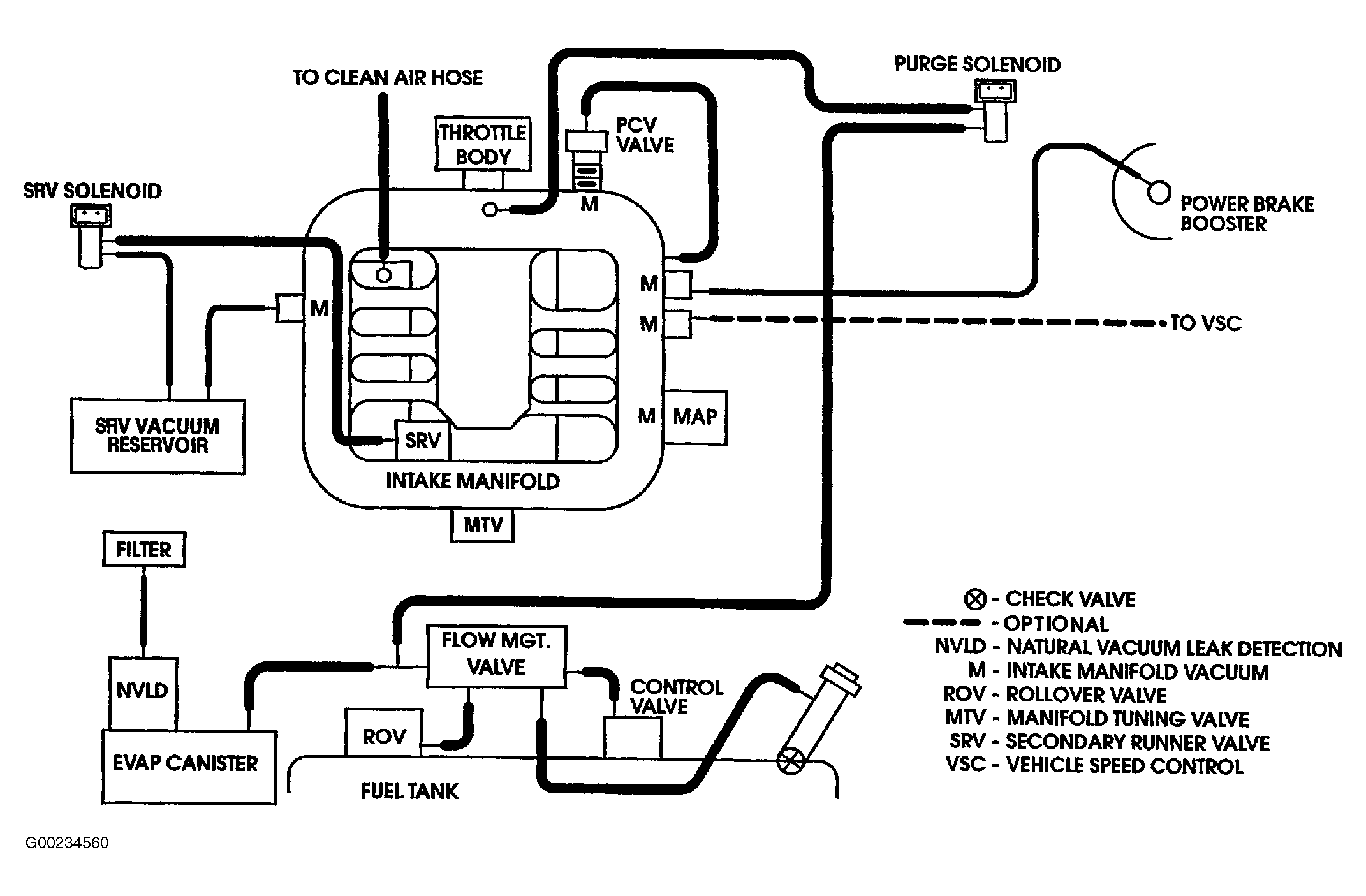

Fig 2: Vacuum Diagram - Concorde, Intrepid & 300M (3.5L Magnum)

Courtesy of CHRYSLER CORP.

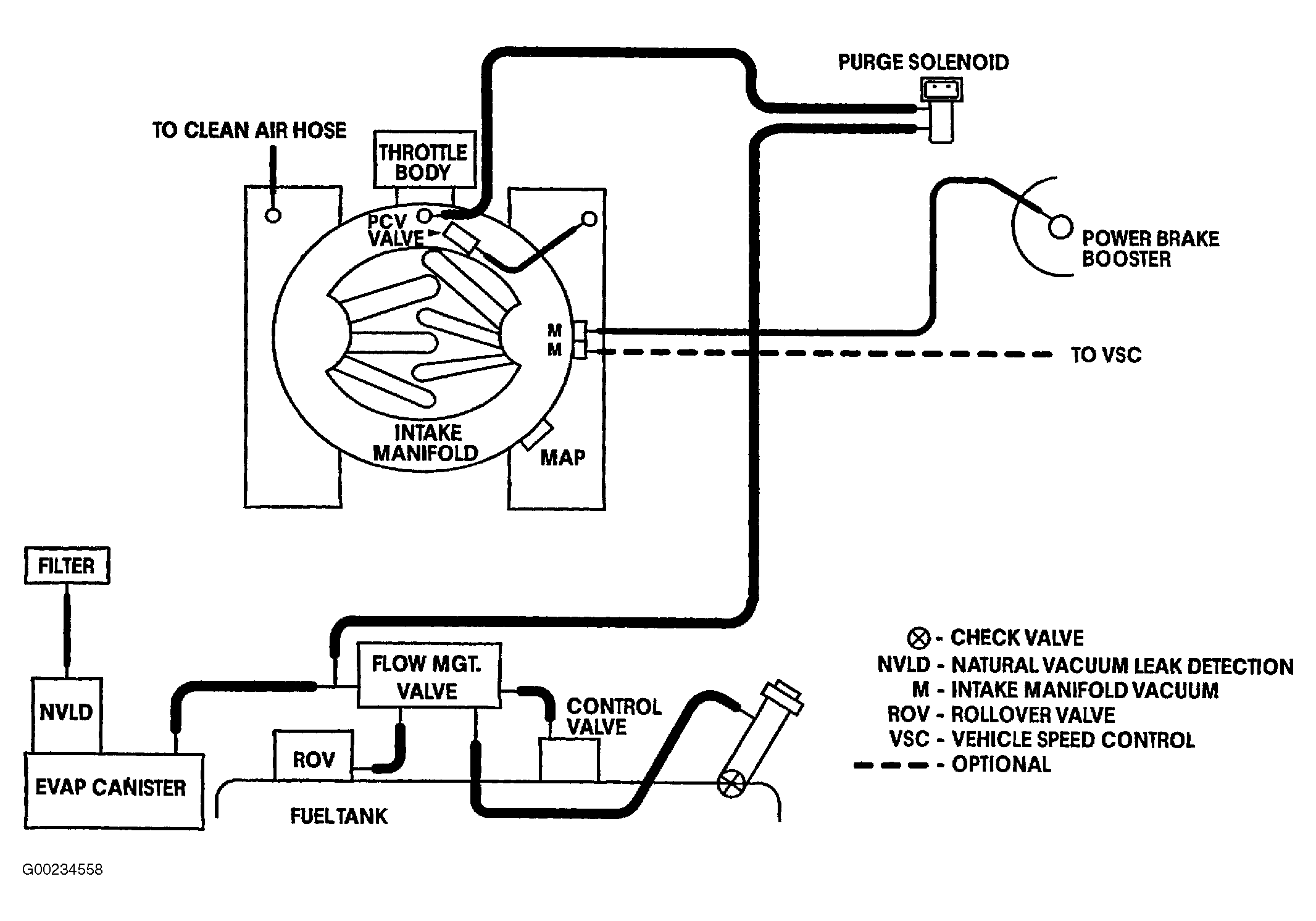

Fig 3: Vacuum Diagram - Concorde, Intrepid & 300M (3.5L - De-Tuned)

Courtesy of CHRYSLER CORP.
