Removal & Installation
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

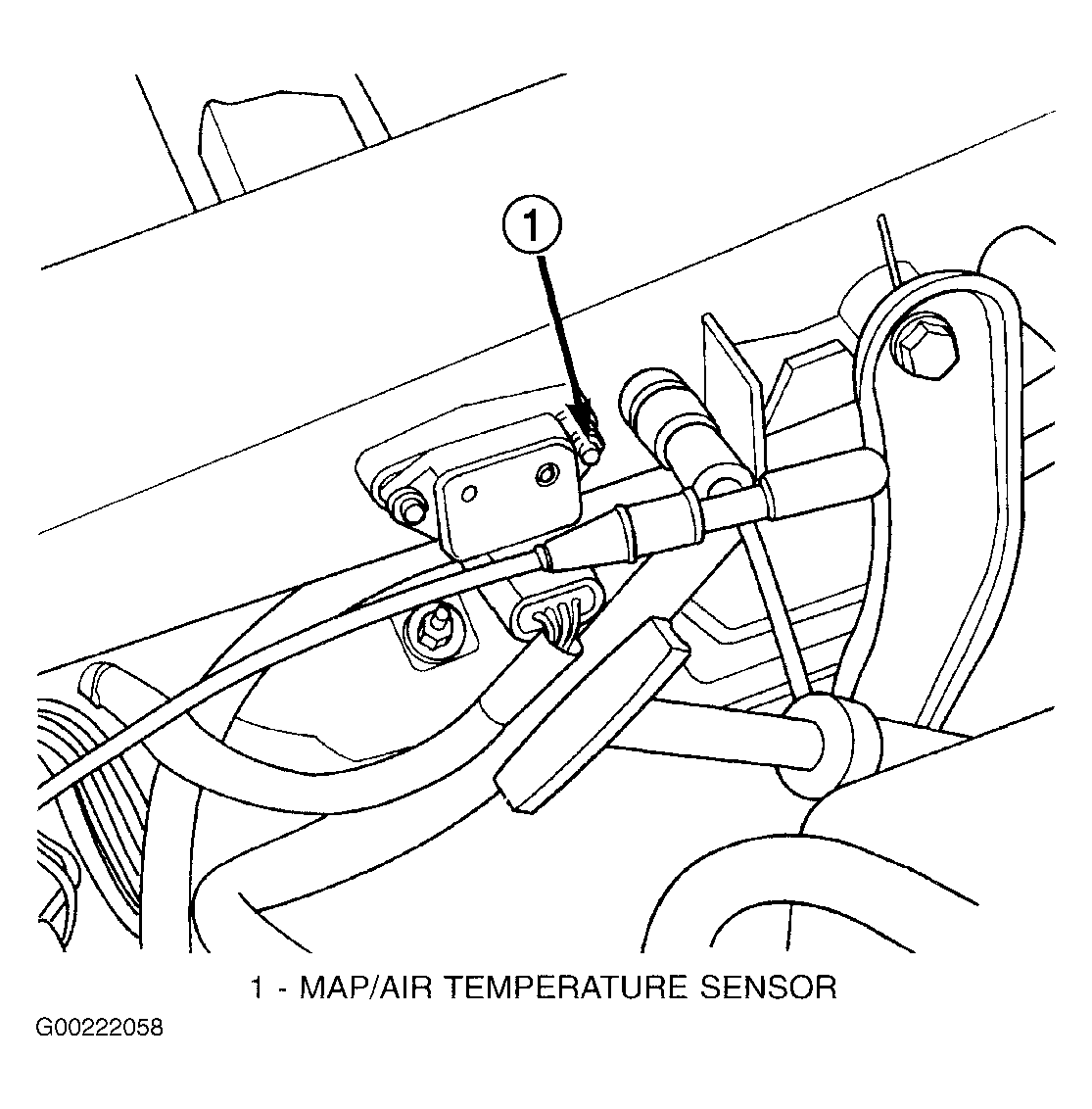

Locate Manifold Absolute Pressure (MAP) sensor. See Fig 1 or Fig 2 . Disconnect the negative battery cable. Disconnect MAP sensor harness connector. Remove bolts and MAP sensor. To install, reverse removal procedure. Tighten MAP sensor bolts to specification. See TORQUE SPECIFICATIONS .
