Removal & Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Locate Intake Air Temperature (IAT) sensor. See Fig 1 or Fig 2 . Remove the negative battery cable. Disconnect IAT sensor harness connector. Remove IAT sensor from clean air hose to throttle body. To install, reverse removal procedure.

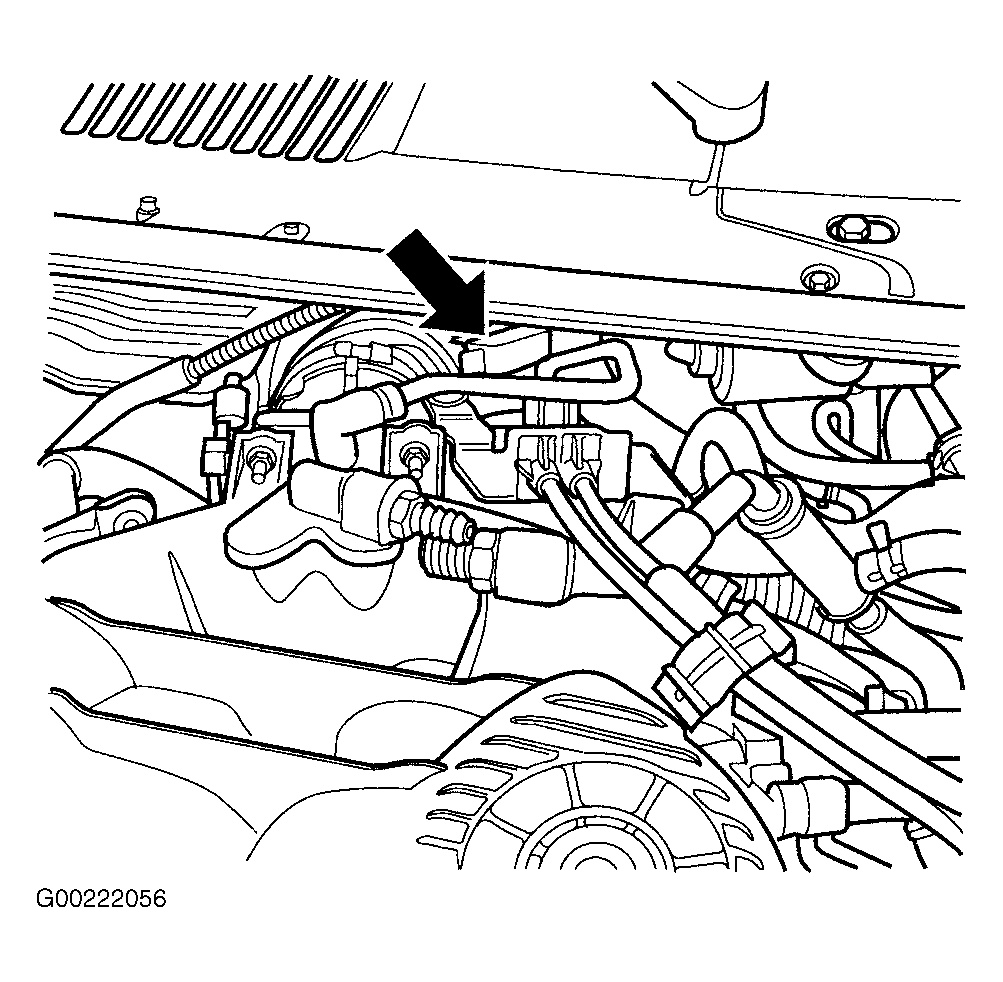

Fig 1: Locating Inlet Air Temperature Sensor (2.7L)

Courtesy of CHRYSLER CORP.

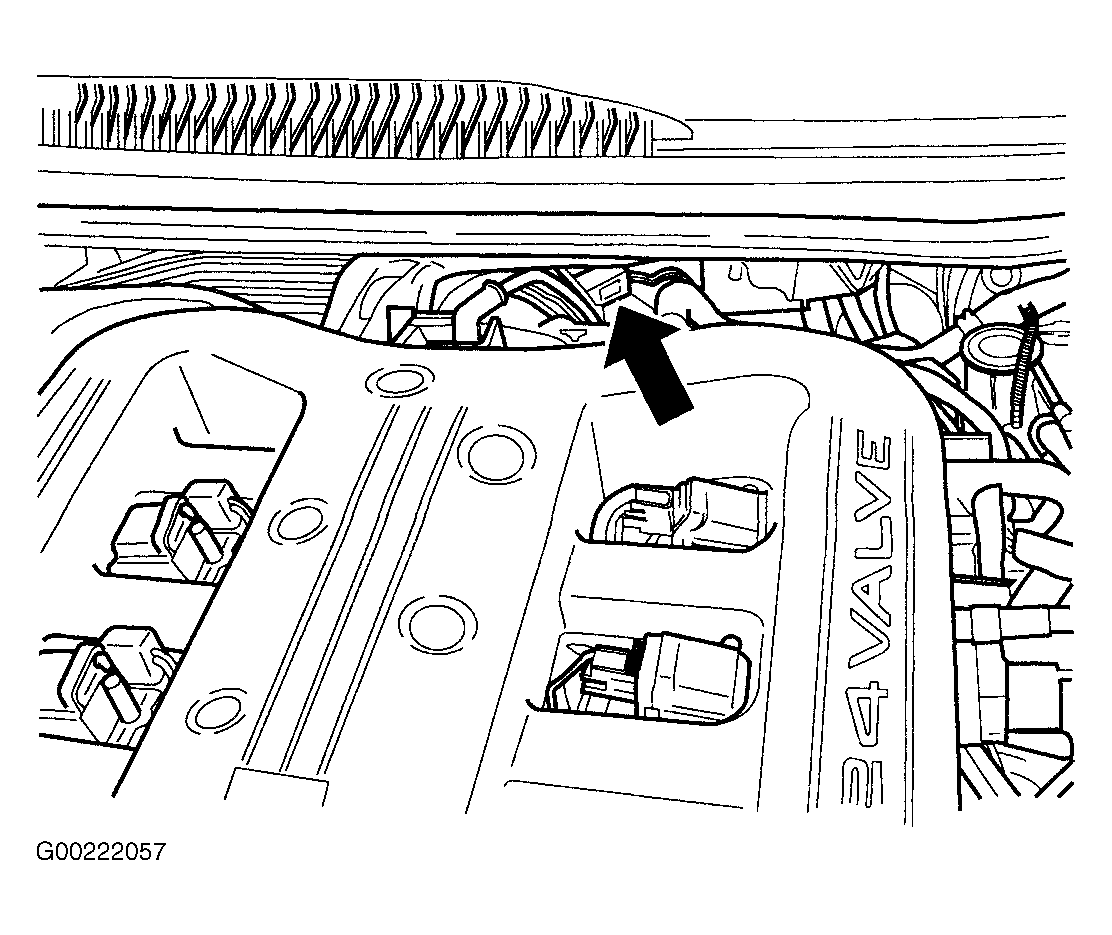

Fig 2: Locating Inlet Air Temperature Sensor (3.5L)

Courtesy of CHRYSLER CORP.
