Removal & Installation (3.5L)
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

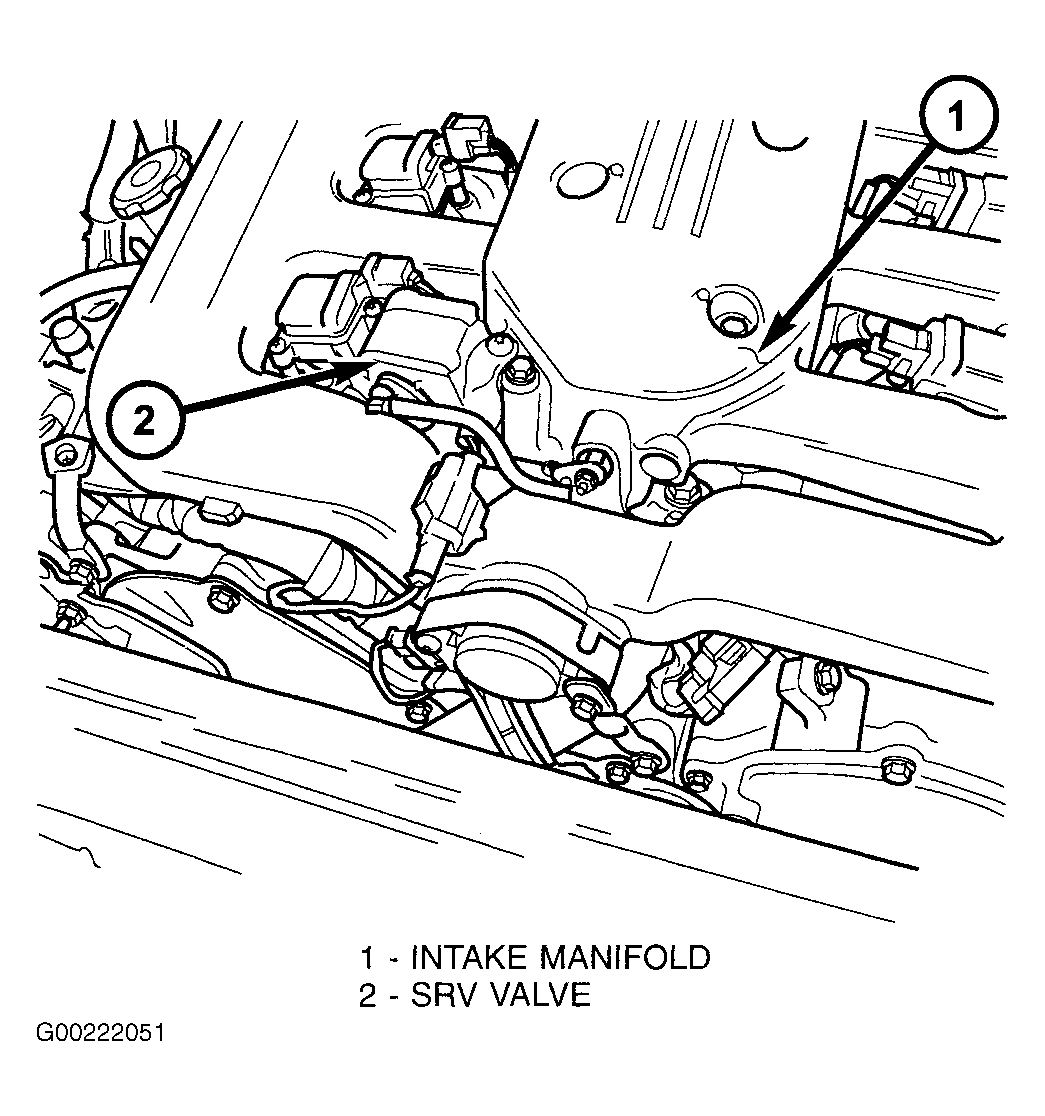

- The Short Runner Valve (SRV) is an electrical actuator attached to the intake manifold. See Figure and Fig 1 . Remove the negative battery cable. Remove link. Remove electrical connector. Remove 3 bolts. Remove valve.
- For installation, reverse removal procedure. Install 3 bolts and tighten to specification. See TORQUE SPECIFICATIONS . Install link and electrical connector. Install the negative battery cable.
