Removal & Installation (2.7L)
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

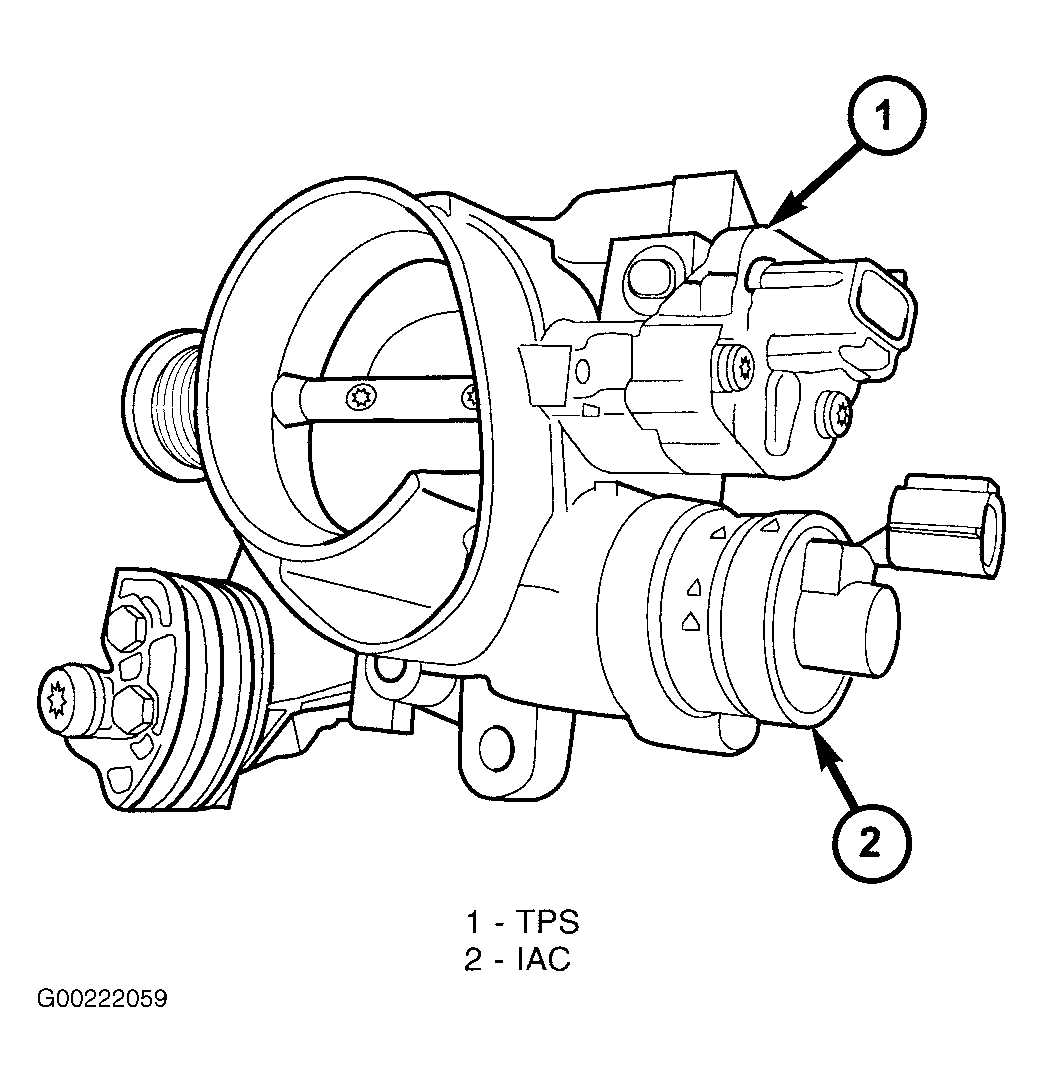

Idle Air Control (IAC) motor attaches to the side of throttle body. See Figure. Disconnect the negative battery cable. Disconnect the IAC electrical connector. Remove the IAC mounting screws. Remove the IAC with "O" ring from throttle body.
To install, reverse removal procedure using NEW "O" ring. Tighten retaining screws to specification. See TORQUE SPECIFICATIONS . Attach electrical connector to IAC. Connect the negative battery cable.
