Radiator Fan Relay Harness Connector End View (At Fan; Except 2.7L Base)

WARNING: This page is about a different car, the 2004 Chrysler Intrepid, 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

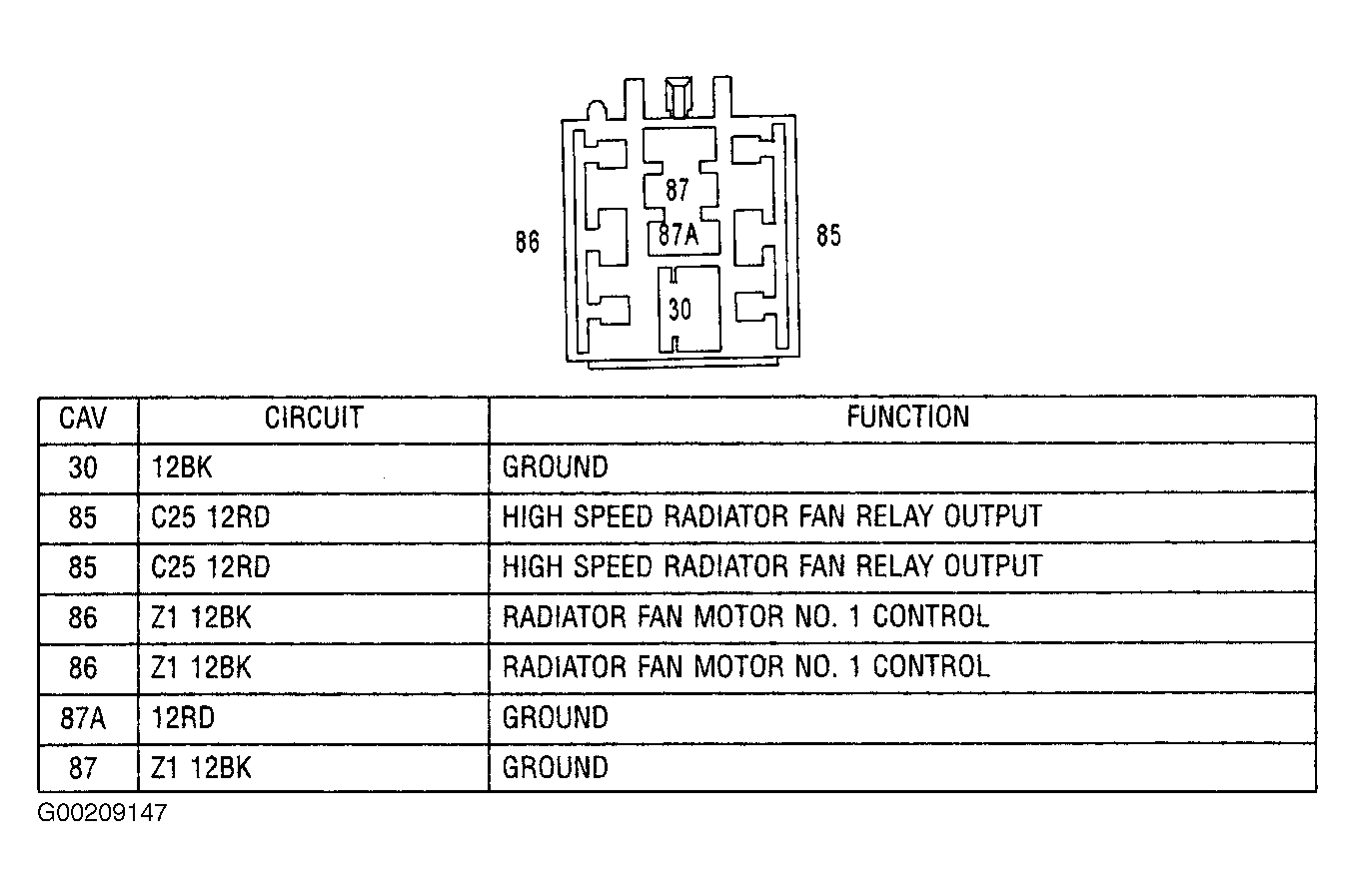

Fig 1: Identifying Radiator Fan Relay No. 1 Harness Connector (At Fan; Except 2.7L Base)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying Radiator Fan Relay No. 2 Harness Connector (At Fan; Except 2.7L Base)

Courtesy of CHRYSLER CORP.
