Rear Hub Assembly & Bearings: Installation

1. To install, reverse removal procedure. Ensure rear hub assembly is installed with thick bearing mounting flange facing downward, and thin bearing mounting flange upward. See Fig 1 .
2. Tighten bolts to specification. See TORQUE SPECIFICATIONS  table. Ensure rear hub assembly-to-rear axle bolts are tightened to specification in a crisscross pattern.

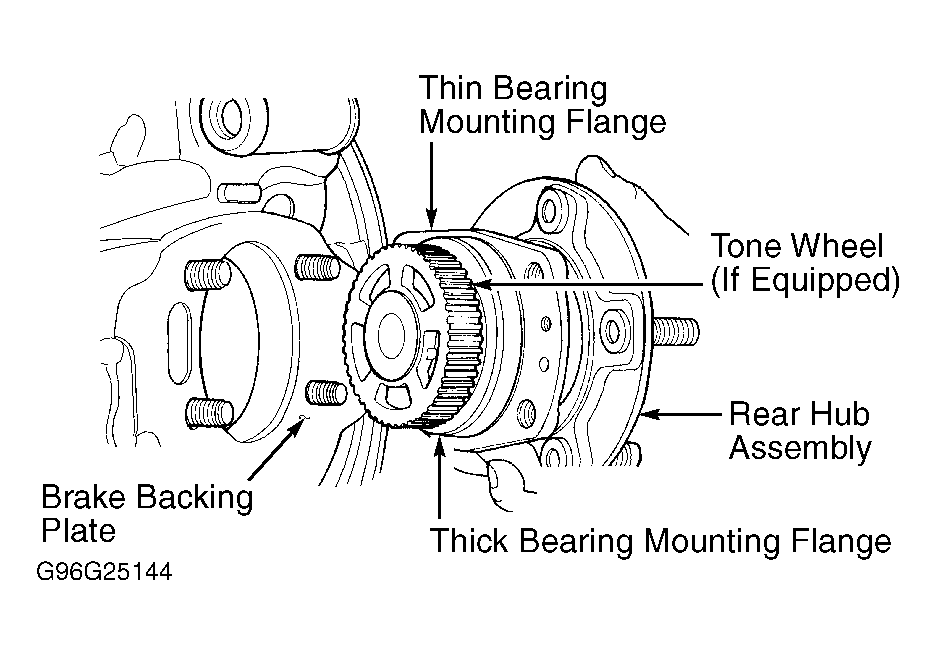

Fig 1: Installing Rear Hub Assembly

Courtesy of CHRYSLER CORP.
