Removal & Installation: CLOCKSPRING: Removal

If replacing a deployed air bag, clockspring must be replaced. Before proceeding, see SERVICE PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Position wheels in straight-ahead position. Clockspring is located behind steering wheel. See Fig 1 and Fig 2 . Remove left instrument panel end cover. Remove instrument panel center bezel and hood. Remove knee bolster.

Fig 1: Identifying Clockspring
Courtesy of CHRYSLER CORP.

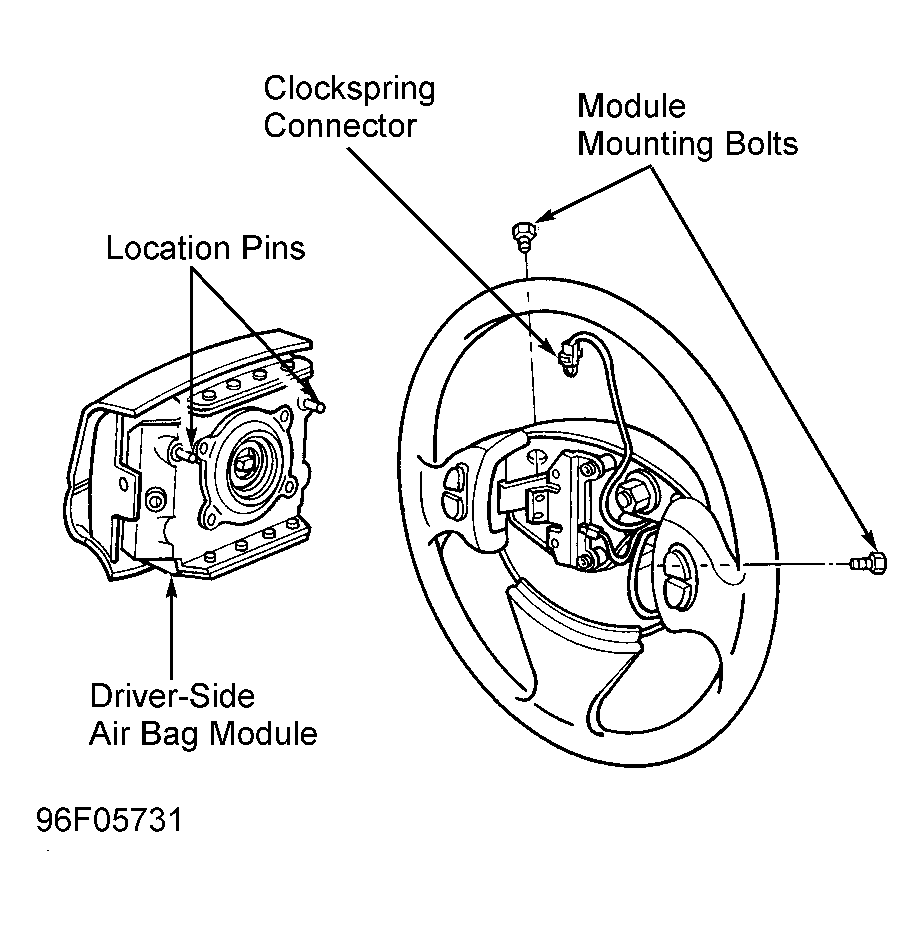

Fig 2: Removing Driver-Side Air Bag Module (Typical)
Courtesy of CHRYSLER CORP.
Remove upper and lower steering column shrouds. Remove driver-side air bag module and steering wheel. See DRIVER-SIDE AIR BAG MODULE & STEERING WHEEL . Disconnect clockspring connectors.
Remove multi-function switch. Disconnect natural 3-way and Yellow 2-way connectors from back side of clockspring. Lift clockspring locking tab to remove clockspring assembly from steering shaft. Clockspring cannot be repaired and must be replaced if faulty.
