Diagnostic Tests: Notes

NOTE: Many of the diagnostic tests of the air bag restraint system require voltage or resistance checks at various system connector terminals. See Figure .

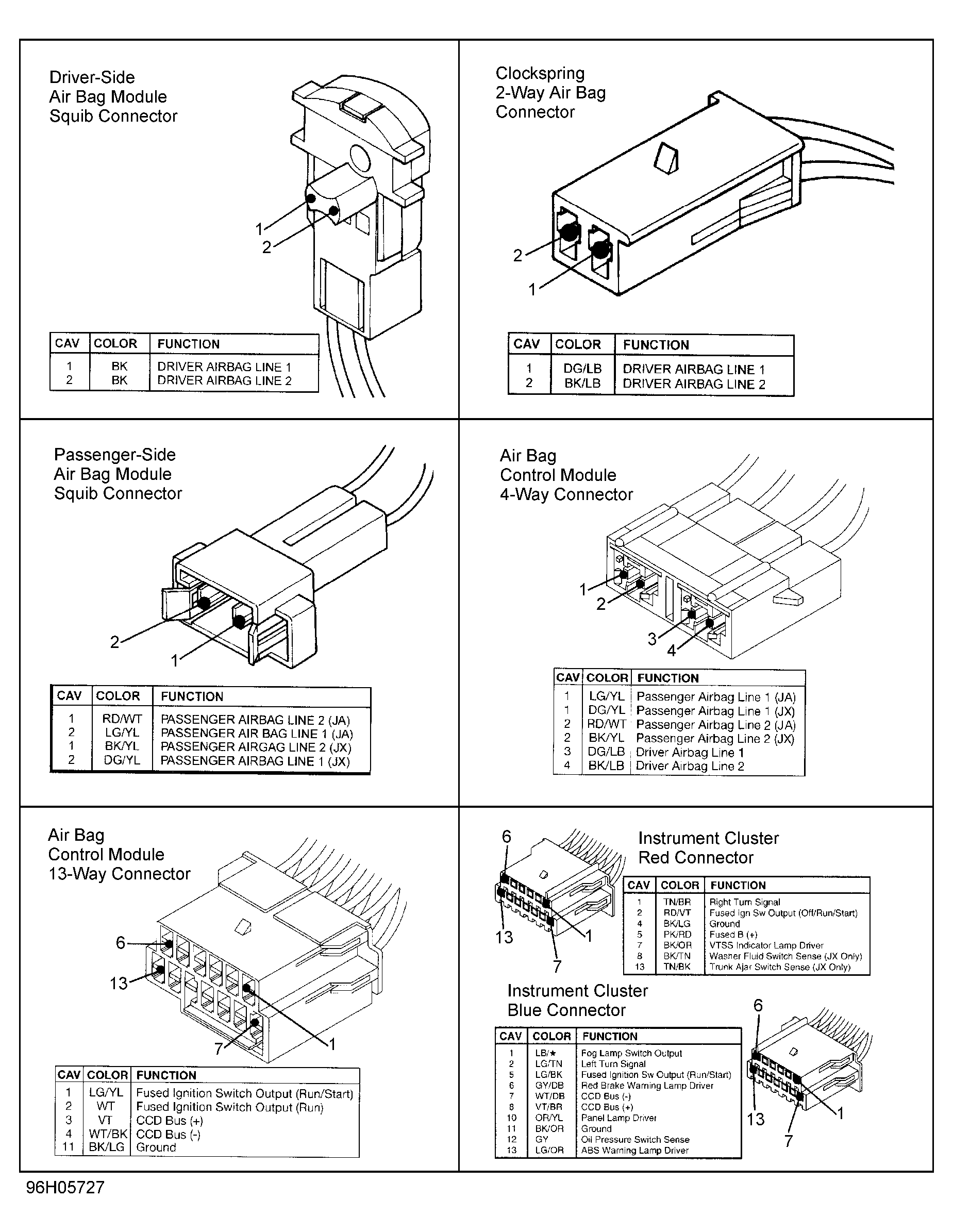

Fig 1: Air Bag Restraint System Connectors
G96H05727Courtesy of CHRYSLER CORP.
