CLOCKSPRING Centering

CAUTION: If rotating part of clockspring is not positioned properly with steering column and front wheels, clockspring failure may result. Use following procedure to center clockspring.
  1. Before proceeding, see SERVICE PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .

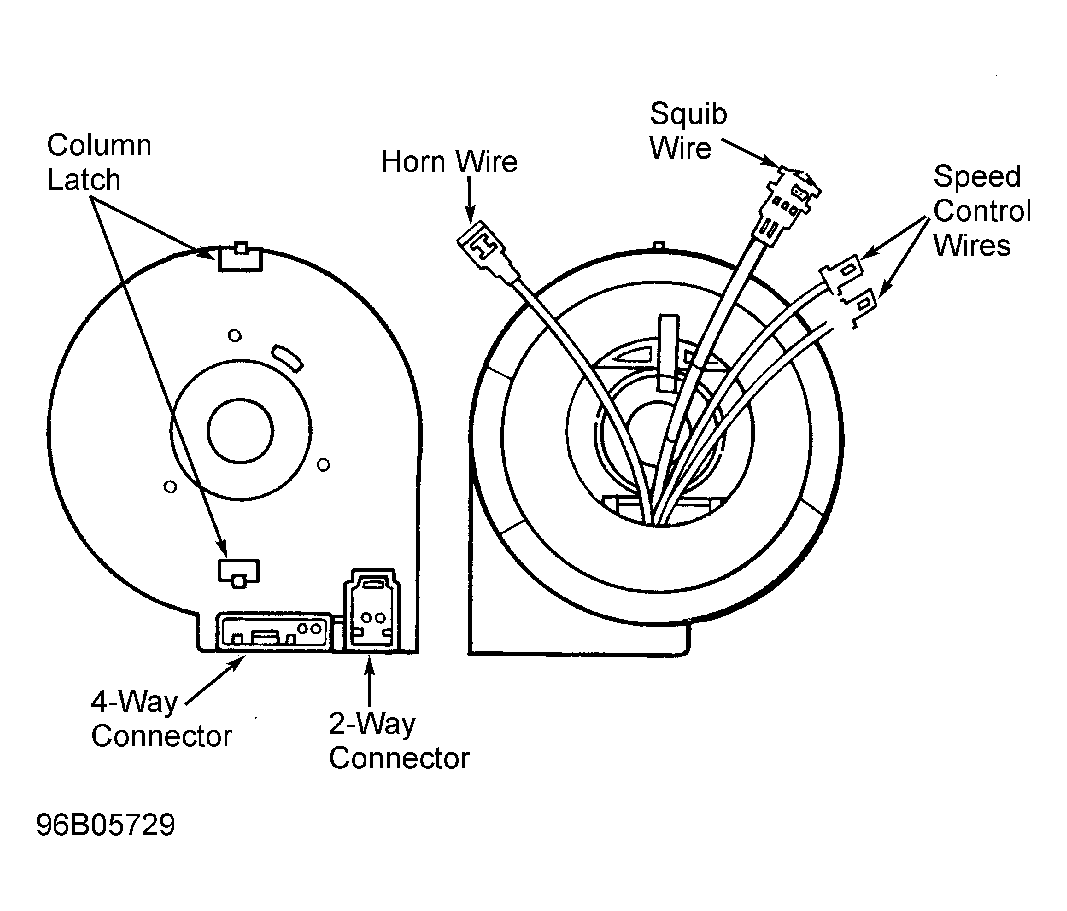

  2. With steering wheel removed, depress 2 locking pins on clockspring. Rotate clockspring until Yellow  appears in the centering window. See Figure . If clockspring is properly centered, arrow on rotor will point to centering window. Release locking pins.
  3. DO NOT connect negative battery cable at this time. Perform system operation check to ensure system is functioning properly. See SYSTEM OPERATION CHECK  .
