Removal & Installation: Speedometer: Dakota

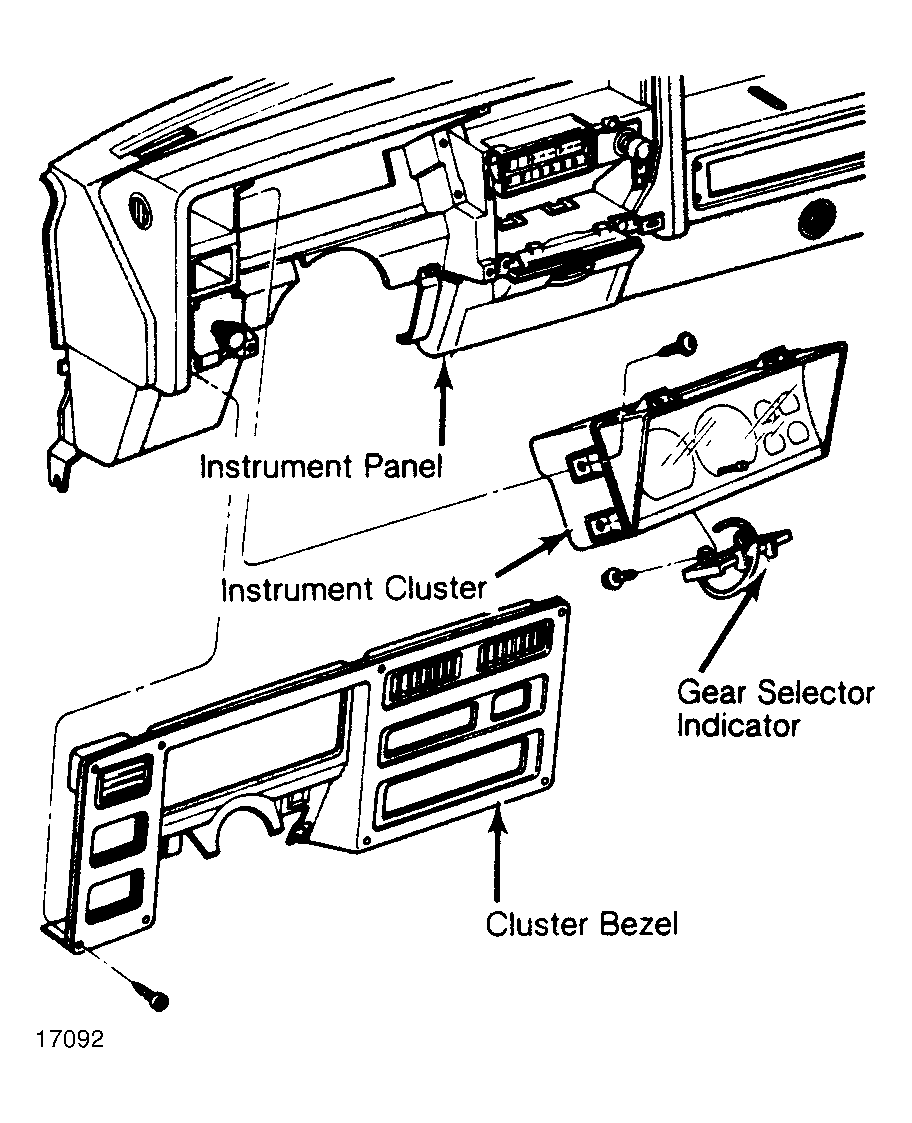

Remove cluster bezel and mask. See Figure. Remove speedometer retaining screws. Disconnect Emission Maintenance Reminder (EMR). Move speedometer rearward and disconnect speedometer cable. Remove speedometer. To install, reverse removal procedure.
