Aries, LeBaron, Reliant & 400

  1. Install switch in retaining bracket and push it forward as far as possible. Brake pedal will move slightly forward.
  2. Gently pull back on pedal, bringing striker back toward switch until pedal will go no farther. This will cause switch to ratchet backward to correct position.

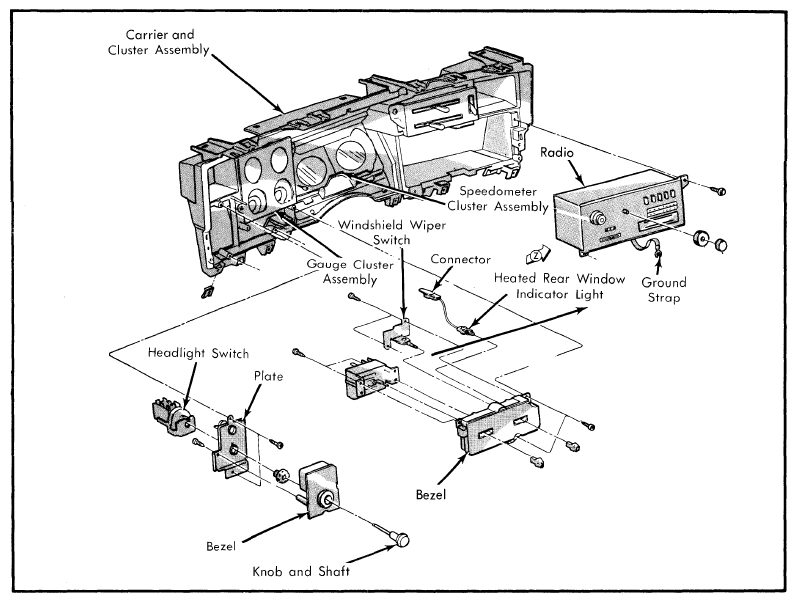

    Fig 1: Diplomat, Gran Fury & New Yorker Instrument Panel
    G09358812Courtesy of CHRYSLER GROUP, LLC
