Sun & Moon Roofs - Electric

Fig 1: Chrysler Corp. Electric Sunroof Wiring Diagram
G09308341Courtesy of CHRYSLER GROUP, LLC
Fig 2: Ford Motor Co. Electric Sunroof Wiring Diagram
G09308342Courtesy of FORD MOTOR CO.

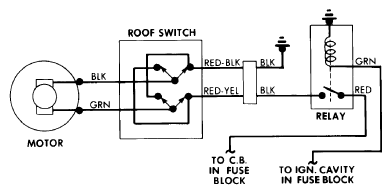

Fig 3: General Motors Sunroof Wiring Diagram (Buick Shown, Others Similar)
G09308343Courtesy of GENERAL MOTORS COMPANY
