Wiring Diagrams - Turn Signal & Hazard Flashers
>>
Wiring Diagrams
>>
Turn Signal & Hazard Flashers
Turn Signal & Hazard Flashers

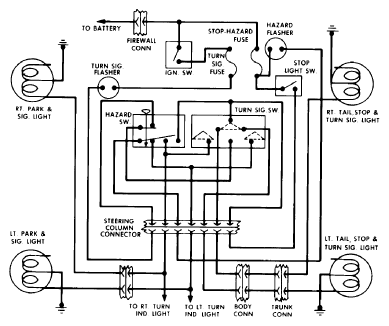

Fig 1: Typical Turn Signal and Hazard Flasher System Wiring Diagram Refer to CHASSIS WIRING DIAGRAMS in this section for individual Car Models
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
