Removal & Installation

  1. Remove instrument cluster trim pane. Remove screws and digital clock. See Fig 1 .
  2. Install digital clock with screws. Tighten digital clock screws to 2.5 N.m (22 INCH Lbs.). Install instrument cluster trim panel.

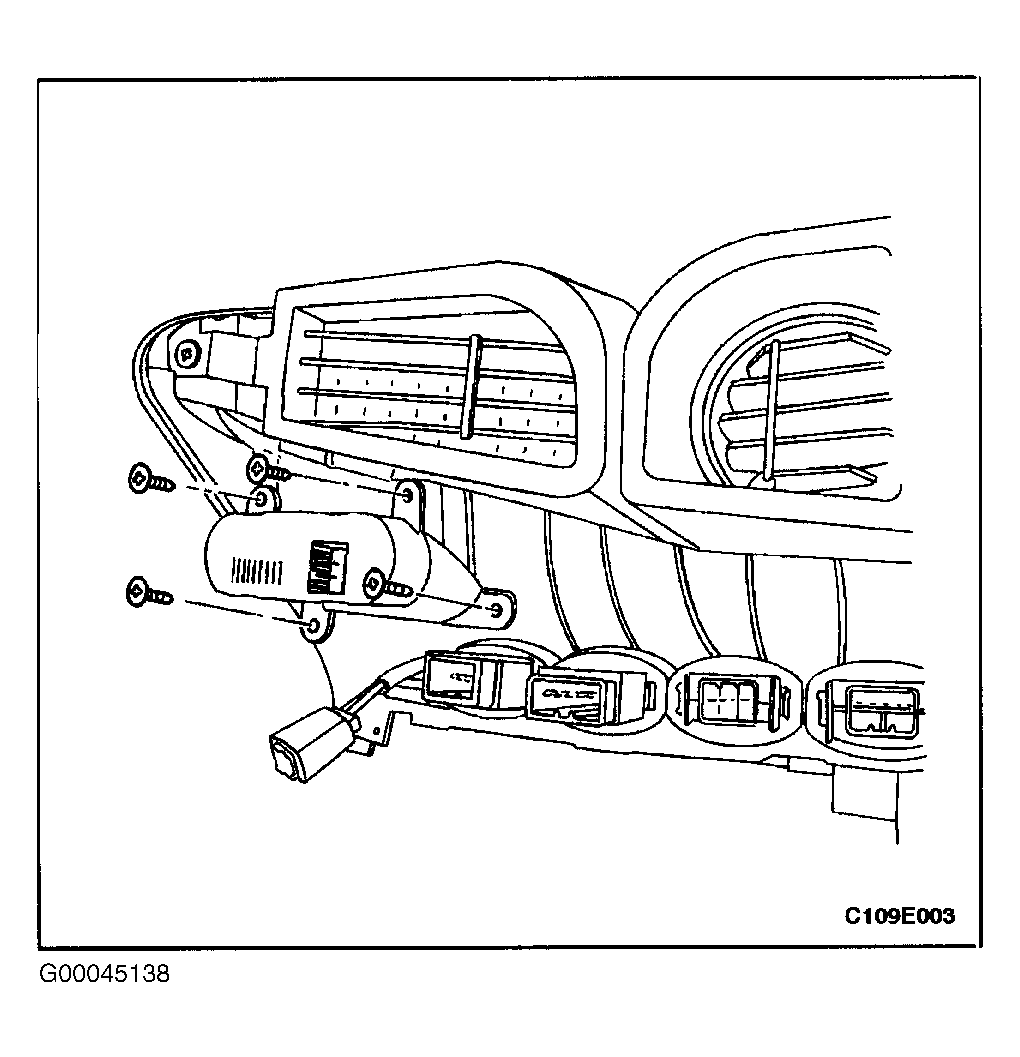

Fig 1: Digital Clock Removal & Installation
G00045138Courtesy of DAEWOO MOTOR AMERICA, INC.
