Stop Lamp Warning Circuit Diagnosis

Fig 1: Stop Lamp Warning Circuit Diagnosis (1 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

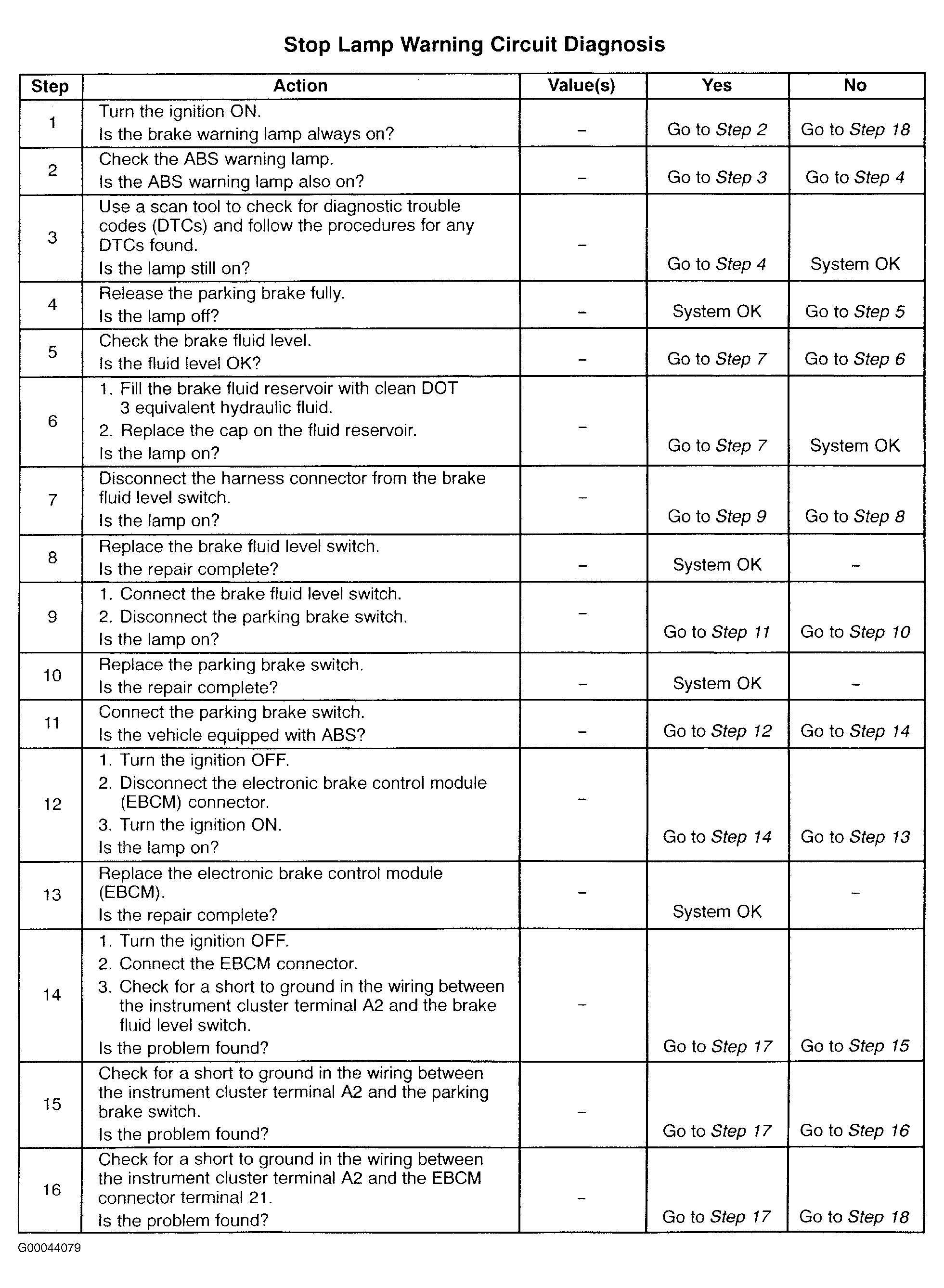

Fig 2: Stop Lamp Warning Circuit Diagnosis - Steps 1-16 (2 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

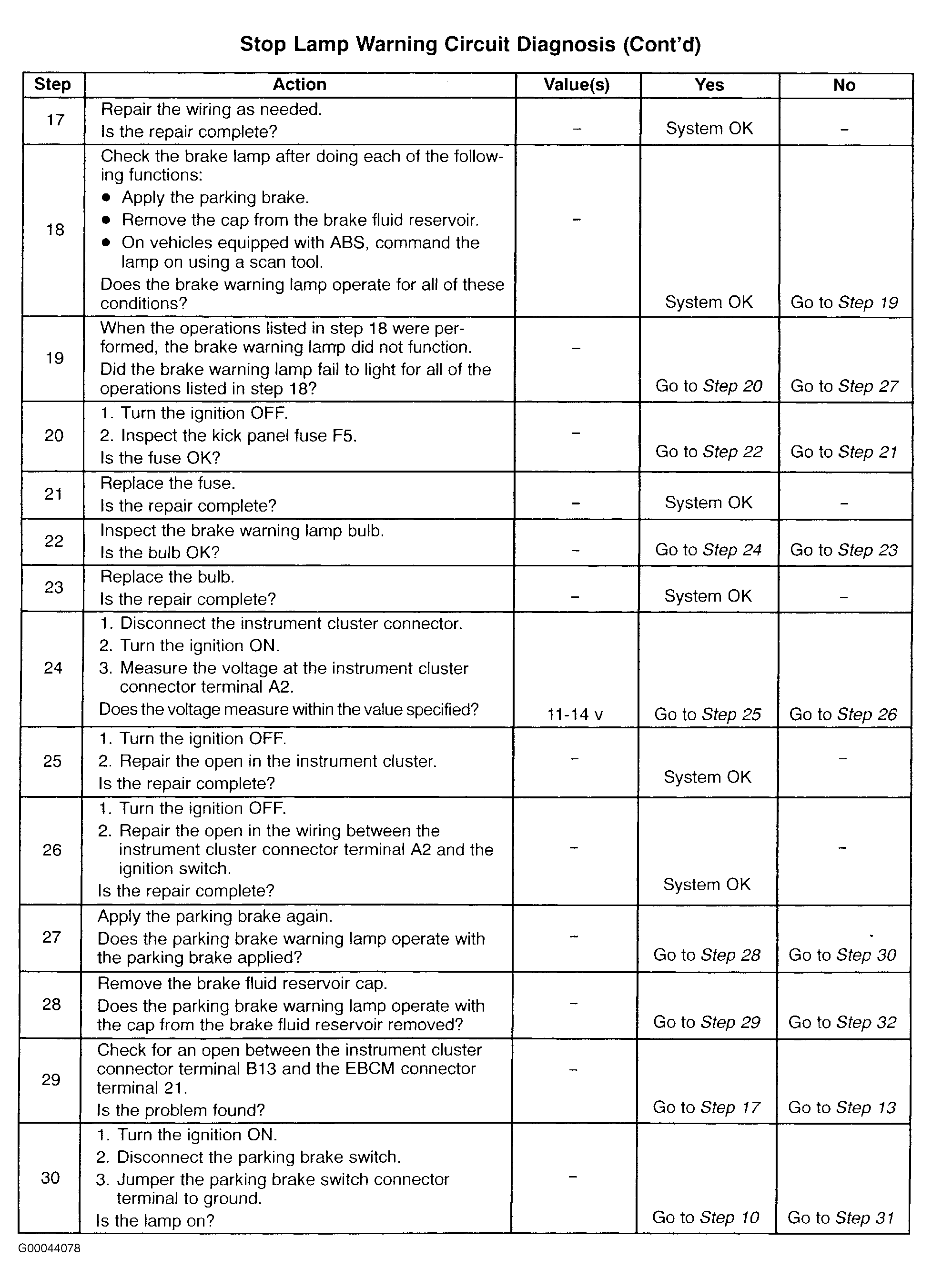

Fig 3: Stop Lamp Warning Circuit Diagnosis - Steps 17-30 (3 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 4: Stop Lamp Warning Circuit Diagnosis - Steps 31-35 (4 Of 4)

Courtesy of DAEWOO MOTOR AMERICA, INC.
