Instrument Panel Wiring Harness

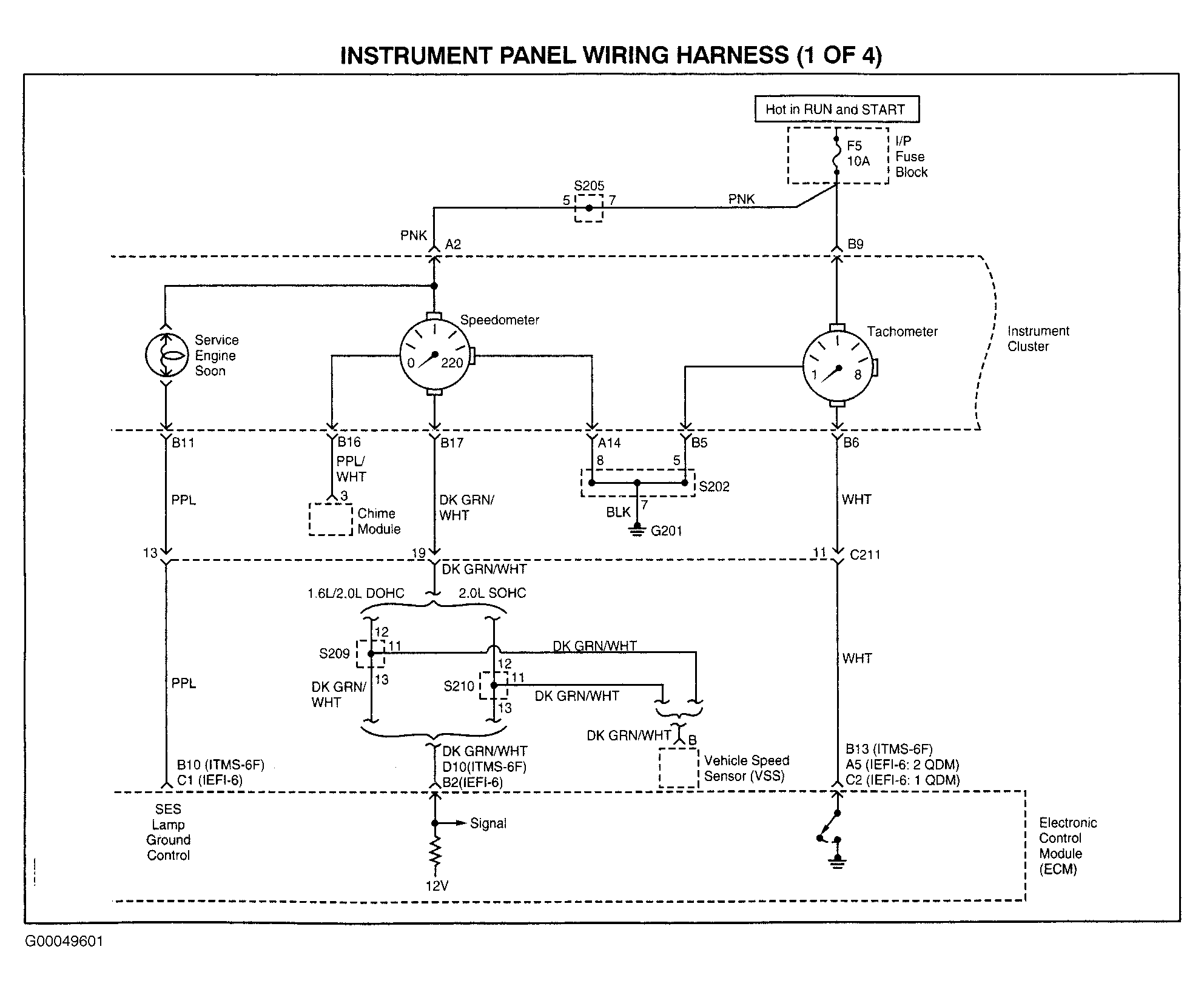

Fig 1: Instrument Panel Wiring Diagram (1 Of 4)
Courtesy of DAEWOO MOTOR AMERICA, INC.

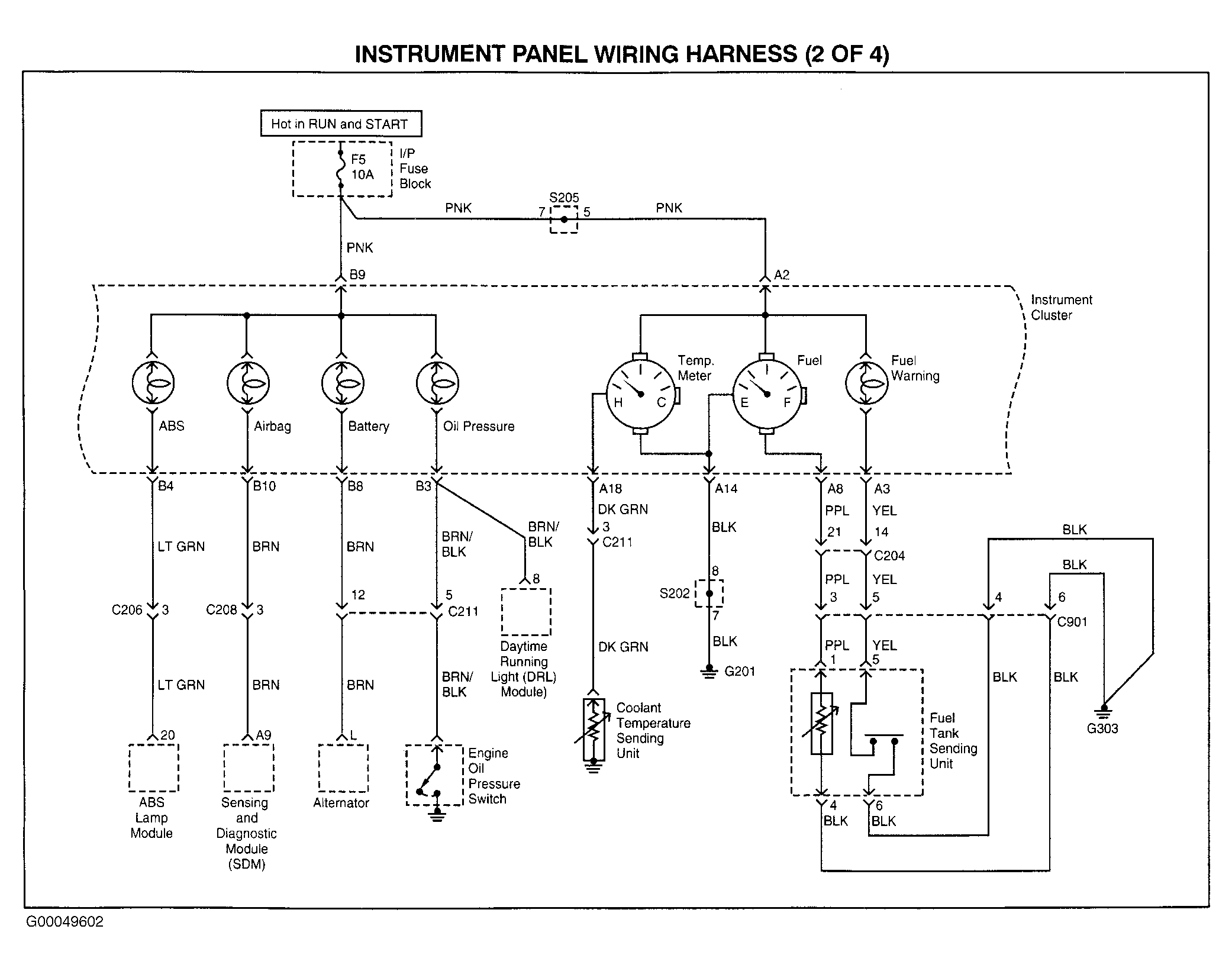

Fig 2: Instrument Panel Wiring Diagram (2 Of 4)
Courtesy of DAEWOO MOTOR AMERICA, INC.

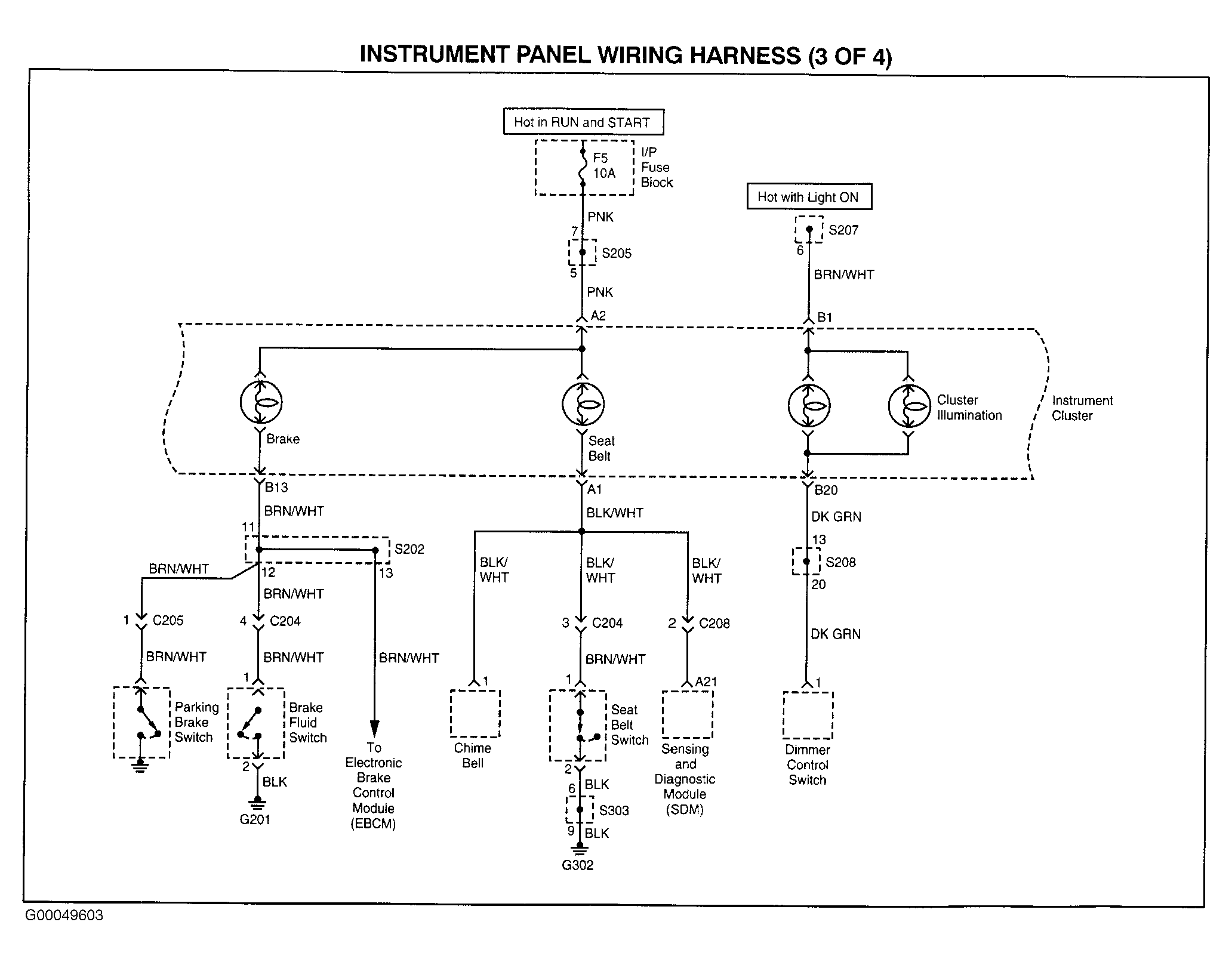

Fig 3: Instrument Panel Wiring Diagram (3 Of 4)
Courtesy of DAEWOO MOTOR AMERICA, INC.

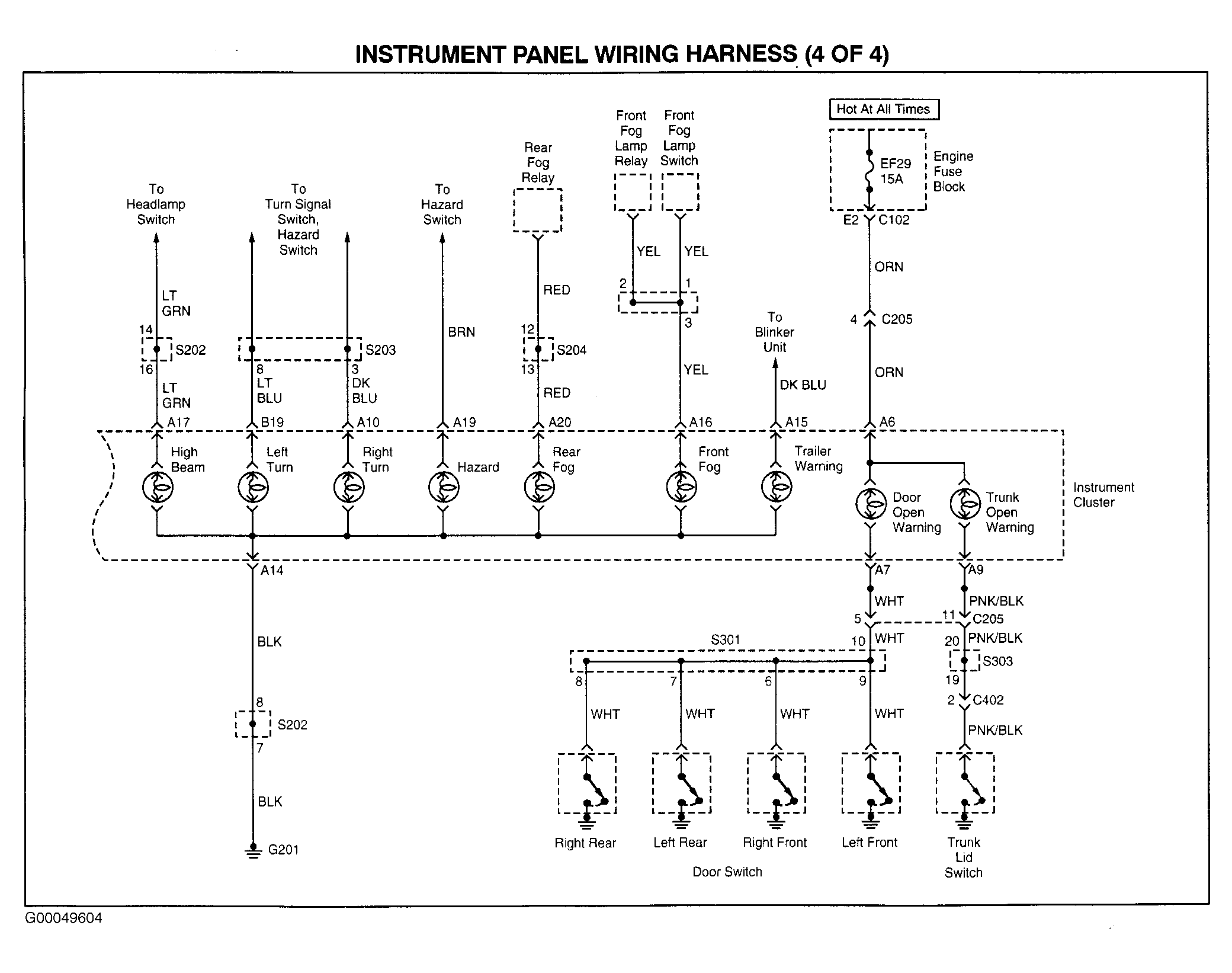

Fig 4: Instrument Panel Wiring Diagram (4 Of 4)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
