Instrument Panel Illumination
Instrument Panel Illumination

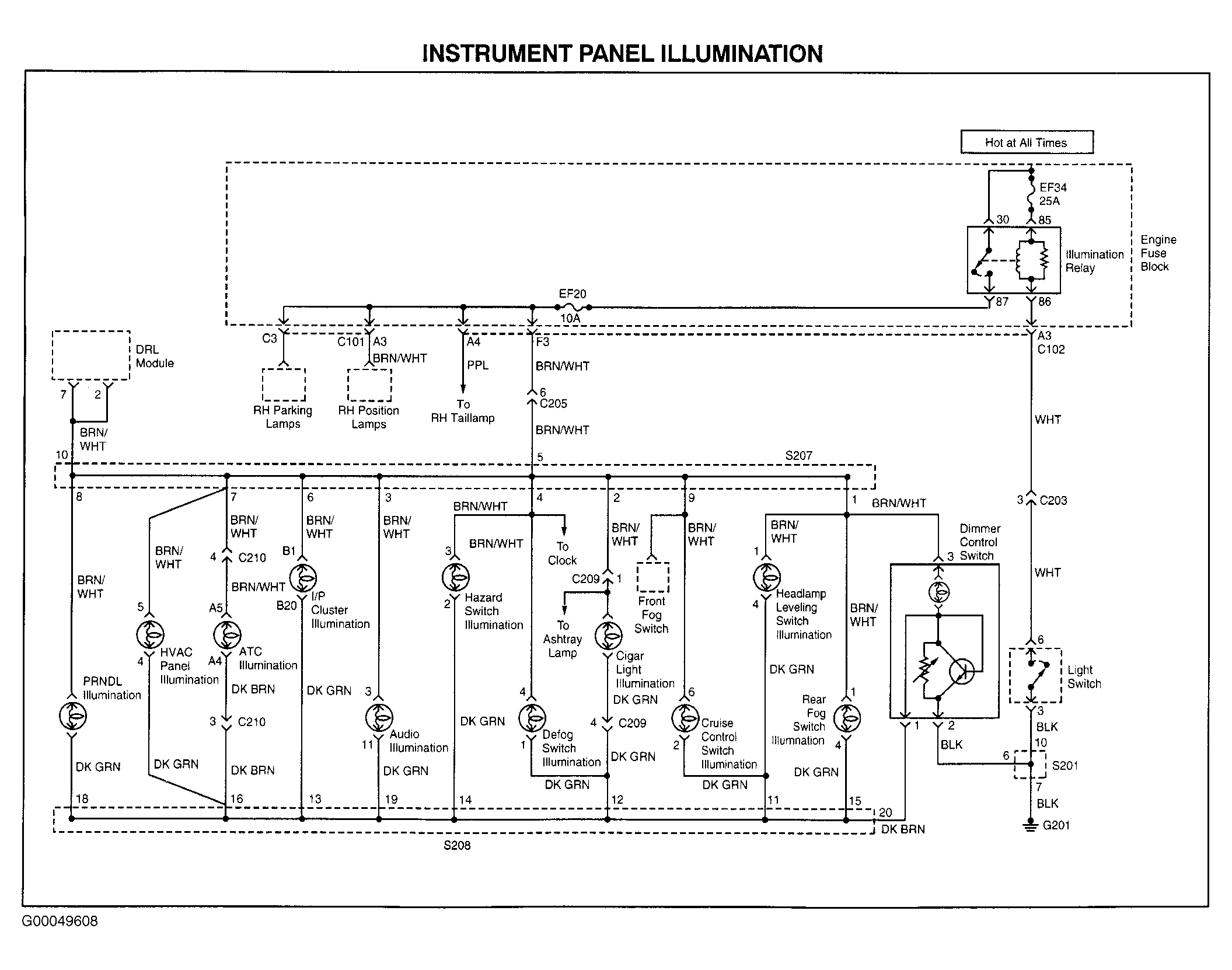

Fig 1: Instrument Panel Illumination Wiring Diagram
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
