Home >> Daewoo >> 2000 >> Nubira SE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Wiring Diagrams >> Digital Clock

Digital Clock

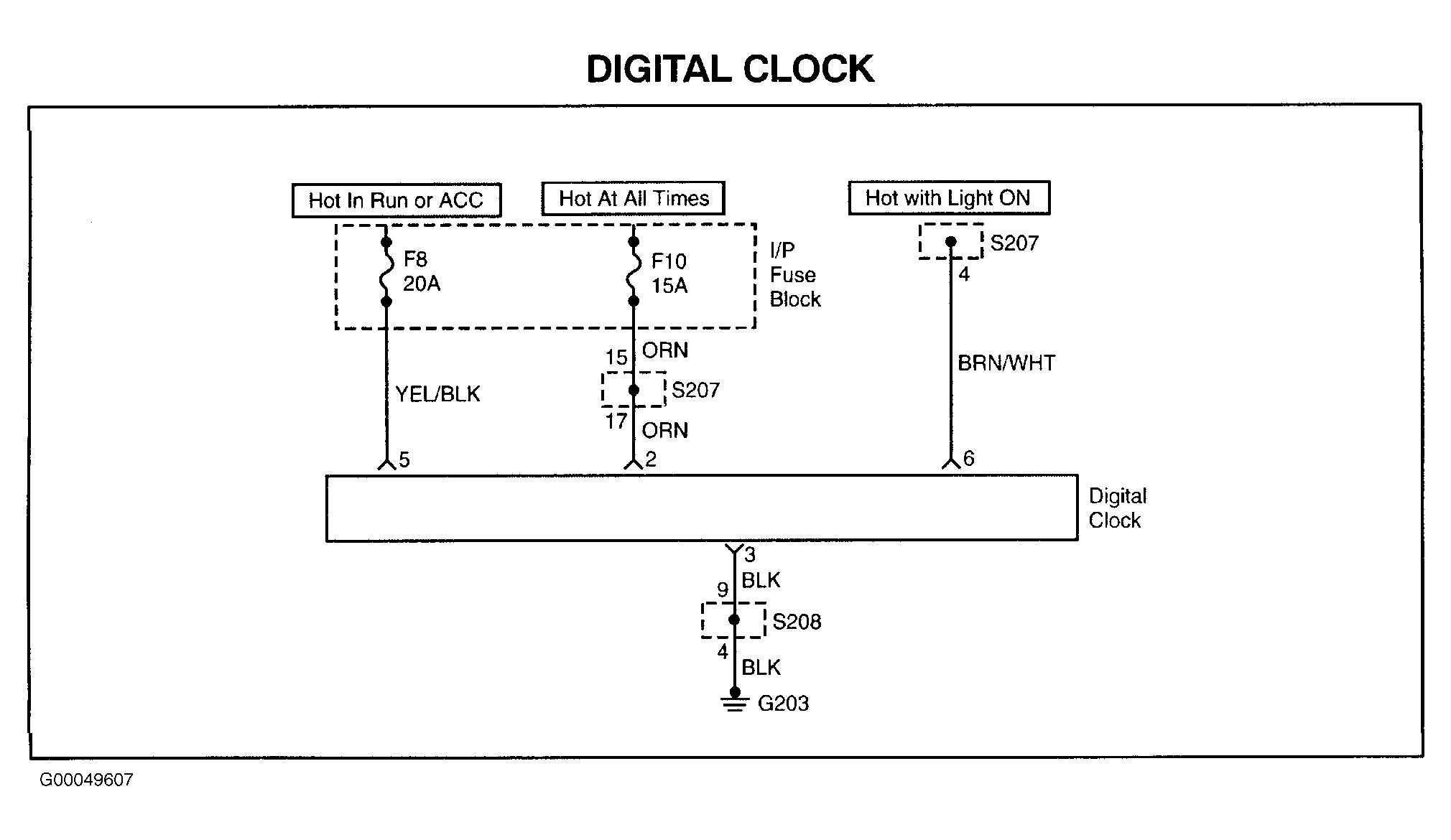

Fig 1: Digital Clock Wiring Diagram

G00049607

Courtesy of DAEWOO MOTOR AMERICA, INC.
