LEMON Manuals
: Even more car manuals for everyone
Home
>>
Daewoo
>>
2000
>>
Nubira SE, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Wiring Diagrams
>>
Cigar Lighter
Cigar Lighter

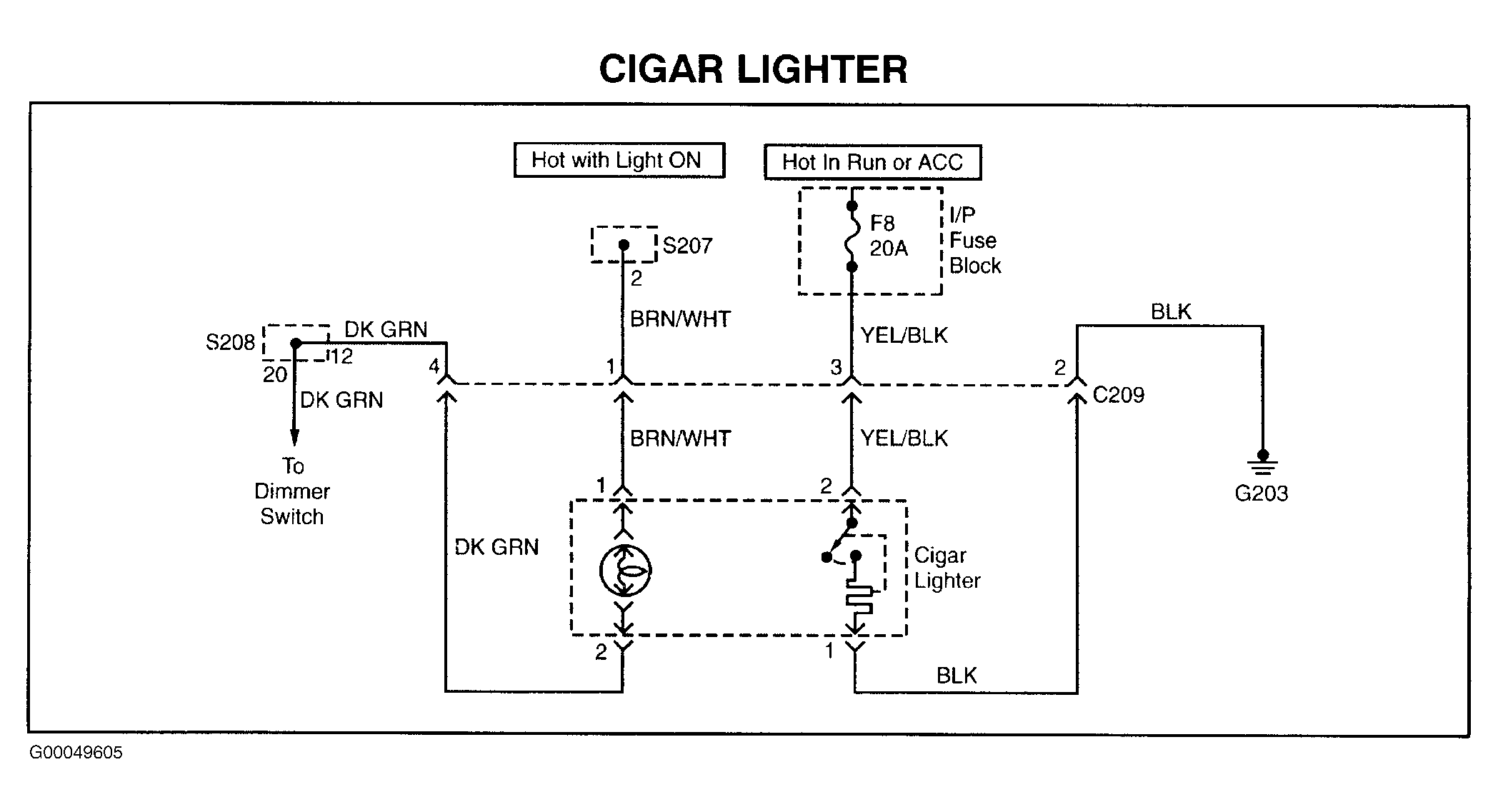

Fig 1: Cigar Lighter Wiring Diagram
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
