Instrument Panel Illumination: Notes

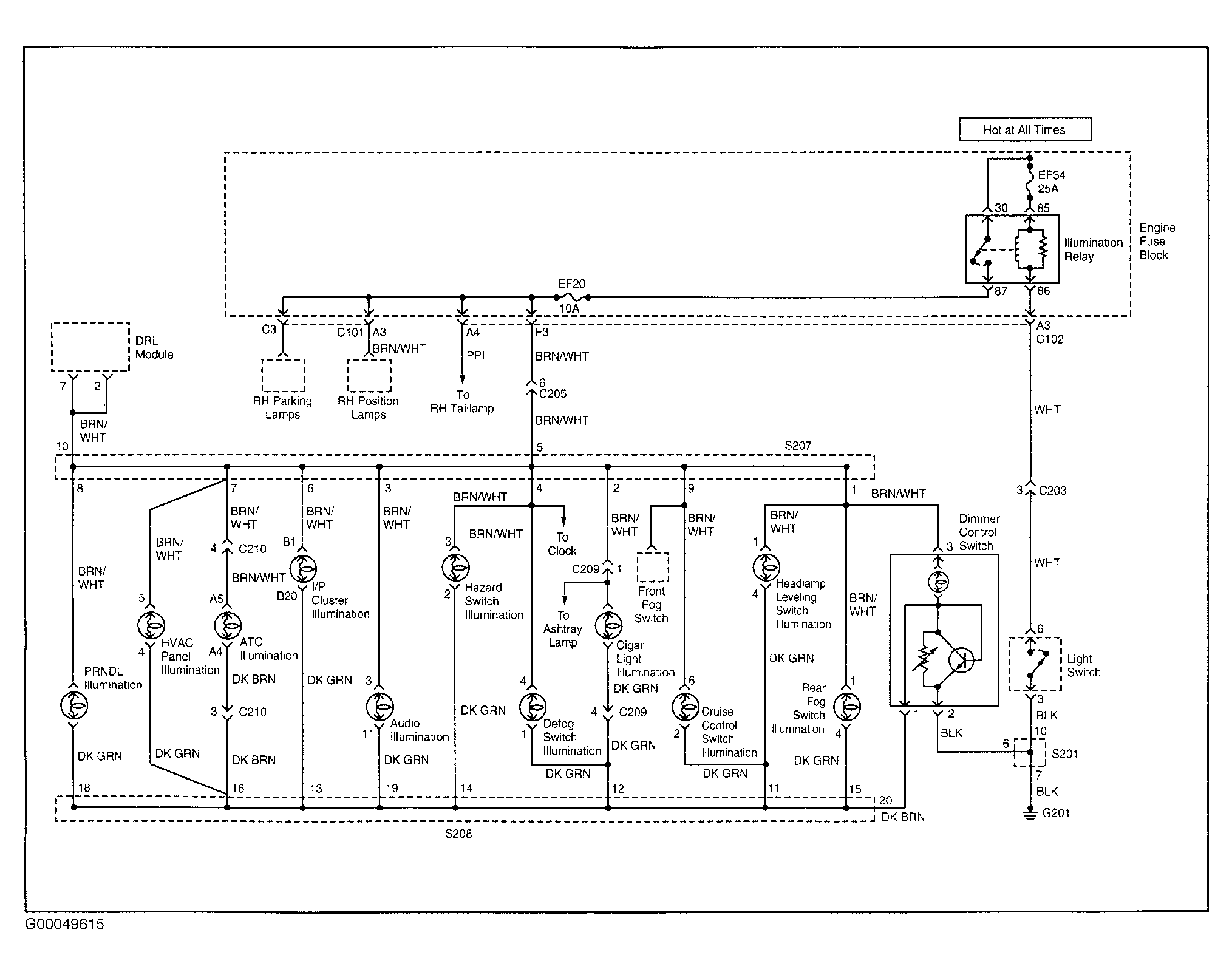

Fig 1: Instrument Panel Circuit Diagram

G00049615

Courtesy of DAEWOO MOTOR AMERICA, INC.
