Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Lamps Okay

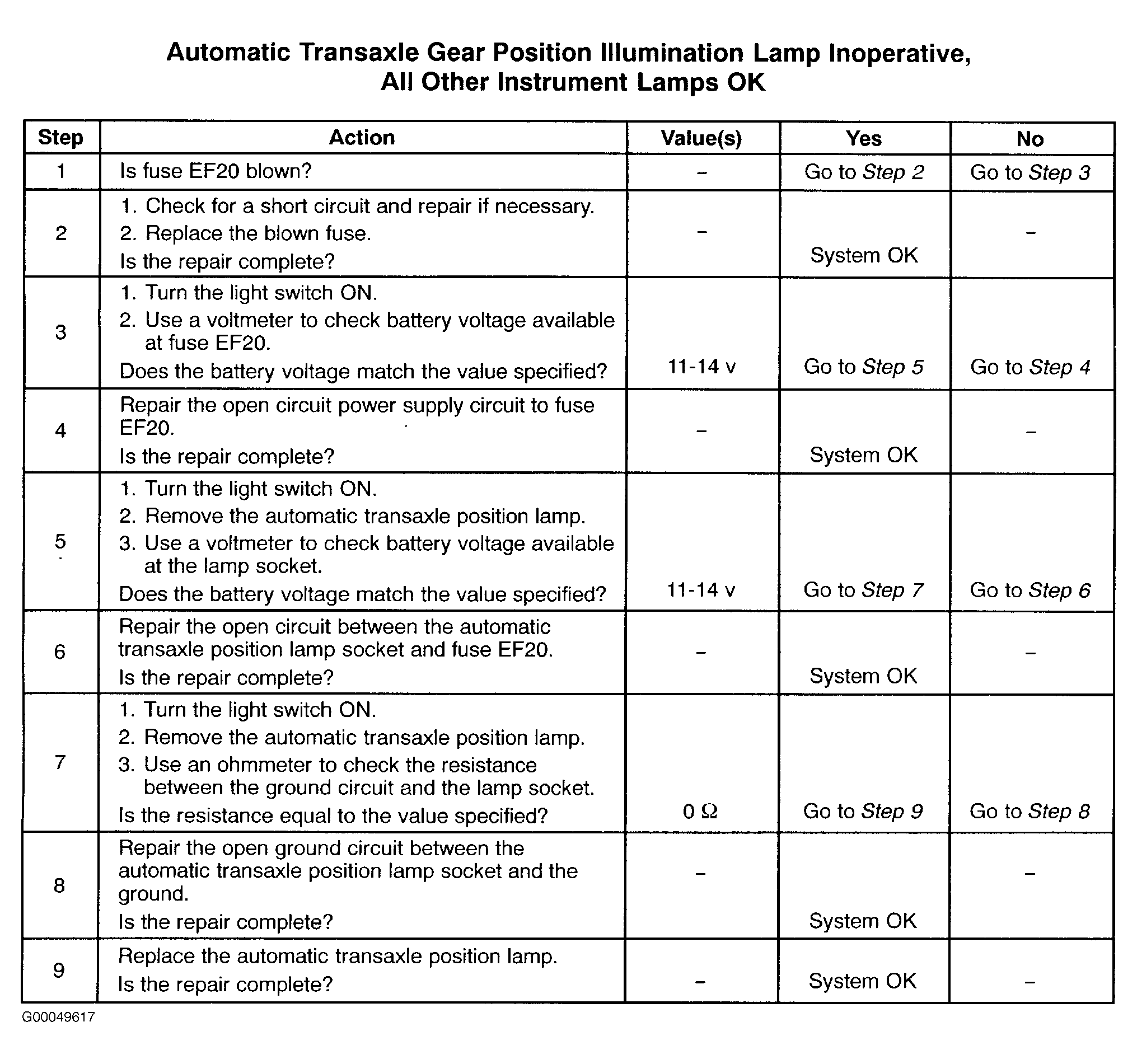

Fig 1: Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Others Okay
G00049617Courtesy of DAEWOO MOTOR AMERICA, INC.
