Instrument Panel: Removal

Disconnect negative battery cable. Remove glove box. Remove floor console. Remove audio system. Remove lower cover. Remove instrument cluster. Remove knee bolster trim panel. See Fig 2 .
Remove kick panels. Disconnect sun sensor electrical connector. Remove bolts and instrument panel assembly. See Fig 4 . Remove bolts and passenger air-bag module. See Fig 3 . Remove screws and air-duct. See Fig 6 . Remove vent. Remove Instrument panel from body.

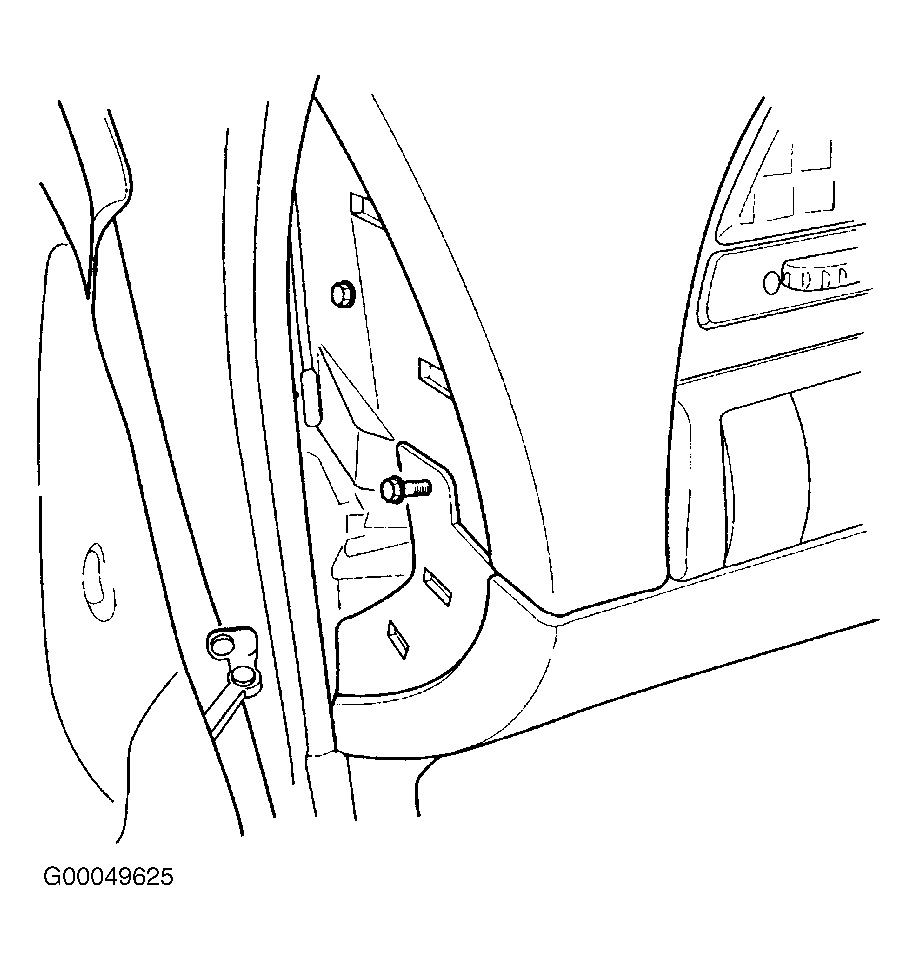

Fig 1: Instrument Panel Screw Identification

G00049625

Courtesy of DAEWOO MOTOR AMERICA, INC.

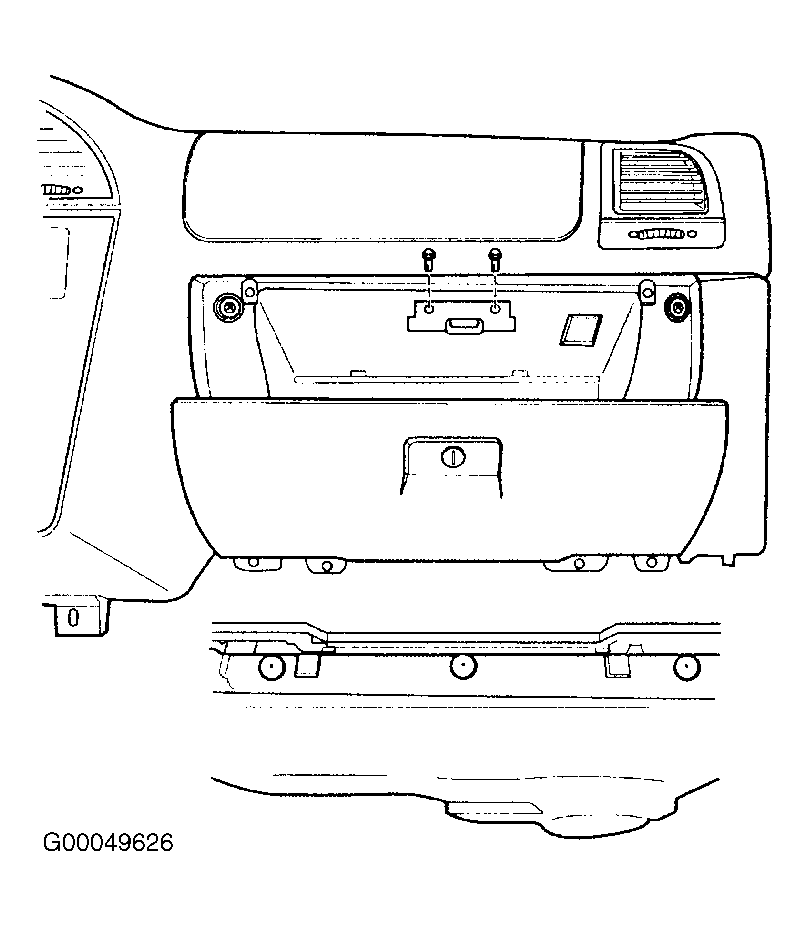

Fig 2: Knee Bolster Trim Panel & Glove Box Latch Removal & Installation

G00049626

Courtesy of DAEWOO MOTOR AMERICA, INC.

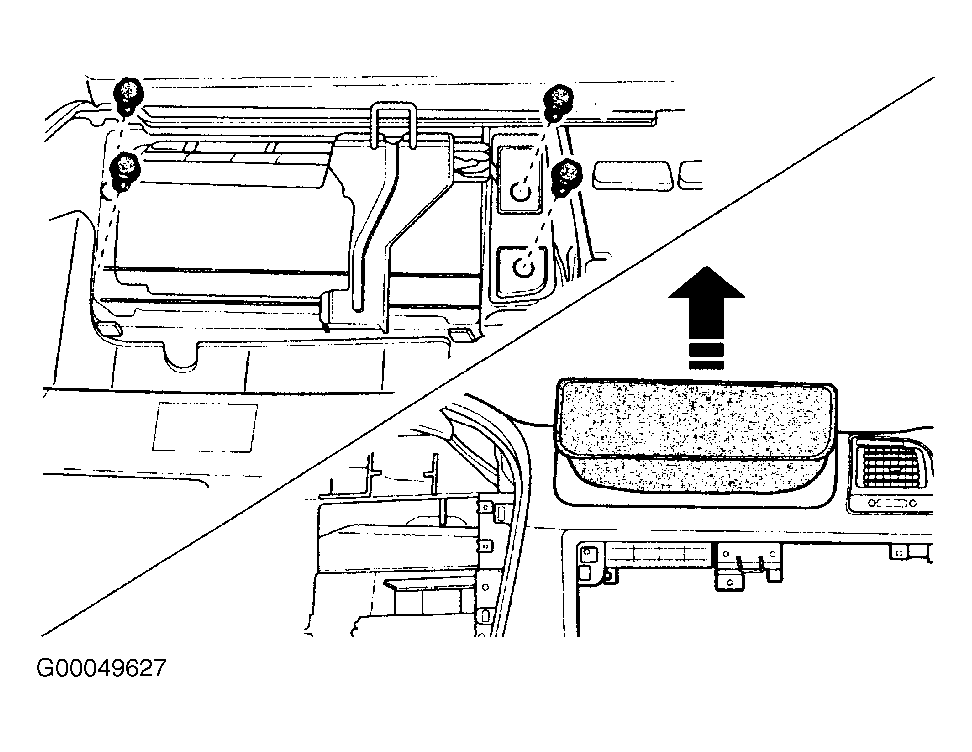

Fig 3: Removing Air Bag Module

G00049627

Courtesy of DAEWOO MOTOR AMERICA, INC.

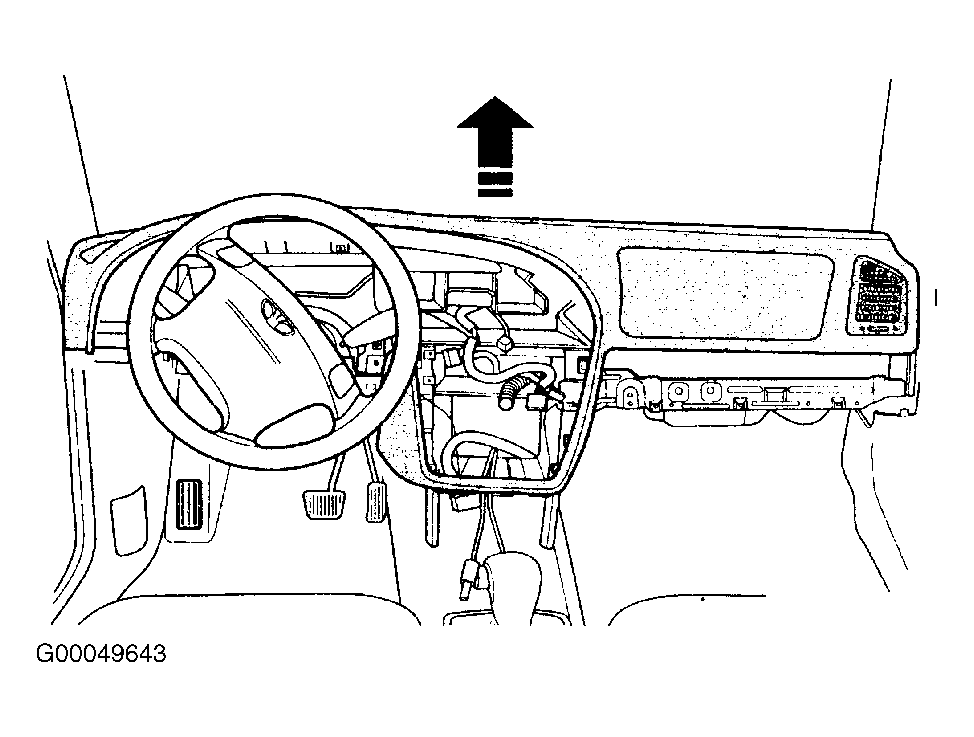

Fig 4: Instrument Panel Assembly Removal & Installation

G00049643

Courtesy of DAEWOO MOTOR AMERICA, INC.

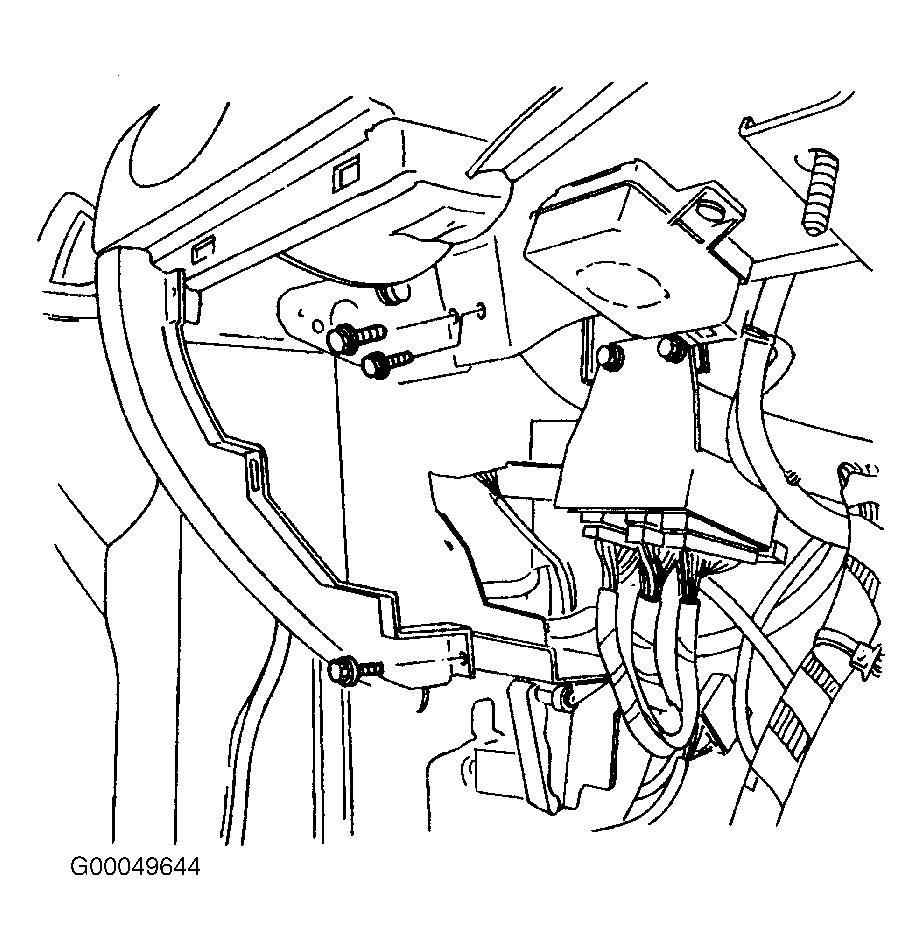

Fig 5: Removing Instrument Panel Brackets

G00049644

Courtesy of DAEWOO MOTOR AMERICA, INC.

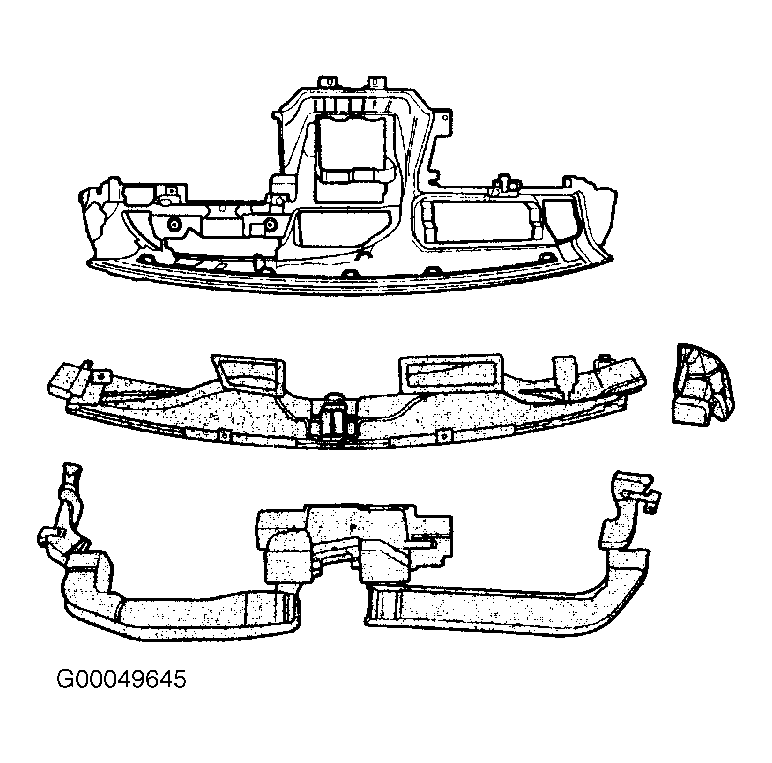

Fig 6: Air Duct Removal & Installation

G00049645

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 7: Vent Removal

G00049646

Courtesy of DAEWOO MOTOR AMERICA, INC.

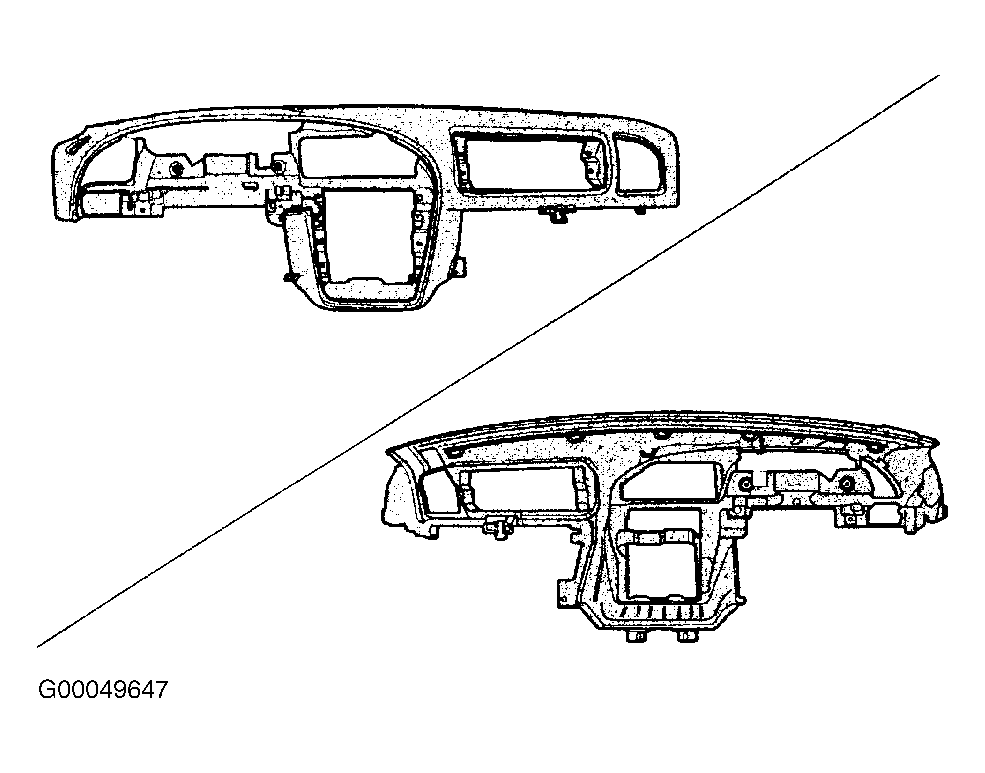

Fig 8: Instrument Panel

G00049647

Courtesy of DAEWOO MOTOR AMERICA, INC.

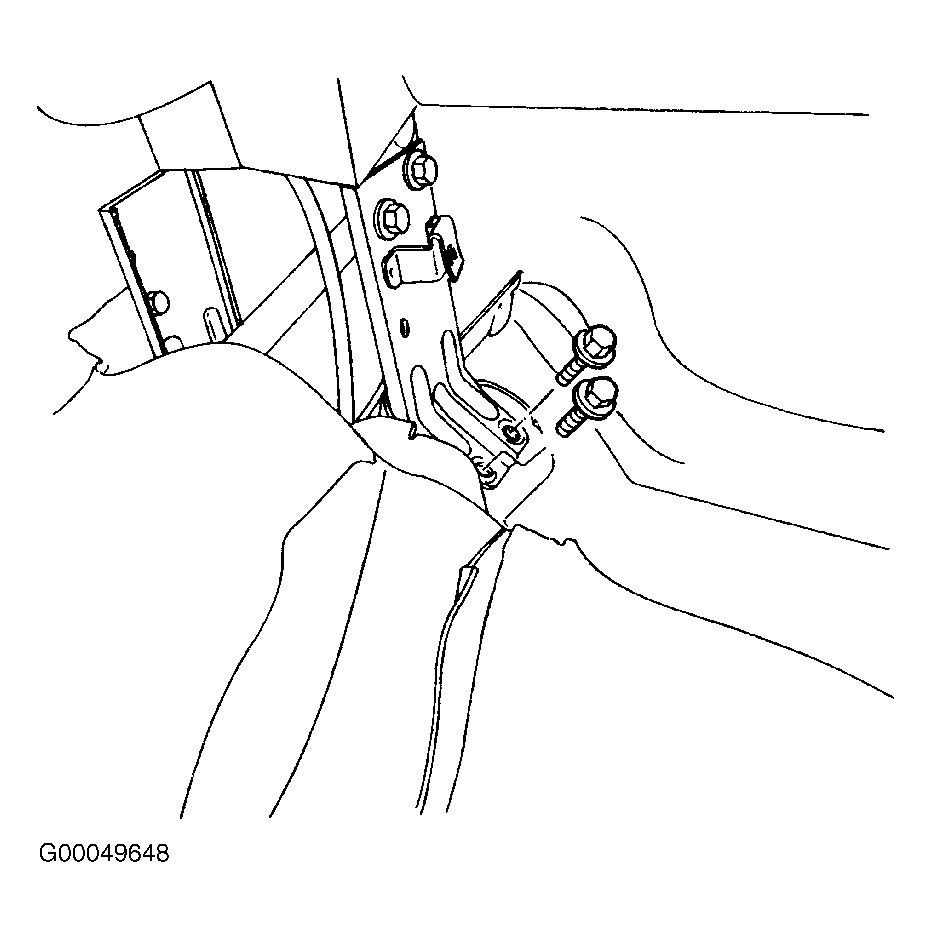

Fig 9: Removing Bracket

G00049648

Courtesy of DAEWOO MOTOR AMERICA, INC.
