Removal & Installation

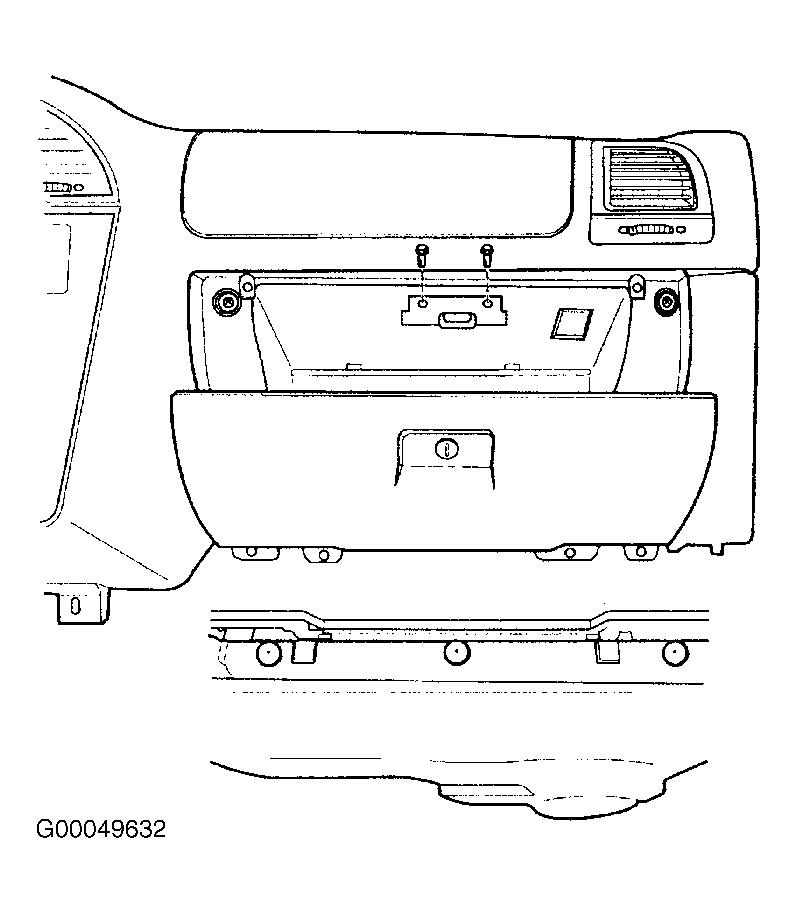

- Remove screws of shroud side trim. Remove clip and Aircon cover. Open glove box. Remove screws and glove box.
- Position glove box in instrument panel. Install glove box with screws. Install side trim Aircon cover and shroud. Tighten glove box screws to 5.5 N.m (49 INCH Lbs.).
